Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
YONGSHUN
-
Model Number:
-
ZJQ
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
3-1088hp
-
Cable Length:
-
Customer requirement
-
Outlet Size:
-
40-300mm
-
Power:
-
2.2-800kw
-
Flow:
-
8-2333m³/h
-
Head:
-
4-134m
-
Speed:
-
980-1400r/min
-
Frequency:
-
50Hz or customized
-
Temperature:
-
≤60℃
-
PH:
-
4-10
-
Material:
-
high chromium alloy or customized
-
Color:
-
customer requirement
-
Certification:
-
ISO9001
Quick Details
-
Application:
-
Commercial Buildings, Food and Beverage Industry, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Wastewater Transport and Flood Control, wastewater treatment, Metallurgy, Coal, Electric power, chemical industry, environmental protection, River dredging, Sand pumping, municipal engineering, shipbuilding
-
Pressure:
-
High Pressure
-
Voltage:
-
50Hz/60Hz/380V/415V/660V/1140V
-
Warranty:
-
2 years
-
Brand Name:
-
YONGSHUN
-
Model Number:
-
ZJQ
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
3-1088hp
-
Cable Length:
-
Customer requirement
-
Outlet Size:
-
40-300mm
-
Power:
-
2.2-800kw
-
Flow:
-
8-2333m³/h
-
Head:
-
4-134m
-
Speed:
-
980-1400r/min
-
Frequency:
-
50Hz or customized
-
Temperature:
-
≤60℃
-
PH:
-
4-10
-
Material:
-
high chromium alloy or customized
-
Color:
-
customer requirement
-
Certification:
-
ISO9001
Products Description

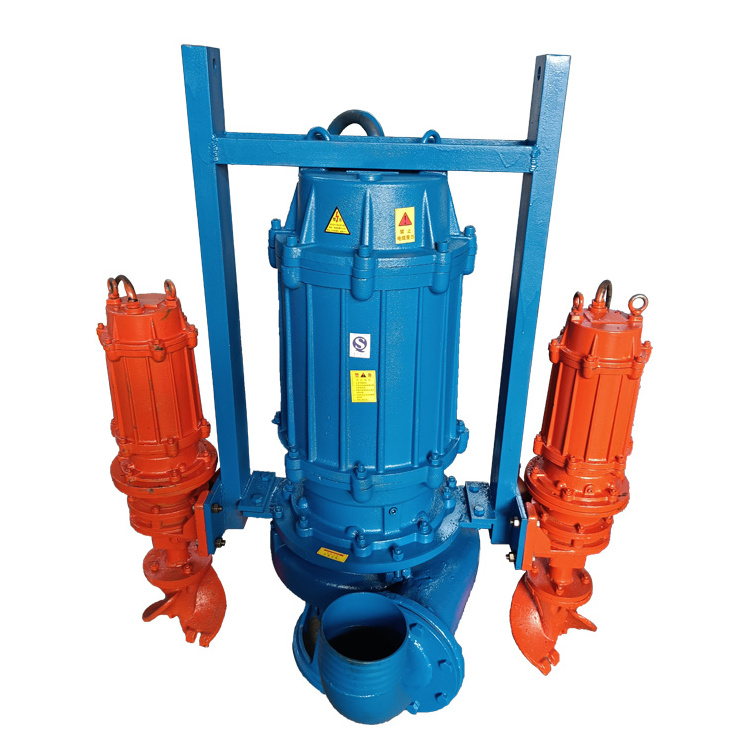

The
ZJQ pump is a
single stage, single suction, vertical submersible slurry
pump. This product is easy to install and move, has high slag extraction efficiency, and can operate safely for a long time under harsh working conditions
without noise and vibration
. It is suitable for medium with strong abrasive solid particles and mild corrosive sewage slurry.
Product Parameters
Structure Diagram:
1.
Mixing wheel
2. Base strainer
3. Impeller
4. Pump body
5.Stand
6. Guard plate
7. Outlet pipe
8. Mechanical seal
9. Oil chamber
10. Oil and water probe
11. Bearing
12. Axis
13. Stator
14. Motor housing
15. Upper axle seat
16. Bearing
17. Motor cover
18. Junction box
19. Motor wiring
20. Signal cable
The
following
performance parameter table only shows part of the products. For details, please consult our company’s account manager, so that you can choose products for you more professionally.
|
Model
|
Capacity
(m³/h) |
Head
(m) |
Speed
(r/min) |
Motor Power
(kw)
|
|
40ZJQ
|
8-47
|
10-48
|
1400
|
2.2-18.5
|
|
50ZJQ
|
17-86
|
6-86
|
980-1400
|
4-45
|
|
65ZJQ
|
34-128
|
21-61
|
1400
|
11-45
|
|
80ZJQ
|
40-242
|
12-110
|
980-1400
|
4-160
|
|
100ZJQ
|
31-370
|
4-96
|
980-1400
|
7.5-220
|
|
150ZJQ
|
180-639
|
12-91
|
980-1400
|
18.5-200
|
|
200ZJQ
|
396-1188
|
25-134
|
980-1400
|
55-560
|
|
250ZJQ
|
544-1504
|
52-128
|
980
|
185-800
|
|
300ZJQ
|
789-2333
|
39-77
|
980
|
185-630
|
Applications
applications：
metallurgy
mining
c
hemical industry
electric power
environmental protection
river dredging
sand extraction
municipal engineering
medicine
shipbuilding
food
coal slag
tailings
