Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Headstream
-
Model Number:
-
50mm*1120mm
-
Product name:
-
Polyurethane Foam Sandwich Panel
-
Advantage:
-
Heat Insulaton
-
Core material:
-
Hard Polyurethane Foam
-
Steel Thickness:
-
0.4mm-0.8mm
-
Density:
-
40-42kg/m3
-
Surface material:
-
Color Coated PPGI Sheet
-
Length:
-
1-11.8m
-
Certificate:
-
CE ISO
-
Width:
-
600-1120mm
-
Panel Thickness:
-
30-250mm
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
coldroom,warehouse,industry factory,food industry
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Headstream
-
Model Number:
-
50mm*1120mm
-
Product name:
-
Polyurethane Foam Sandwich Panel
-
Advantage:
-
Heat Insulaton
-
Core material:
-
Hard Polyurethane Foam
-
Steel Thickness:
-
0.4mm-0.8mm
-
Density:
-
40-42kg/m3
-
Surface material:
-
Color Coated PPGI Sheet
-
Length:
-
1-11.8m
-
Certificate:
-
CE ISO
-
Width:
-
600-1120mm
-
Panel Thickness:
-
30-250mm

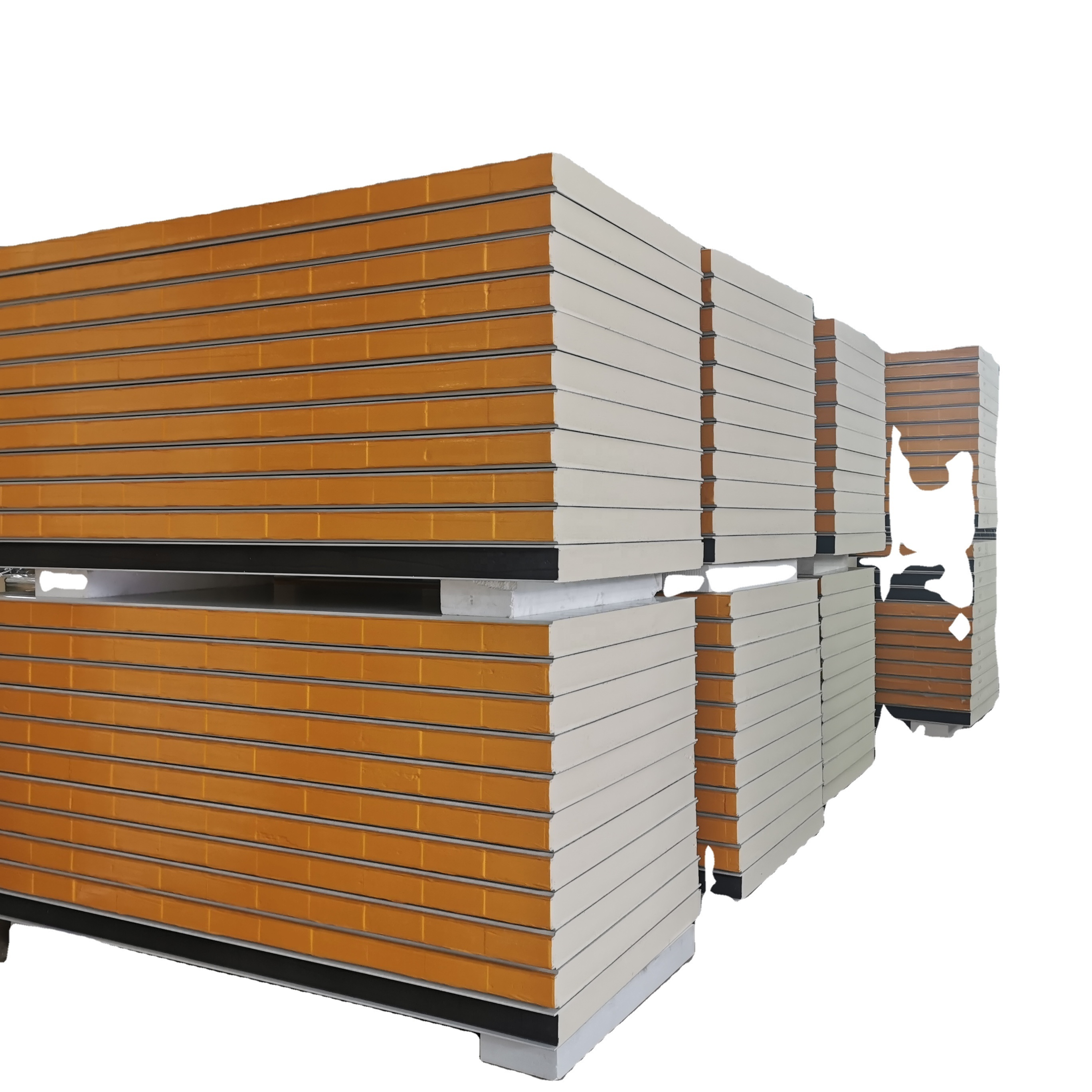

PU Sandwich panel (Polyurethane sandwiched panel )is composed of 2 layers of weather-proof colored steel sheets and jetted the hard forms of polyurethane between 2 layers which feature fireproof materials. It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
PUR/PIR Sandwich Panel Technology Data
|
Density |
40-45kg/m3 |
|
The thermal conductivity |
0.019-0.023W/M.K |
|
Moisture permeability coefficient |
≤ 3.34Ng/Pa/m.s |
|
Water absorption |
≤ 0.5g/100cm2 |
|
Enclosed rate |
≥ 97% |
|
The compression strength |
≥ 220KPa |
|
The bending strength |
≥ 2450KN/m2 |
|
Oxygen index |
≥ 28 |
|
Fire proof |
B1 |
|
Dimensional stability |
≤ 1% |
|
Application temperature |
-50 ℃ -150 ℃ |
|
Exterior Steel thickness |
0.4-0.7mm |
|
Interior steel thickness |
0.4-0.7mm |
|
Core material thickness |
40/50/60/75/100/120/150/200mm |
|
Length |
Less than 11.8m |
|
Effective width |
Wall panel:400-1120mm;Roof panel:1000mm |
|
Grace finish |
Embossment,small wave,big rib,flat finish |
|
Advantage |
Heat Insulation, light weight, quick installation,waterproof, fireproof, soundproof, energy-saving,environmental friendly, |
|
Usage |
Various roofs and walls referring to the large size factory building ,workshop,coldstorage,villas, |
|
Thickness of sandwich panel |
Application temperature |
|
50mm |
Temperature 5°C or above |
|
75mm |
Temperature -5°C or above |
|
100mm |
Temperature -15°C or above |
|
120mm |
Temperature -25°C or above |
|
150mm |
Temperature -35°C or above |
|
200 |
Temperature -45°C or above |
World famous steel sandwich panel production line from PUMA,Italy
The longest double belt main machine Guarantee the quality ofthe panel
The 6 component foaming Guarantee the continuous quality stability of the pu sandwich panel
L/C AND T/T
1)Expertise:
20 years' manufacture : we know how to properly handle every step of production.
2)Accuracy:
We have a technicial team and a QC team,ensure the quality products.
3)High quality and competitive price
We cooperated with BLUESCOPE,BAOSTEEL,YIEH PHUI,HUNTSMAN,MA STEEL,BASF,which are both high guality and famous raw materials.
4)Certificate
Our products are certified by ISO9001:2008,ISO14001:2004 etc.
5)Producitivity
We have 6 sandwich panels production lines,to guarantee all your orders will be finished in earlist time.
