Quick Details
-
Product name:
-
IPTV Live Streaming H.265 IPTV SDI Encoder
-
Input Signal:
-
1*SDI
-
Output:
-
4 groups TS over IP stream out
-
Protocol:
-
RTMPs/RTSP/HTTP/UDP/HLS/SRT
-
Video Encoding:
-
H.265/H.264 Main Profile/High Profile
-
Audio Encoding:
-
AAC, MP3
-
Bitrate:
-
VBR/CBR
-
Resolution:
-
Up to 1080P Full HD
-
Application:
-
IPTV/OTT system, Live Streaming
-
Configuration:
-
Web operation
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibviewolo
-
Model Number:
-
OTV-HES1
-
Product name:
-
IPTV Live Streaming H.265 IPTV SDI Encoder
-
Input Signal:
-
1*SDI
-
Output:
-
4 groups TS over IP stream out
-
Protocol:
-
RTMPs/RTSP/HTTP/UDP/HLS/SRT
-
Video Encoding:
-
H.265/H.264 Main Profile/High Profile
-
Audio Encoding:
-
AAC, MP3
-
Bitrate:
-
VBR/CBR
-
Resolution:
-
Up to 1080P Full HD
-
Application:
-
IPTV/OTT system, Live Streaming
-
Configuration:
-
Web operation
Products Description
Overview

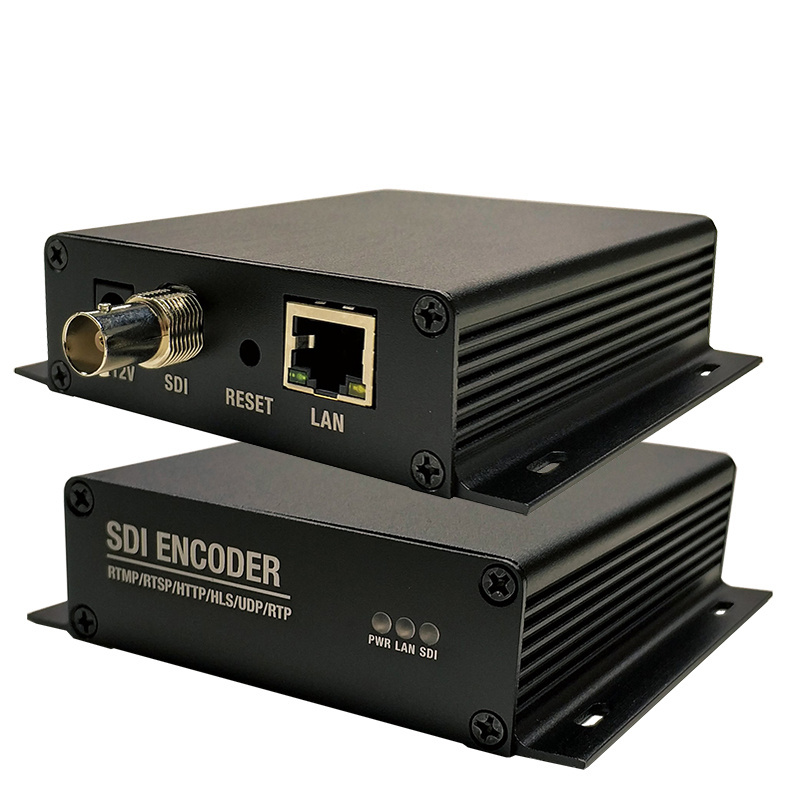

OTV-HES1 H.265/H.264 Streaming IPTV SDI Video Encoder is DIBVIEW newest professional HD audio and video encoding device with powerful functionality, which is equipped with 1 channel SDI input, multi-screen multiprotocol series IP Encoder are designed to demand the increasing needs for video delivery to Internet and mobile devices.
OTV-HES1 H.265/H.264 Streaming IPTV SDI Video Encoder supports audio and video collection by 1-Channel SDI input. For SDI input,each channel of SDI input supports output 4 groups IP streams with four different resolution (up to 1080p) and another four different bitrates to meet different size screen and different bandwidth condition. Each group of IP stream supports kinds of main protocols output (HLS, RTMPs, HTTP, RTSP, UDP), this enable Encoder to deliver H.264/H.265 IP streams by independent IP output to various servers for IPTV & OTT application. Such as Facebook Server, YouTube Server, Ustream Server, Adobe Flash Server, Wowza Media Server, and some other servers based on SRT/HLS/UDP/RTSP/RTMPs/HTTP/ON VIF protocols. Moreover, providing username, password
matching function which required from destination server, to avoid the streaming which does not authorized.
OTV-HES1 H.265/H.264 Streaming IPTV SDI Video Encoder is an excellent Hardware encoder for professional broadcast level IPTV & OTT system construction, hospitality Hotel IPTV application, Remote multi-window video conference, Remote education and Remote medical treatment and etc.
Not only 1-channel SDI, we also produce multichannel SDI Streaming Encoder which is packed by 2U or 3U Rack. For 3U rack, support max 16pc independent encoding modules to be installed.
OTV-HES1 H.265/H.264 Streaming IPTV SDI Video Encoder supports audio and video collection by 1-Channel SDI input. For SDI input,each channel of SDI input supports output 4 groups IP streams with four different resolution (up to 1080p) and another four different bitrates to meet different size screen and different bandwidth condition. Each group of IP stream supports kinds of main protocols output (HLS, RTMPs, HTTP, RTSP, UDP), this enable Encoder to deliver H.264/H.265 IP streams by independent IP output to various servers for IPTV & OTT application. Such as Facebook Server, YouTube Server, Ustream Server, Adobe Flash Server, Wowza Media Server, and some other servers based on SRT/HLS/UDP/RTSP/RTMPs/HTTP/ON VIF protocols. Moreover, providing username, password
matching function which required from destination server, to avoid the streaming which does not authorized.
OTV-HES1 H.265/H.264 Streaming IPTV SDI Video Encoder is an excellent Hardware encoder for professional broadcast level IPTV & OTT system construction, hospitality Hotel IPTV application, Remote multi-window video conference, Remote education and Remote medical treatment and etc.
Not only 1-channel SDI, we also produce multichannel SDI Streaming Encoder which is packed by 2U or 3U Rack. For 3U rack, support max 16pc independent encoding modules to be installed.
Main Features
* Video Input:1-Channel SDI
* Video Compression: H.265/H.264 Baseline Profile/Main Profile/High Profile, up to Full HD 1080P@60fp
* Support Dolby AC3, AAC, AAC+, AAC++, MP3, MP2 audio compression
* Support output up to 4 groups TS over IP streams with 4 different resolutions and 4 different bitrates by each SDI channel
input
* Support RTMP User name and Pass word for authentication of IPTV Server
* Capable of OSD settings for logo, upload 4 LOGO options, text and Scroll Caption; Adjustable of audio gain;
* Bitrate mode: CBR/VBR
* Capable of image parameter settings
* Configurable of Multi-Screen, and Multi-Protocol SRT/HLS/HTTP/RTSP/RTMPs/FLV/ ON VIF/UDP Multicast /RTP Multicast
* Video Compression: H.265/H.264 Baseline Profile/Main Profile/High Profile, up to Full HD 1080P@60fp
* Support Dolby AC3, AAC, AAC+, AAC++, MP3, MP2 audio compression
* Support output up to 4 groups TS over IP streams with 4 different resolutions and 4 different bitrates by each SDI channel
input
* Support RTMP User name and Pass word for authentication of IPTV Server
* Capable of OSD settings for logo, upload 4 LOGO options, text and Scroll Caption; Adjustable of audio gain;
* Bitrate mode: CBR/VBR
* Capable of image parameter settings
* Configurable of Multi-Screen, and Multi-Protocol SRT/HLS/HTTP/RTSP/RTMPs/FLV/ ON VIF/UDP Multicast /RTP Multicast
* Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol
without install any software players.
* Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMPs protocol with software players
(such as VLC).
* Supports the HDCP protocol and supports Blu ray HD
* Support multiple equipment display at the same time on a computer
* System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
* WEB interface authority management
* Network interface adopts 100/1000M adaptive/full duplex mode
without install any software players.
* Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMPs protocol with software players
(such as VLC).
* Supports the HDCP protocol and supports Blu ray HD
* Support multiple equipment display at the same time on a computer
* System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
* WEB interface authority management
* Network interface adopts 100/1000M adaptive/full duplex mode
|
Specifications
|
|
|
|
|
||||
|
Item
|
Description
|
|
|
|
||||
|
Video Encoding
|
|
|
|
|
||||
|
Video compression: H.265 HEVC/H.264/AVC High/Main/Baseline Profile Level 4.0
Frame rate: Up to Full HD 1080P 60fps Video input:1*SDI |
|
|
|
|
||||
|
Resolution
|
The Main stream:
1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360 auto. The Second Stream: 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360 auto. The Third Stream: 720x576, 720x540,720x480, 720x404, 704x576, 640x480, 640x300, 352x288, 320x240, 320x180 auto The Fourth Stream: 720x576, 720x540, 720x480, 720x404,704x576, 640x480, 640x300, 352x288, 320x240, 320x180 auto |
|
|
|
||||
|
Code Rate Control
|
32kbps~32Mbps,CBR/VBR
|
|
|
|
||||
|
Video pre-processing
|
Noise reduction, Sharpen, Filtering
|
|
|
|
||||
|
Audio Encoding
|
|
|
|
|
||||
|
Audio compression: Dolby AC3,AAC / AAC+ / AAC++ / MP3/G.711
|
|
|
|
|
||||
|
Audio bit rate: AAC:48000-256000 adjustable /AAC+:24000-48000 adjustble/
AAC++:12000-32000 adjustable/MP3:64000-320000 adjustable/ MP2: 64000-320000 adjustable/ AC3:40000-640000 adjustable |
|
|
|
|
||||
|
Sampling rate: 44.1KHz, 48.0KHz
|
|
|
|
|
||||
|
RTSP stream uses G711A encoding: Disable/enable/enable and resample to 8K optional
|
|
|
|
|
||||
|
IP Streaming Output
|
|
|
|
|
||||
|
Transport protocol: TS over IP output, SRT, HLS, RTSP, HTTP, UDP and RTMPs protocol
|
|
|
|
|
||||
|
For each SDI to IPTV output, supporting output 4 groups TS over IP streams (for each group the HLS, HTTP, RTSP, UDP and RTMPs protocol all enabled).
with 4 different resolutions (up to1080P@60fps) and 4 different bitrates to meet different size screen and different bandwidth condition. |
|
|
|
|
||||
|
Management
|
|
|
|
|
||||
|
Configuration Interface: web-based UI Upgraded: via network
Connector: RJ45, 100/1000M Ethernet interface. |
|
|
|
|
||||
|
The Working Environment
|
|
|
|
|
||||
|
Dimension：Rack 104x102x28mm Gross Weight：0.3KG
Temperature：0 to 45(For working), -20 to 80(For storing) Input Voltage：12V /DC 2A Power Consumptio:5W |
|
|
|
|
||||
Key Diagram or Application
Agencies, TV & Pro Radio and Sports
Organizations, Conferences and Worship
Remote Video Conference, Internet TV
IPTV/OTT system, Live Streaming
Organizations, Conferences and Worship
Remote Video Conference, Internet TV
IPTV/OTT system, Live Streaming
Government, Education and Music
Digital Signage Project
Video Monitoring
Digital Signage Project
Video Monitoring
Product Details
Why Choose Us
1. 12 years experience in DVB front-end equipments, more than 100 different items
2. All products are developed by our experienced R&D team, which allow us to provide best after-sale support
3. Excellent pre-sale and after-sale professional technical team
4. High quality control with competitive price, quality is very important and always be put at the first place. Dibview team members are always paying great attention to quality controlling from the beginning to the end. Inspections of each step will be done during the production process.
5. Fast feedback and fast delivery
6. OEM & ODM also supported
7. We can provide one or several sample for testing
2. All products are developed by our experienced R&D team, which allow us to provide best after-sale support
3. Excellent pre-sale and after-sale professional technical team
4. High quality control with competitive price, quality is very important and always be put at the first place. Dibview team members are always paying great attention to quality controlling from the beginning to the end. Inspections of each step will be done during the production process.
5. Fast feedback and fast delivery
6. OEM & ODM also supported
7. We can provide one or several sample for testing
