Quick Details
-
Voltage:
-
380V/415V
-
Weight:
-
1600 KG
-
Item Name:
-
Sand Trommel Screen
-
Function:
-
Screening\separation\sorting\sieving\sieving
-
Capacity:
-
10-20t/h
-
Advantage:
-
High Efficiency
-
Customized:
-
Size
-
Layer(s):
-
1/2
-
Keyword:
-
Sand Screening Vibration Machine
Quick Details
-
Type:
-
Mineral screening
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Stael
-
Voltage:
-
380V/415V
-
Weight:
-
1600 KG
-
Item Name:
-
Sand Trommel Screen
-
Function:
-
Screening\separation\sorting\sieving\sieving
-
Capacity:
-
10-20t/h
-
Advantage:
-
High Efficiency
-
Customized:
-
Size
-
Layer(s):
-
1/2
-
Keyword:
-
Sand Screening Vibration Machine
Product Overview

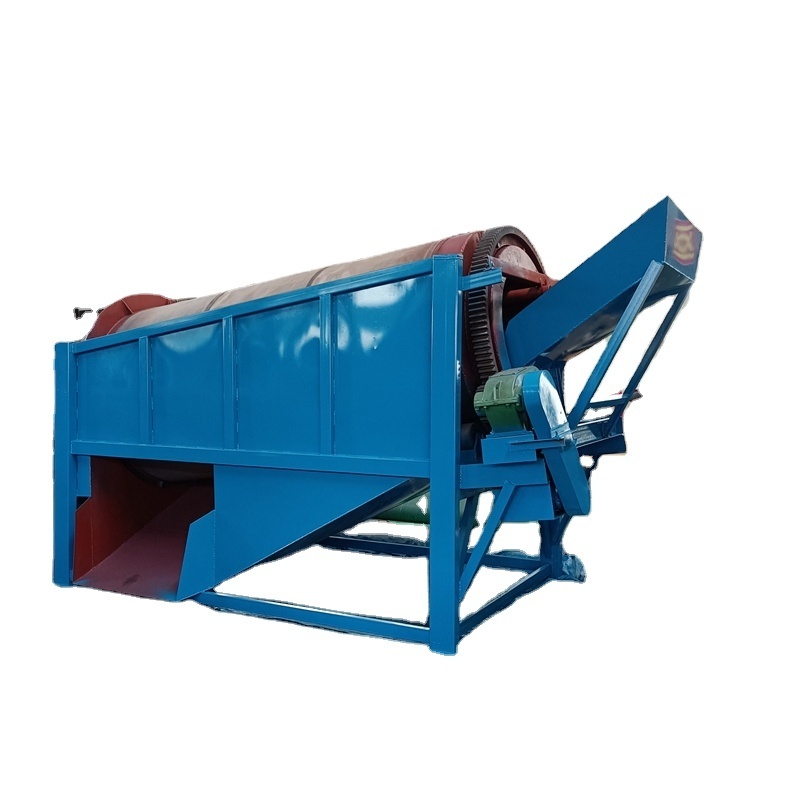

roller screen
Equipment Description: roller screen is mainly used for grading the particle size of materials, and is widely used in electric power, mining, metallurgy, building materials, chemical industry and other production industries. It is commonly used in the classification of refractory materials, coal and sand field stones, and the screening of sticky and wet materials such as coal, coke, lime and placer gold, so as to make the product structure more uniform and meet the production needs. The roller screen overcomes the screen sticking and blocking problems of various vibrating screens when screening wet materials, and improves the output and reliability of the screening system. It is suitable for screening materials of various properties, as well as damp and easily blocked materials such as coal, coal gangue, coke and quicklime. The maximum size of screened products is 100 mm, the middle is 10-50 mm, and the minimum size is less than 3 mm.
PRODUCT SPECIFICATIONS
|
Model
|
Capacity
|
Power
|
Diameter
|
Length
|
Screen size
|
Dimension
|
|
LZGT0610
|
5-10t/h
|
2.2kw
|
600mm
|
1000mm
|
1～50 mm
(can use double and three layers） |
2520/1020/1860mm
|
|
LZGT0815
|
8-18t/h
|
3kw
|
800mm
|
1500mm
|
|
2860/1300/2060mm
|
|
LZGT1015
|
10-20t/h
|
4.0kw
|
1000mm
|
1500mm
|
|
3060/1400/2145mm
|
|
LZGT1020
|
20-25t/h
|
5.5kw
|
1000mm
|
2000mm
|
|
3460/1400/2145mm
|
|
LZGT1225
|
25-35t/h
|
7.5kw
|
1200mm
|
2500mm
|
|
4146/1600/2680mm
|
|
LZGT1530
|
40-70t/h
|
11kw
|
1500mm
|
3000mm
|
|
4460/1900/2820mm
|
|
LZGT1545
|
80-120t/h
|
15kw
|
1500mm
|
4500mm
|
|
5960/1900/3080mm
|
|
LZGT1850
|
150-200t/h
|
22kw
|
1800mm
|
4800mm
|
|
6600/2300/4000mm
|
|
LZGT2060
|
200-260t/h
|
30kw
|
2000mm
|
6000mm
|
|
7900/2500/4000mm
|
