Quick Details
-
Brand Name:
-
Vetese
-
Model Number:
-
VTS -2000
-
Size of Focus:
-
0.5mm*0.5mm
-
Magnification Times:
-
1.20-1.30
-
Total Filter Capacity:
-
2.5mm Al
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Vetese
-
Model Number:
-
VTS -2000
-
Size of Focus:
-
0.5mm*0.5mm
-
Magnification Times:
-
1.20-1.30
-
Total Filter Capacity:
-
2.5mm Al
Product Description

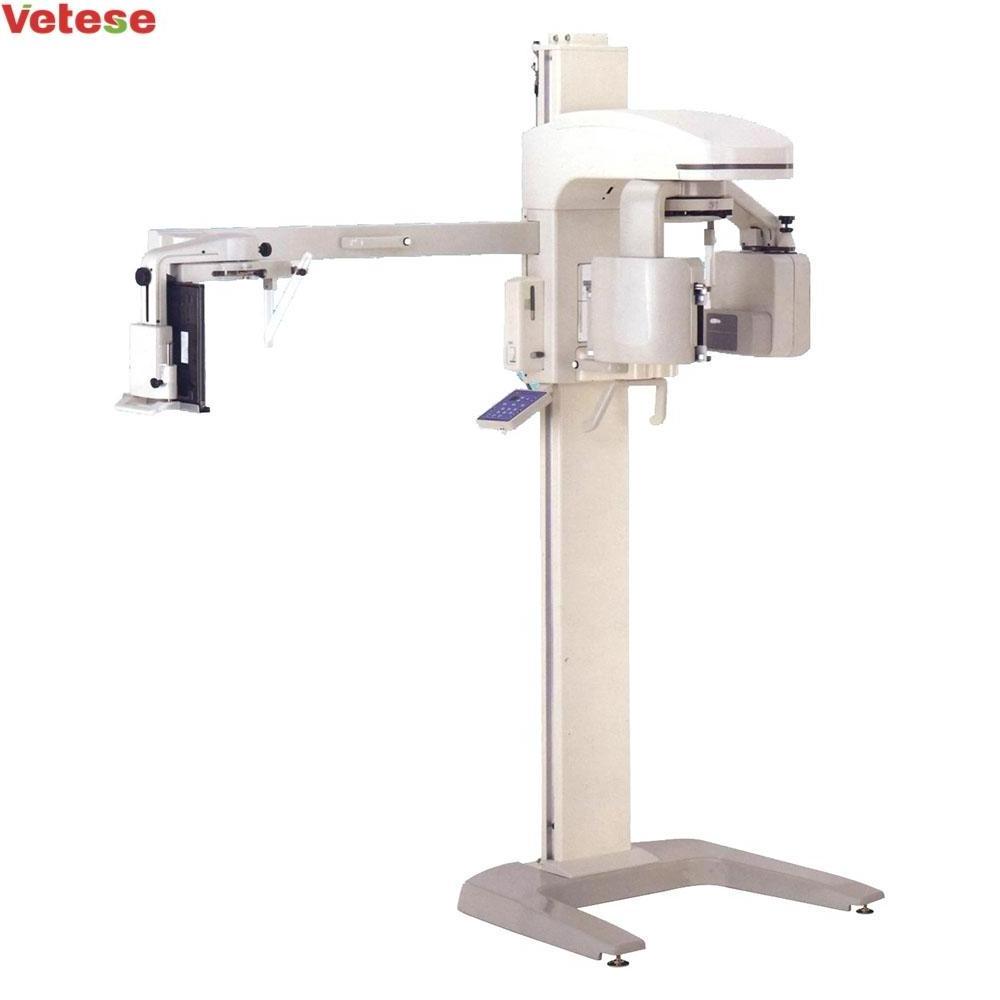

Panoramic Dental X Ray Machine with Cephalometric
Main Features
• Adoption of an imported small-focus X-ray tube (0.5mm*0.5mm) and imported motor thus being capable of getting clear X-ray images.
• Adoption ofvarious imaging focus tracks and 13 common imaging modes which fit for anypaitients
• Adoption of 1.2-1.3 Magnification times makes diagnosis easier.
• Convenient and accurate patient positioning
• Connecting to anybrand of CR machine to realize digitalization.
• Revolutionary SCSRS imaging plates,the most abundant procedure can provide more clinical diagnosis message and jaw image information
Specification
|
Input Voltage
|
220V±10% 50HZ±1HZ Internal resistance ≤ 1Ω
|
|
Input Power
|
During transient loading: 2500W; Standby state: 110W, 0.5A
|
|
Fuse
|
15A (Φ6×30)
|
|
Tube Voltage
|
Automatic 60kV-88kV error ≤10% set automatically
Manual 60kV-88kV error ≤10% step by 2KV |
|
Tube Current
|
Panoramic 12mA ±20%
jaw joint 12mA ±20% |
|
X-ray Bulb Tube
|
XD20-0.7/105, Target: Tungsten, Target angle 5º.
|
|
Size of Focus
|
0.5mm×0.5mm
|
|
Magnification Times
|
1.20-1.30
|
|
Total filter capacity
|
2.5mm Al
|
|
Exposure Time
|
14s for panorama
3s×4 for jaw joint |
|
Film Size
|
150×300mm
|
|
X-ray Cartridge
|
card-form cartridge: 150mm×300mm
|
|
X-ray Intensifying Screen
|
L-40
|
|
Up-down Adjusting Range
|
853 mm -1643mm
|
