Quick Details
-
Span:
-
7.5~35m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Pengda
-
Crane frame:
-
45 ton overhead crane
-
Life time:
-
More than 10 years
-
Spare parts:
-
One year quick-wear parts for free
-
Bridge crane motors:
-
China top brand motors
-
Electrical system:
-
Siemens brand contactors
-
Lifting unit:
-
Wire rope electric hoist
-
Power Source:
-
3 phase 380V 50hz or accord your requirements
-
Bridge crane painting:
-
Red, yellow,or according to your demand
-
Overload protection:
-
Include
-
Control model:
-
Cabin control, remote control or push button control
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO9001
Quick Details
-
Max. Lifting Height:
-
25M, 7.5m, 10M, 15M, 6m, 20M
-
Rated Lifting Moment:
-
450KN
-
Max. Lifting Load:
-
45 ton
-
Span:
-
7.5~35m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Pengda
-
Crane frame:
-
45 ton overhead crane
-
Life time:
-
More than 10 years
-
Spare parts:
-
One year quick-wear parts for free
-
Bridge crane motors:
-
China top brand motors
-
Electrical system:
-
Siemens brand contactors
-
Lifting unit:
-
Wire rope electric hoist
-
Power Source:
-
3 phase 380V 50hz or accord your requirements
-
Bridge crane painting:
-
Red, yellow,or according to your demand
-
Overload protection:
-
Include
-
Control model:
-
Cabin control, remote control or push button control
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO9001
Double girder electric hoist 45 ton overhead crane
Product descripition
Double girder electric overhead crane( LH model ) has such features as tight dimensions, low building headroom, light dead weight and light wheel load. They are applicable to the transfer, assembly,check and repair as well as load and unload at mechanic processing workshop ,subsidiary workshop of metallurgical mills, warehouse,goods yard and power station.They can also instead of common double girder crane at production workshop in light textiles or food industry.
Schematic diagram
Main technical specification
|
Capacity |
5t,10t,15t,16t,20t,25t,30t,32t,40t,50t |
|||||
|
Span(rail to rail center) |
7.5m~35m |
|||||
|
Lifting height |
6m, 9m, 12m,18m or other height |
|||||
|
Capacity |
5t |
10t |
15t, 16t |
20t, 25t |
30t, 32t |
40t, 50t |
|
Lifting speed(m/min) |
8, 8/0.8 |
7/0.7 |
3.5, 3.5/0.35 |
4, 4/0.4 |
3, 3/0.3 |
2, 2/0.2 |
|
Cross travelling speed(m/min) |
10, 20 |
10, 20 |
10, 20 |
10, 20 |
10, 20 |
10, 20 |
|
Long travelling speed(m/min) |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
|
Duty Class |
A3/A4 |
|||||
|
Power source |
380V, 50HZ, 3 phase (or other standard) |
|||||
|
Working temperature |
-25~4 0° C |
|||||
|
Control model |
Cabin control, remote control or push button control |
|||||
Safety Precautions
Ø Upward and downward limit switch for hook
Ø Low-voltage protection function
Ø Phase sequence protection function
Ø Overload protection
Ø Emergency stop protection
Ø Hook with latch
Ø Rubber buffers

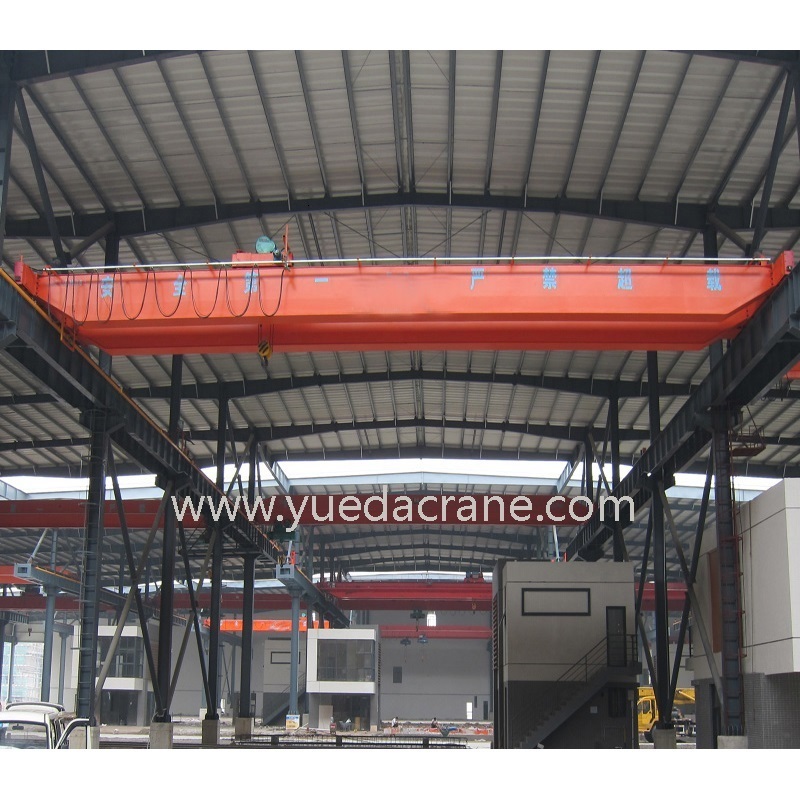

Product shows
After-sale seivice
u 14 months warranty the date of B/L
u One year quick-wear parts for free
u Professional technic ians provide installation, commissioning services.
u Technical advisory for any time.
Welcome select Overhead Crane and visit our factory yuedacrane.com. Our professinal engineers and technicians will serve you with all technical support.
