Quick Details
-
Product name:
-
Soil Strain bench Standard Triaxial Testing Apparatus for lab test
-
Max load:
-
10KN 30KN 60KN
-
Power:
-
electronic, 220V±10%, 50Hz
-
Strain rate:
-
0.0001-4.8mm/min
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
IWIN
-
Product name:
-
Soil Strain bench Standard Triaxial Testing Apparatus for lab test
-
Max load:
-
10KN 30KN 60KN
-
Power:
-
electronic, 220V±10%, 50Hz
-
Strain rate:
-
0.0001-4.8mm/min

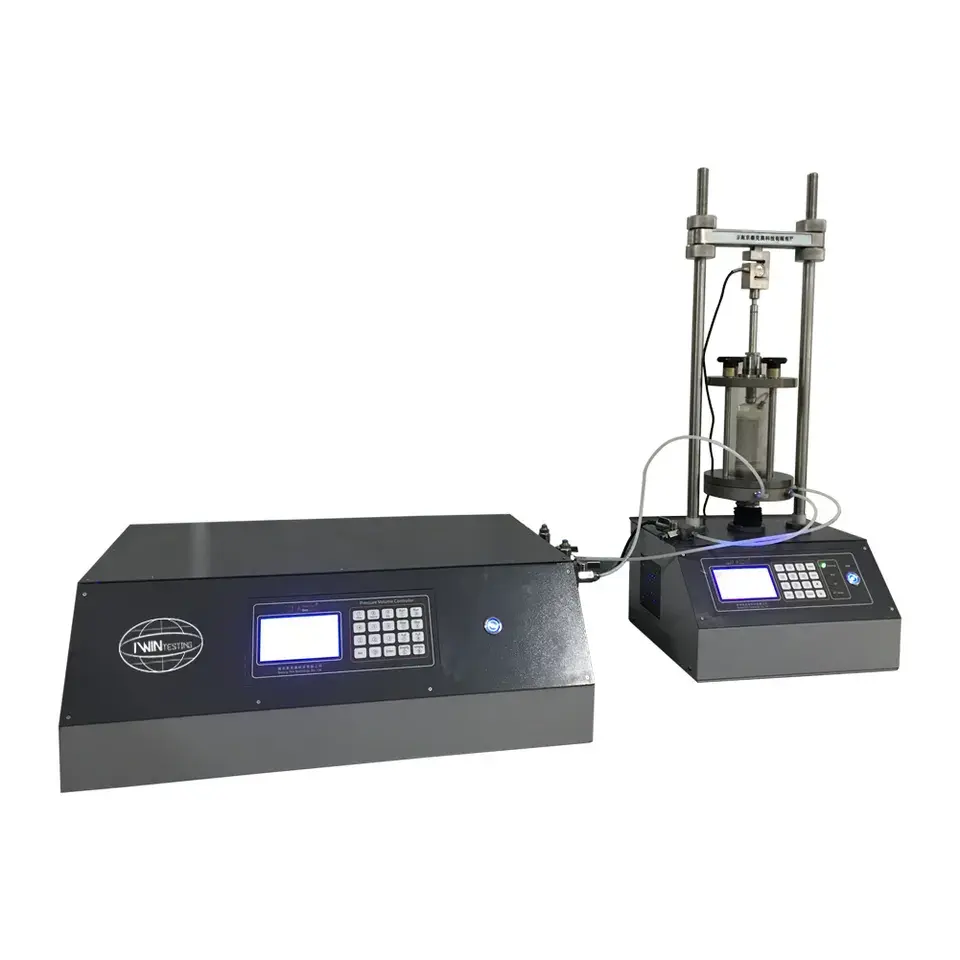

Soil Strain Controlled bench Standard Triaxial Testing Apparatus for lab test
|
Sample dimension |
dia. 39.1×80 mm |
|
Max load |
10Kn |
|
Strain rate |
0.016-1.6mm/min. six-speed mechanicaltransmission |
|
Table stroke |
Max. 50mm |
|
Confining pressure |
0-1Mpa |
|
Back pressure |
0-0.6Mpa |
|
Hole pressure |
0-1Mpa |
|
Volume change |
0-25ml |
|
Graduation |
0.1ml |
|
Axial displacement |
0-30mm |
|
Power |
220V±10%, 50Hz |
|
Machine dimension |
350 x 300 x 1100mm |
|
Controller Dimension |
500 x 500 x 925mm |
