Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JIANGHAO
-
Model Number:
-
JHK-800GF
-
Speed:
-
1500rpm
-
Diesel engine & Model:
-
Cummins KTA38-G5
-
Alternator Brand:
-
Stamford,Marathon, Lerysomer or Company brand
-
Controller Brand:
-
Smartgen,Deepsea
-
Generator Overall Structure:
-
Open skid, Soundproof, or Trailer
-
Control System:
-
Standard, AMF, ATS, synchronize paralleling, Grid-in.
-
Options 1:
-
Automatic Transfer Switch
-
Options 2:
-
Spare parts
-
Options 3:
-
Heaters
-
Options 4:
-
Fuel Tank
-
Options 5:
-
Other requirement
-
Certification:
-
CE/ISO
Quick Details
-
Rated Voltage:
-
400V or as requirement
-
Rated Current:
-
1440A
-
Frequency:
-
50HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JIANGHAO
-
Model Number:
-
JHK-800GF
-
Speed:
-
1500rpm
-
Diesel engine & Model:
-
Cummins KTA38-G5
-
Alternator Brand:
-
Stamford,Marathon, Lerysomer or Company brand
-
Controller Brand:
-
Smartgen,Deepsea
-
Generator Overall Structure:
-
Open skid, Soundproof, or Trailer
-
Control System:
-
Standard, AMF, ATS, synchronize paralleling, Grid-in.
-
Options 1:
-
Automatic Transfer Switch
-
Options 2:
-
Spare parts
-
Options 3:
-
Heaters
-
Options 4:
-
Fuel Tank
-
Options 5:
-
Other requirement
-
Certification:
-
CE/ISO
Jiangsu Jianghao generator Co.,Ltd, located in Taizhou city, Jiangsu Province, which is near Shanghai port. We have modern assembly workshop to produce diesel generator sets. Jianghao devote itself into researching ,manufacturing and installing superb diesel generator sets ,power range from 2kva to 4000kva,include silent type, container type, mobile power station, multiple parallel, remote control and so on. As the ideal emergency standby power equipment, diesel generator sets are widely used in industrial and mining enterprises, communication, army, ports, highway, railway, hotels etc places. With the compelling quality and service, Jianghao has built a good reputation with customers in the area of diesel generator sets, our products are exported to over eighty countries and regions, over 80 millions USD in the year 2021.
| Diesel generator Details | |
| Model | JHK-800GF |
| Power |
800kw/1000kva |
| Frequency | 50Hz |
| Voltage | 380v(voltage can be customized) |
| Optional Type | Open/soundproof |

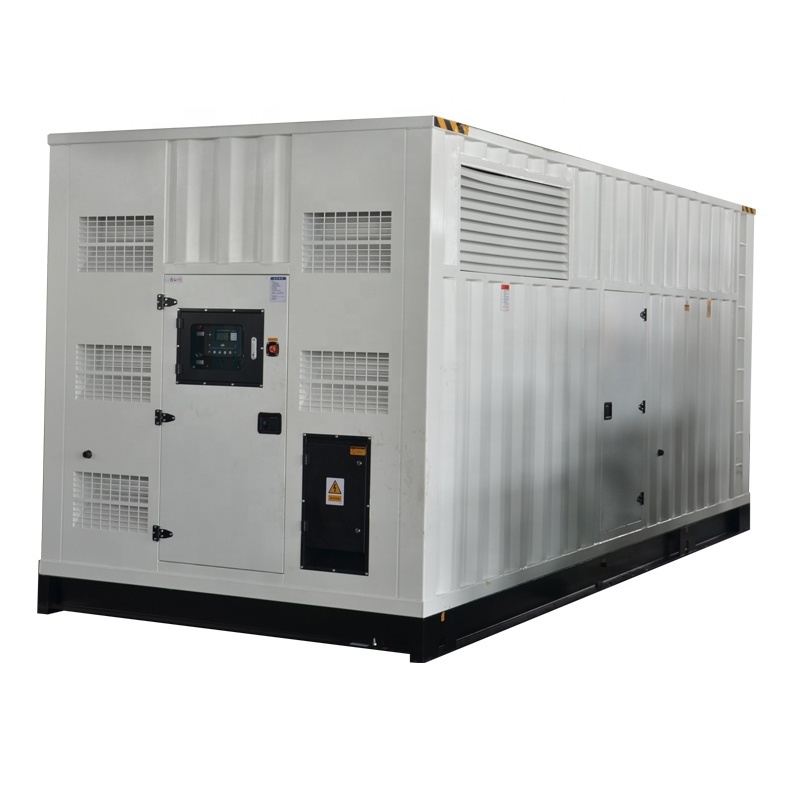

| Size of container type | 6000*2400*2800mm |
| Weight of container type | 9900kg |
| With Diesel Engine | |
| Brand&model | Cummins KTA38-G5 |
| Power | 970kw |
| Cylinders | 12 in L type arrangement |
| Bore*Stroke | 159*159mm |
| Displacement | 38L |
| Lubrication Oil Capacity | 135L |
| Fuel Consumption at 100% Load | 202g/kw.h |
| Speed Governor | Electrical |
| With Alternator | |
| Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| With Controller | |
| Optional brands | Deepsea/ComAp/Smartgen |
| Standard equipment | |
| · Diesel engine | · 40℃ water cooled radiator |
| · Alternator | · Silencer and flexible exhaust hose |
| · Starting batteries and battery connect wires | · Digital control panel |
| · Output circuit breaker | · Steel base frame |
| Optional equipment | |
| · Sound proof | · Water heater |
| · Automatic parallel synchronizing control system | · ATS |
| · 50℃ water cooled radiator | |
Jianghao series generators are powered by international and Chinese famous engine,such as by CUMMINS engine , by PERKINS engine , by Sweden original VOLVO engine, South Korea original DOOSAN engine, WEICHAI engine, YUCHAI engine and SDEC engine,etc,which match the world-class alternators,Such as STAMFORD, MARATHON, LEROY -SOMER,MECC ALTE,HENGSHENG and other Chinese well-known brands in order to ensure excellent quality of our products.About the controller, we mainly use DEEPSEA,COMAP,SMARTGEN.
