1. Photoelectric protection device
2. TPC industrial touch screen
3. PLC program control
4. Stroke and speed digital display control device
5. Cooling device, displacement sensor
6. Safety light curtain protection device
7. Constant travel and constant pressure function
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KLT
-
Year:
-
2023
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1570mm*850mm*2650mm
-
Weight (T):
-
0.75 T
-
Model Number:
-
YKT-5T
-
Motor Power (kw):
-
2.2 kw
-
Keyword:
-
Hydryalic Press
-
Advantage:
-
High Efficiceny
-
Motor:
-
4KW
-
Package:
-
Wooden Case
-
Color:
-
Customized
-
Nominal Force (kN):
-
50 kN
-
Power Source:
-
Hydraulic
-
Product name:
-
Single Arm Hydraulic Press
-
Function:
-
Metal Processing
-
Application:
-
Metal Sheet Steel Forming
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Slide Stroke (mm):
-
50
-
Return Force (kN):
-
65 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KLT
-
Year:
-
2023
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1570mm*850mm*2650mm
-
Weight (T):
-
0.75 T
-
Model Number:
-
YKT-5T
-
Motor Power (kw):
-
2.2 kw
-
Keyword:
-
Hydryalic Press
-
Advantage:
-
High Efficiceny
-
Motor:
-
4KW
-
Package:
-
Wooden Case
-
Color:
-
Customized
-
Nominal Force (kN):
-
50 kN
-
Power Source:
-
Hydraulic
-
Product name:
-

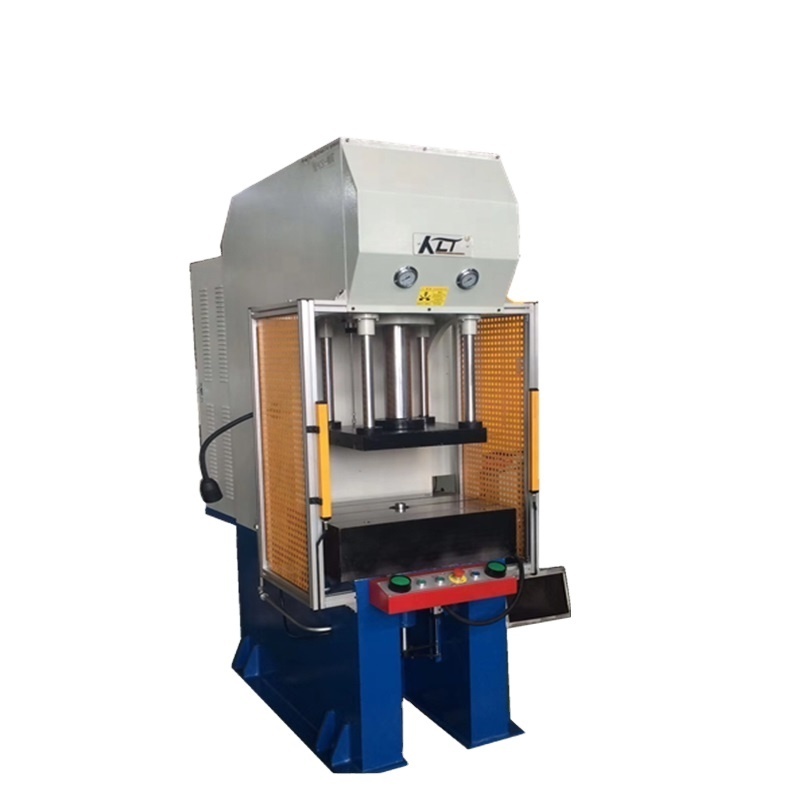

Single Arm Hydraulic Press
-
Function:
-
Metal Processing
-
Application:
-
Metal Sheet Steel Forming
STANDARD COMPONENTS
Scope Of Application：
The YKT series is mainly suitable for machine tools, construction machinery, electrical components, bearings, washing machines, auto parts, motor parts and powder metallurgy. This machine has a high degree of automation and is particularly suitable for large-scale production of parts.
Specifications
|
Item
|
Unit
|
25T
|
40T
|
63T
|
100T
|
160T
|
200T
|
250T
|
315T
|
|||||||
|
Nominal pressure
|
KN
|
250
|
400
|
630
|
1000
|
1600
|
2000
|
2500
|
3150
|
|||||||
|
Max. pressure of liquid
|
Mpa
|
20.3
|
23
|
25
|
26.3
|
25
|
25
|
25
|
25
|
|||||||
|
Max. opening height
|
mm
|
600
|
700
|
800
|
800
|
900
|
900
|
900
|
900
|
|||||||
|
Max. stroke of slider
|
mm
|
350
|
400
|
500
|
500
|
500
|
500
|
500
|
500
|
|||||||
|
Downstream speed of slider
|
mm/s
|
120
|
140
|
260
|
250
|
220
|
180
|
180
|
220
|
|||||||
|
Working speed of slider
|
mm/s
|
Adjustable ranger 7-15
|
|
|
|
|
|
|
|
|||||||
|
Return speed of slider
|
mm/s
|
120
|
120
|
120
|
160
|
105
|
140
|
165
|
140
|
|||||||
|
Throat depth
|
mm
|
250
|
280
|
320
|
320
|
325
|
325
|
325
|
450
|
|||||||
|
Table size(F.B.)
|
mm
|
480
|
500
|
550
|
600
|
600
|
600
|
600
|
800
|
|||||||
|
Table size(L.R.)
|
mm
|
550
|
600
|
700
|
800
|
1000
|
1000
|
1200
|
1200
|
|||||||
Competitive Advantage
1. CE,ISO Certification.
2. We can supply KLT brand or OEM for clients.
3. We can supply product line solution according to clients’ requirements.
4. Independent electrical control with PLC and TPC.
5. Adopted RexrothHydraulic valve system/Siemens Motorto ensure that the hydraulic system is not leaking.
6. The pressure, stroke, and time of pressure maintaining can be regulated.
7. 7.High qualityand performance with good price.
8. 8. Safe and stable operation.
9. Support 7*24 remote service or locate service.
10. Supply maintenance service all life.
2. We can supply KLT brand or OEM for clients.
3. We can supply product line solution according to clients’ requirements.
4. Independent electrical control with PLC and TPC.
5. Adopted RexrothHydraulic valve system/Siemens Motorto ensure that the hydraulic system is not leaking.
6. The pressure, stroke, and time of pressure maintaining can be regulated.
7. 7.High qualityand performance with good price.
8. 8. Safe and stable operation.
9. Support 7*24 remote service or locate service.
10. Supply maintenance service all life.
