Quick Details
-
Model Number:
-
PLH
-
Specification:
-
3/4"-12"
-
Length:
-
50m 100m, 50m,100m
-
Thickness:
-
1mm-4mm
-
Standard:
-
ISO14001 ISO9001
-
W.P.:
-
4-10bar
-
Color:
-
blue, red, green, yellow etc.
-
B.P.:
-
12-30BAR
-
Feature:
-
Anti-UV flexibility Anti-chemical color available
-
Product name:
-
PVC Layflat Discharge Hose
-
Certification:
-
ISO14001
-
OEM:
-
Accpet
-
Sample:
-
Available
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Orientflex
-
Model Number:
-
PLH
-
Specification:
-
3/4"-12"
-
Length:
-
50m 100m, 50m,100m
-
Thickness:
-
1mm-4mm
-
Standard:
-
ISO14001 ISO9001
-
W.P.:
-
4-10bar
-
Color:
-
blue, red, green, yellow etc.
-
B.P.:
-
12-30BAR
-
Feature:
-
Anti-UV flexibility Anti-chemical color available
-
Product name:
-
PVC Layflat Discharge Hose
-
Certification:
-
ISO14001
-
OEM:
-
Accpet
-
Sample:
-
Available

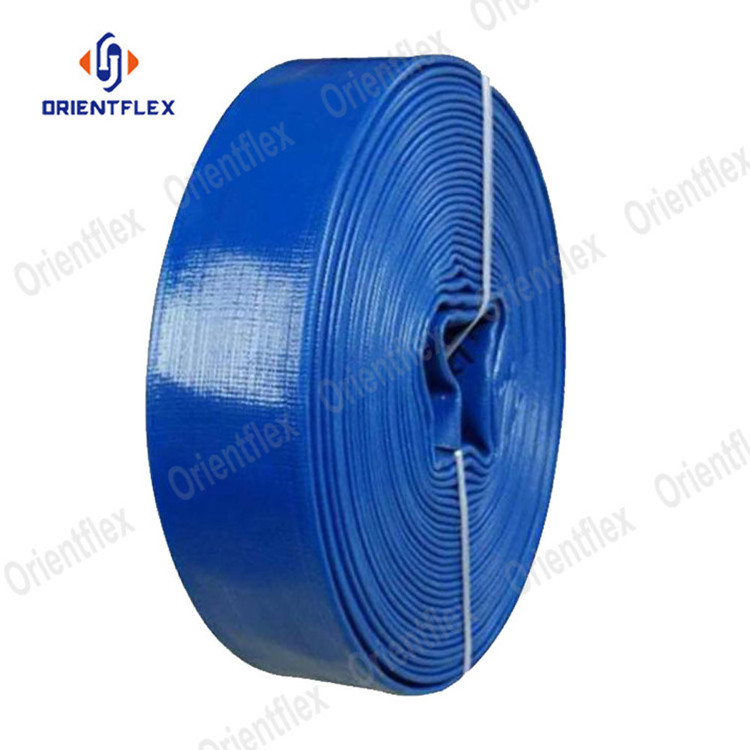

PVC LAYFLAT HOSE/Double PVC LAYFLAT HOSE
Construction:
Tube and Cover: PVC, blue,orange,red.
Reinforcement: high tensile polyester braiding
Application:
PVC layflat hose is designed for light and heavy duty applications,the hoses are most commonly used in agricultural equipment where continuous water flow through irrigation systems is required. Other appliaction include water pump, pool & spa, construction, mines and marine.
Characteristic:
Light weight,Good flexibility.
Corrosion resistant,anti-aging.
Easy handle & storage.
Various colors available.
Assemblies and/or cut lengths available.
| Specification (light duty) | |||||
| Item Code | I.D | Length | |||
| inch | mm | bar | bar | m/roll | |
| PLHL20 | 3/4" | 20 | 2-3 | 6-9 | 100 |
| PLHL25 | 1" | 25 | 2-3 | 6-9 | 100 |
| PLHL32 | 1-1/4" | 32 | 2-3 | 6-9 | 100 |
| PLHL38 | 1-1/2" | 38 | 2-3 | 6-9 | 100 |
| PLHL51 | 2" | 51 | 2-3 | 6-9 | 100 |
| PLHL64 | 2.5" | 64 | 2-3 | 6-9 | 100 |
| PLHL76 | 3" | 76 | 2-3 | 6-9 | 100 |
| PLHL102 | 4" | 102 | 2-3 | 6-9 | 100 |
| PLHL125 | 5" | 127 | 2-3 | 6-9 | 100 |
| PLHL153 | 6" | 153 | 2-3 | 6-9 | 100 |
| PLHL203 | 8" | 203 | 2-3 | 6-9 | 100 |
| Specification (standard duty) | |||||
| Item Code | I.D | W.P | B.P | Length | |
| inch | mm | bar | bar | m/roll | |
| PLHS20 | 3/4" | 20 | 4 | 15 | 100 |
| PLHS25 | 1" | 25 | 4 | 15 | 100 |
| PLHS32 | 1-1/4" | 32 | 4 | 15 | 100 |
| PLHS38 | 1-1/2" | 38 | 4 | 15 | 100 |
| PLHS51 | 2" | 51 | 4 | 12 | 100 |
| PLHS64 | 2.5" | 64 | 4 | 12 | 100 |
| PLHS76 | 3" | 76 | 4 | 12 | 100 |
| PLHS102 | 4" | 102 | 4 | 12 | 100 |
| PLHS125 | 5" | 127 | 4 | 12 | 100 |
| PLHS153 | 6" | 153 | 4 | 12 | 100 |
| PLHS203 | 8" | 203 | 4 | 12 | 100 |
| PLHS254 | 10" | 254 | 4 | 12 | 50 |
| PLHS305 | 12" | 305 | 4 | 12 | 50 |
| Specification (Medium duty) | |||||
| Item Code | I.D | W.P | B.P | Length | |
| inch | mm | bar | bar | m/roll | |
| PLHM19 | 3/4" | 20 | 6 | 21 | 100 |
| PLHM25 | 1" | 25 | 6 | 21 | 100 |
| PLHM32 | 1-1/4" | 32 | 6 | 21 | 100 |
| PLHM38 | 1-1/2" | 38 | 6 | 21 | 100 |
| PLHM40 | 1-1/2" | 40 | 6 | 18 | 100 |
| PLHM51 | 2" | 51 | 6 | 18 | 100 |
| PLHM64 | 2.5" | 64 | 6 | 18 | 100 |
| PLHM76 | 3" | 76 | 6 | 18 | 100 |
| PLHM102 | 4" | 102 | 6 | 18 | 100 |
| PLHM125 | 5" | 127 | 6 | 18 | 100 |
| PLHM153 | 6" | 153 | 6 | 18 | 100 |
| PLHM203 | 8" | 203 | 6 | 18 | 100 |
| Specification (Heavy duty) | |||||
| Item Code | I.D | W.P | B.P | Length | |
| inch | mm | bar | bar | m/roll | |
| PLHH20 | 3/4" | 20 | 10 | 30 | 50 |
| PLHH25 | 1" | 25 | 10 | 30 | 50 |
| PLHH32 | 1-1/4" | 32 | 10 | 30 | 50 |
| PLHH38 | 1-1/2" | 38 | 10 | 30 | 50 |
| PLHH40 | 1-1/2" | 40 | 10 | 30 | 50 |
| PLHH45 | 1-3/4" | 45 | 10 | 30 | 50 |
| PLHH51-1 | 2" | 51 | 8 | 24 | 50 |
| PLHH51-2 | 2" | 51 | 10 | 30 | 50 |
| PLHH64 | 2.5" | 64 | 10 | 30 | 50 |
| PLHH76-1 | 3" | 76 | 8 | 24 | 50 |
| PLHH76-2 | 3" | 76 | 10 | 30 | 50 |
| PLHH102 | 4" | 102 | 8 | 24 | 50 |
| PLHH102 | 4" | 102 | 10 | 30 | 50 |
| PLHH153 | 6" | 153 | 8 | 24 | 50 |
| PLHH203 | 8" | 203 | 8 | 24 | 50 |
Q: What is your MOQ?
A: Generally speaking, our MOQ is 1000 meters, which varies with different products.
Q: Could we pay a visit to your factory ?
A: Yes, you are always welcome to visit our factory.
Q: Can you send us a sample to test quality before ordering ?
A: Yes, we can provide sample by free but the freight and other charges is payed by the customers.
Q: Can you help us do the custom clearance ?
A: Yes, we can. We can help you find a professional custom clearance company to do it.
Q: Can we get the goods without your company name to export ?
A: Yes, we can. We are allowed to use your designated agent's name if you have one.
Q: Can you produce goods with special specification ?
A: First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible
