Quick Details
-
Brand Name:
-
Hilink
-
Use:
-
FTTX
-
Warranty Time:
-
3 Years
-
Key word:
-
100G QSFP28 40km ER4
-
Data transfer rate:
-
100G
-
Wavelength:
-
1310nm (WDM4)
-
Distance:
-
40km
-
Connector:
-
Duplex LC
-
DOM Function:
-
Yes
-
Hot-pluggable:
-
QSFP28 Interface
-
RoHS CE:
-
Compliant
-
Operating temperature:
-
0-70℃
-
Warranty:
-
3 Years
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
HL-QSFP28-100G-ER4
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hilink
-
Use:
-
FTTX
-
Warranty Time:
-
3 Years
-
Key word:
-
100G QSFP28 40km ER4
-
Data transfer rate:
-
100G
-
Wavelength:
-
1310nm (WDM4)
-
Distance:
-
40km
-
Connector:
-
Duplex LC
-
DOM Function:
-
Yes
-
Hot-pluggable:
-
QSFP28 Interface
-
RoHS CE:
-
Compliant
-
Operating temperature:
-
0-70℃
-
Warranty:
-
3 Years
100G QSFP28 30~40km ER4

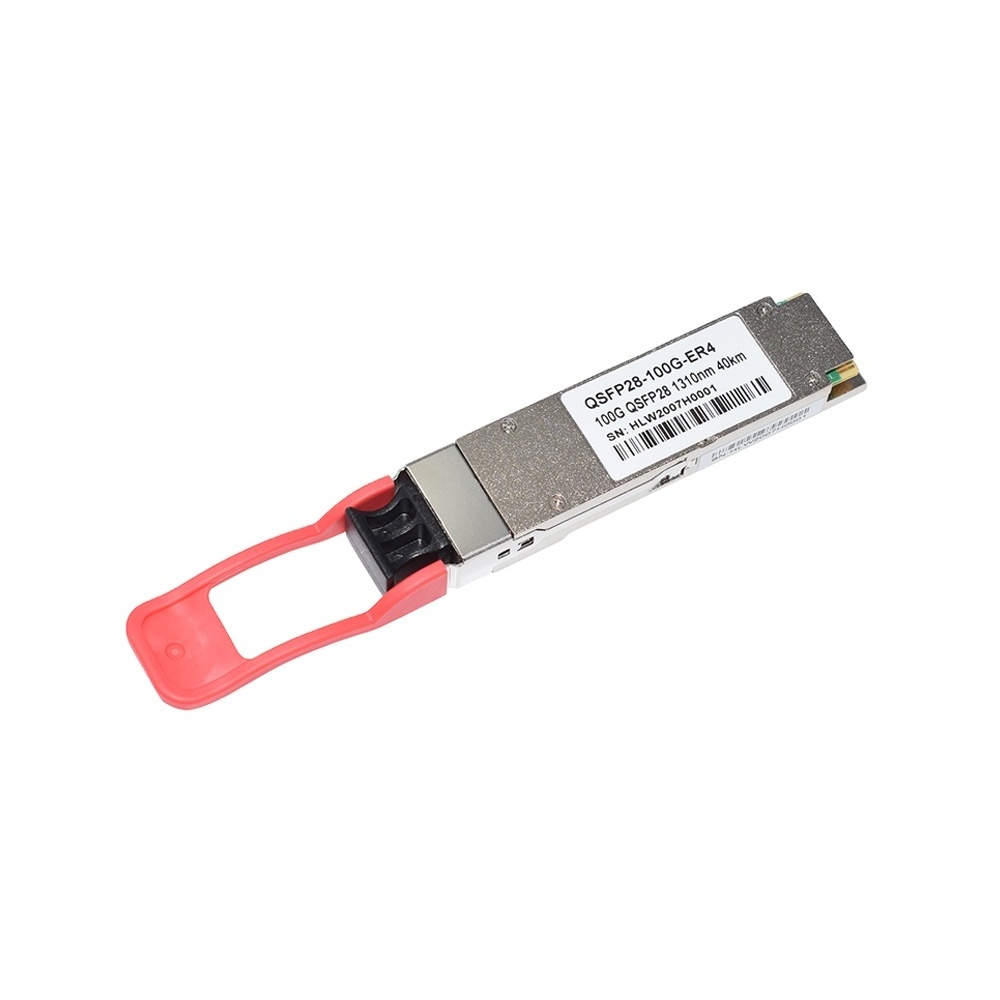

QSFP-100G-ER4L-S Compatible 100GBASE-ER4 QSFP28 1310nm 40km DOM Transceiver Module
The Hilink 100GE 4WDM-40 40km QSFP28 optical transceiver (HL-QSFP28-4ER4C) is designed for use in 100-Gigabit Ethernet links up to 30km without FEC or 40km with FEC on Single Mode Fiber (SMF). These 4-lane optical signals will be optically multiplexed into a single fiber by a 4-to-1 optical WDM MUX. The optical output power of each channel is maintained constant by an automatic power control (APC) circuit. The transmitter output can be turned off by TX_DIS hardware signal and/or 2-wire serial interface.
4 channels full-duplex transceiver module
Supports 103.125Gb/s aggregate bit rate
4 channels DFB-based LAN-WDM cooling transmitter
4 channels APD ROSA
Internal CDR circuits on both receiver and transmitter channels
3.8W maximum power dissipation
Maximum link length of 30km on SMF without FEC
Maximum link length of 40km on SMF with FEC
Duplex LC receptacle
Built-in digital diagnostic functions
Operating case temperature range: 0 to 70°C
Single 3.3V power supply
RoHS-6 compliant (lead free)
Applications:
100GBASE-ER4 Lite 100G Ethernet
100GE 4WDM-40 applications
Parameter
| Package (Form Factor) | QSFP28 ER4 |
| Data Rate (typical) | 25.78 Gbps/ Lane |
| Centre Wavelength | 1295.56,1300.05,1304.58,1309.14nm |
| Distance | 30~40km on SMF |
| Diagnostics | DDM |
| Transmitter | 4CH Cooled DFB |
| Receiver | 4CH APD |
| TX Output Power | -3~+5.2(dBm) |
| RX Sensitivity | -16.8(dBm) |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Duplex LC UPC |
