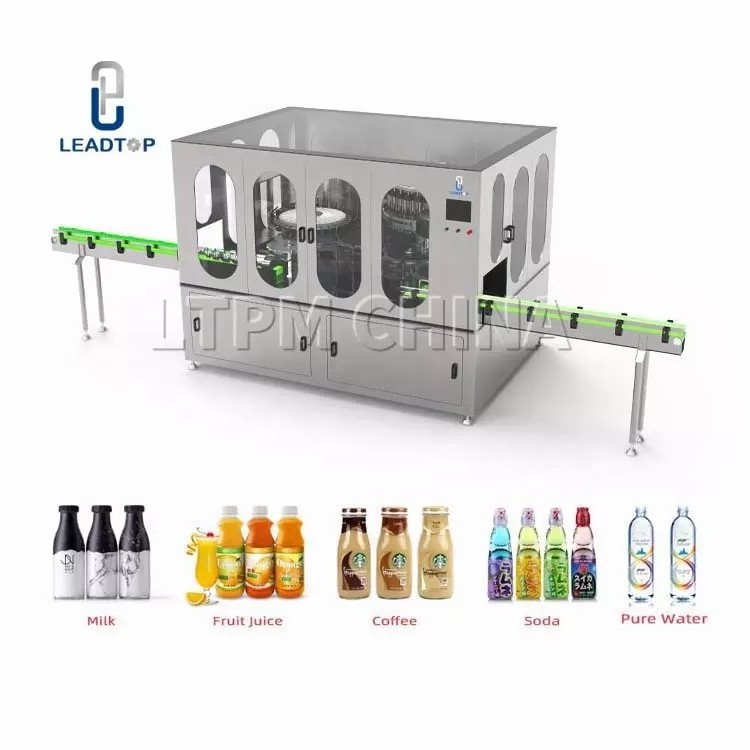

Leadtop Aseptic Bottle Filling Machine Lemonade Drink Filling Machine 6000 Bph Filling Machine

Leadtop Aseptic Bottle Filling Machine Lemonade Drink Filling Machine 6000 Bph Filling Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $16000

≥5 Sets

US $13000

≥10 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: ±0.1

Voltage:: 220V 380V

Place of Origin:: Zhejiang, China

Brand Name:: LTPM CHINA

Dimension(L*W*H):: 3000*2750*2500mm

Weight:: 12500 KG

Capacity:: 12000-36000BPH

Bottle Height(mm):: 120~310

Bottle Diameter(mm):: 50~96

Mouth Diameter(mm):: 26mm~40mm

Washing Head:: 24-80pcs

Filling Temperature:: 85-90℃

Filling Pressure:: 0.2~0.4Mpa

Filling Valve Flow:: 120~150ml/s

Capping Head:: 8-18

Weight(kg):: 6000-12500

Quick Details

Machinery Capacity:: 4000BPH, 8000BPH, Other, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH, 1000BPH

Packaging Material:: Plastic, Glass

Filling Material:: Beer, Other, Milk, Water, Oil, Juice

Filling Accuracy:: ±0.1

Voltage:: 220V 380V

Place of Origin:: Zhejiang, China

Brand Name:: LTPM CHINA

Dimension(L*W*H):: 3000*2750*2500mm

Weight:: 12500 KG

Capacity:: 12000-36000BPH

Bottle Height(mm):: 120~310

Bottle Diameter(mm):: 50~96

Mouth Diameter(mm):: 26mm~40mm

Washing Head:: 24-80pcs

Filling Temperature:: 85-90℃

Filling Pressure:: 0.2~0.4Mpa

Filling Valve Flow:: 120~150ml/s

Capping Head:: 8-18

Weight(kg):: 6000-12500

Warm hint:

1 -- Because the exchange rate is changing, the specific price of the machine may also change.

2 -- Our machines can be customized according to your requirements, we also provide you with complete packaging line design services. Each of your products has its own optional solution.

3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or "send inquiry" to contact us.

Simple Description

The RotaFill-series liquid bottles washing filling and capping machine

Juice, tea, milk based product, liquid food, energy drinks, milk tea, coffee and so on are all hot filling products. The variation of beverage has extremely high requirements for the production equipment. And success in Carbonated Soft Drinks (CSD) beverage production requires focus on flexibility and overall efficiency.

LTPM CHINA professional team will provide different solutions for different products. Every one of your products will have its optional solution.

Product Details

01.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

02.

-It adopts human-machine interface touch screen control, PLC computer control, frequency converter control and other technologies;

03.

-After rigorous analysis and calculation, the machine can automatically align the bottle mouth with the fixed bottle cup of the
conveying chain, and the use effect is good.

04.

-It adopts human-machine interface touch screen control, PLC computer control, frequency converter control and other technologies;

05.

-The main motor, reducer, main bearing, sealing parts, electrical components and pneumatic components of the whole machine are stable and durable.

06.

-All the parts in contact with the beverage are made of SUS304 stainless steel, and meet the hygienic standard.

07.

-The speed and accuracy of the machine are stable and the filling speed can be displayed.

Technical Data

Model	RotaFill-12	RotaFill-15	RotaFill-36
Capacity	12000BPH (500ml)	15000BPH (500ml)	36000BPH (500ml)
Bottle Height(mm)	120～310	120～310	120～310
Bottle Diameter(mm)	ф50～ф96	ф50～ф96	ф50～ф96
Mouth Diameter(mm)	26mm～40	26mm～40	26mm～40
Washing Head	24pcs	50pcs	80pcs
Washing Time	＞2second	1.5-2 second	＞2second
Filling Heads	24	50	80
Filling Temperature	85-90℃	85-90℃	85-90℃
Filling Pressure	0.2～0.4Mpa	0.2～0.4Mpa	0.2～0.4Mpa
Filling Valve Flow	120～150ml/s	140～160ml/s	120～150ml/s
Filling Pipe	SUS304, High temperature affordable
Capping Head	8	12	18
Capping Strength	0.6～2.8Nm	0.6～2.8Nm	0.6～2.8Nm
Main Power	5.5 KW	13 KW	15 KW
Air Consumption	1m 3/min	1m 3/min	1m 3/min
Sterilized Water Consumption	1.2m3/h	1.5m3/h	1.5m3/h
Overall Dimension（mm)	3000×2750×2500	3000×2750×2500	3000×2750×2500
Weight(kg)	6000	12500	12500

Features

1.Only exchanging “star wheel”, ”feeding screw” and “arc guide plate” while exchanging model of bottle to be need.

2.Adopting advanced valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.

3.Closing feeding valve automatically while no bottle on machine avoiding the loss of aqueous feet.

4.High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.

5.The “capping head” is adopted magnetic-constant-torque device to ensure the high capping quality and without
damages.

6.Adopting efficient cap settling system which carried perfect cap feeding and protection device.

7.Carried the perfect protection system to overload; it can be used to protect facilities and operators efficiently.

The primary electric components such as touch screen\PLC\transducer etc. are all adopted with world famous products.
