Quick Details
-
Insulation Material:
-
PE
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINHUI
-
Model Number:
-
1.5/2.5/4/6/10mm2
-

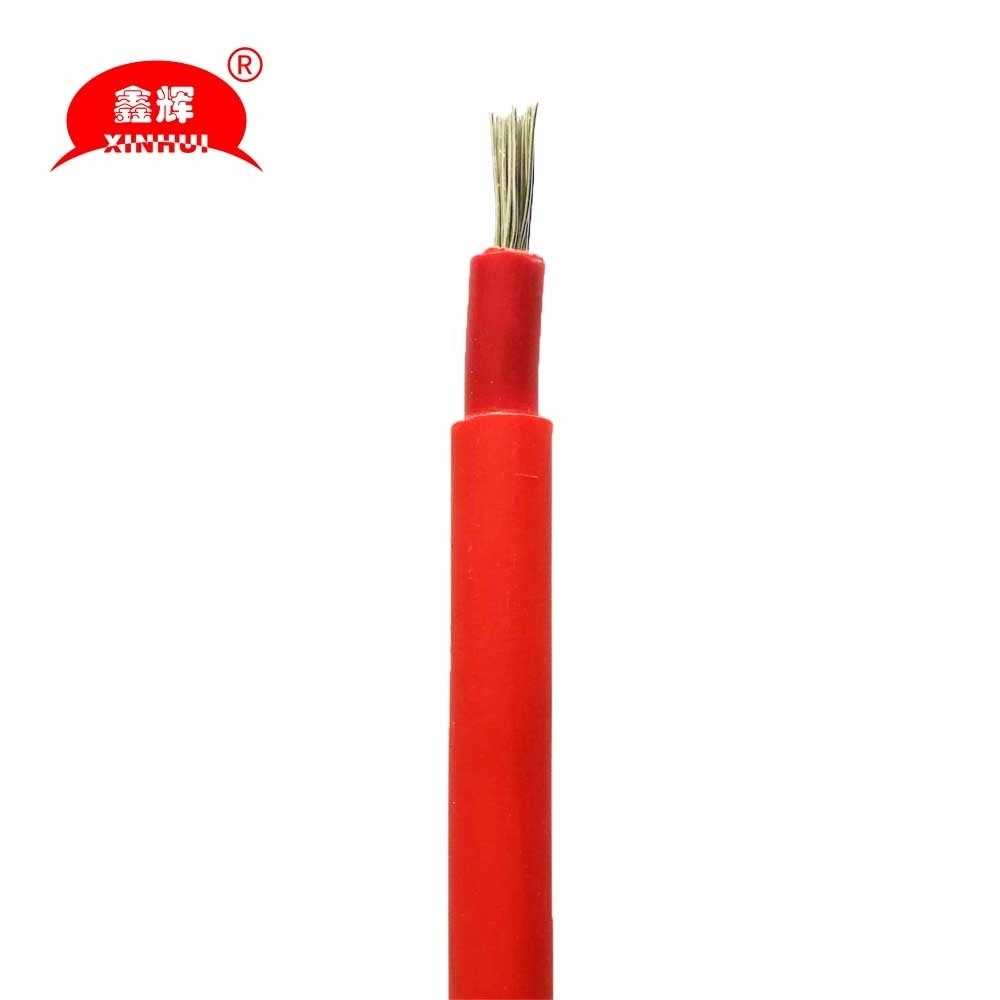

Product name:
-
Tinned Copper DC Power
-
Color:
-
Requirement
-
Insulation:
-
PVC Insulation Cable
-
Certification:
-
ISO9001//18001/14001/CCC
-
Usage:
-
Electronic Appliances
-
size:
-
4mm,6mm,10mm,16mm, 25mm
-
Conductor:
-
Tinned Cooper
-
Standard:
-
2PFG-1169
Quick Details
-
Application:
-
Construction, engineering, railway, factory construction, school, etc.
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PE
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINHUI
-
Model Number:
-
1.5/2.5/4/6/10mm2
-
Product name:
-
Tinned Copper DC Power
-
Color:
-
Requirement
-
Insulation:
-
PVC Insulation Cable
-
Certification:
-
ISO9001//18001/14001/CCC
-
Usage:
-
Electronic Appliances
-
size:
-
4mm,6mm,10mm,16mm, 25mm
-
Conductor:
-
Tinned Cooper
-
Standard:
-
2PFG-1169
Product Description
TUV Rehinland 2pfg 1169
Rated temperature; -40 Degree to +90 Degree
Voltage test on complete cable :6.5KV AC ,15KV DC ,5min
Max temperature at conductor: +120 Degree
the expected period of use is 25 years (Ambiet temperature -40+90Degree)
the permitted short-circuit-temperature refer to the period of 5s is +200 Degree
Bending radius : ≥4*Φ(D<8mm)≥6*Φ(D≥8MM)
Resistance against acid and alkaline solution : EN 60811-2-1
Cold bending test : EN60811-1-4
Ozone resistance at complete cable : EN50396
Fire test : IEC 60332-1
Rated temperature; -40 Degree to +90 Degree
Voltage test on complete cable :6.5KV AC ,15KV DC ,5min
Max temperature at conductor: +120 Degree
the expected period of use is 25 years (Ambiet temperature -40+90Degree)
the permitted short-circuit-temperature refer to the period of 5s is +200 Degree
Bending radius : ≥4*Φ(D<8mm)≥6*Φ(D≥8MM)
Resistance against acid and alkaline solution : EN 60811-2-1
Cold bending test : EN60811-1-4
Ozone resistance at complete cable : EN50396
Fire test : IEC 60332-1
Specification
|
Cross Section
|
Conductor
Construction |
Conductor
Stranded O.D (MM) |
Insulation
I.D.(mm) |
Jacket OD.(mm)
|
Conductor MAX Resistance
|
|
1.5
|
30/0.25
|
1.58mm
|
2.9
|
4.5
|
13.7
|
|
2.5
|
49/0.25
|
2.02mm
|
3.4
|
5.0
|
8.21
|
|
4.0
|
56/0.30
|
2.60mm
|
3.9
|
5.5
|
5.09
|
|
6.0
|
84/0.30
|
3.42mm
|
4.7
|
6.5
|
3.39
|
|
10.0
|
84/0.40
|
4.56mm
|
6.2
|
8.0
|
1.95
|
