Quick Details
-
Capacity:
-
50-175kg
-
scale:
-
warehouse shelf
-
color:
-
any color is available
-
material:
-
Q235B
-
post:
-
30*30/32*32/33*33/35*35/34*34/37*37/38*38/40*40
-
beam:
-
Z type/T type
-
capacity:
-
50-175kg
-
standard size:
-
1000*500*2000mm
-
shelves:
-
steel shelves/ wire mesh shelves/ MDF shelf
-
OEM:
-
available
-
side bracing:
-
available
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jiayuan
-
Model Number:
-
JY-AWS15
-
Capacity:
-
50-175kg
-
scale:
-
warehouse shelf
-
color:
-
any color is available
-
material:
-
Q235B
-
post:
-
30*30/32*32/33*33/35*35/34*34/37*37/38*38/40*40
-
beam:
-
Z type/T type
-
capacity:
-
50-175kg
-
standard size:
-
1000*500*2000mm
-
shelves:
-
steel shelves/ wire mesh shelves/ MDF shelf
-
OEM:
-
available
-
side bracing:
-
available

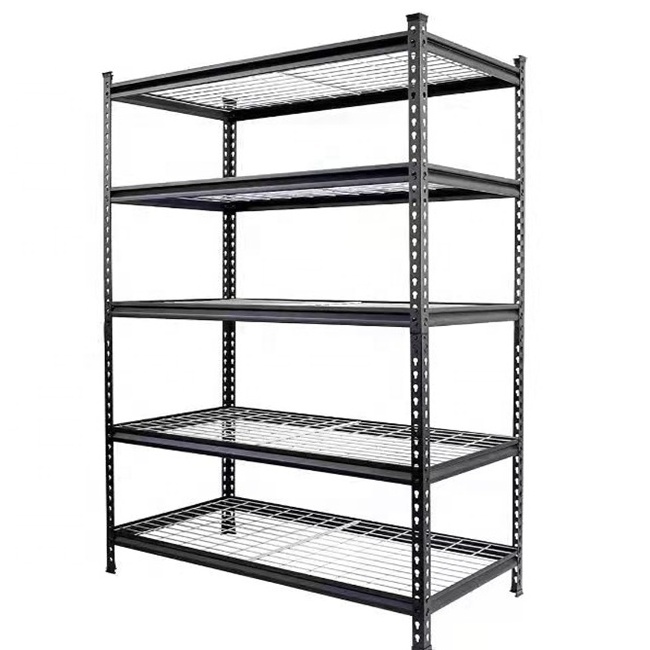

5 Layers 1000*500*2000 Shelving Angle Rack Metal Angle Steel Post Light Duty Muscle Rivet Boltless Shelf
Product details
| scale | warehouse shelf |
| color | any color is available |
| material | Q235B |
| post | 20*20/25*25/30*30/32*32/33*33/35*35/34*34/37*37/38*38/40*40/38*57/40*60 |
| beam | Z type/T type/L type/ C type |
| capacity | 50-275kg |
| standard size | 900/1000/1100/1200/1500/1800* 400/450/500/550/600* 1830*1530*2130 |
| shelves | steel shelves/ wire mesh shelves/ MDF shelf |
| Accessories | plastic caps/ screws for other model |
| Customized | side bracing/ support bar/logo/ carton quality |
| Product Keywords | Wire decking shelves angle shelving,boltless steel shelfs with wire mesh,rivet angle shelfs |
| Special details | each layer is with two pcs support bar |
| Post holes | circle hole/gourd hole/long hole/inverted round hole/elliptical hole/thermal hole/inequilateral angle |
Boltless Rivet Shelving (industrial shelving) also called boltless rivet rack or bolt-free rivet racks. It can be installed quickly and easily without any tools only using a rubber mallet.
Rivet Rack is so strong and rigid that it is capable of holding very heavy and bulky loads. It consists of posts, beams, boards/shelves/panels, plastic connections and plastic foot pad. With these standard components, you can form very stable and accessible shelving units with the capacity of up to 1,850 lbs. per shelf level.
The material of the boards/shelves/panels can be Particle board, Melamine MDF, wood and so on. The shelf distance can be adjusted on 1-1/2" centers, for which rivet shelving offers a world of versatile solutions for many shelving applications.
Rivet bulky shelving is designed to provide a cost-effective storage solution for retail, wholesale or industrial goods.
Feature:
1, size:1000*500*2000mm
2,Special : Wire shelves + support bar for each layer shelves
3,capacity:150kg, capacity rangee from 50-275kg.
4, easiy assmeble, no any bolts
5,any color is available.
6,other model is available. europe type, apple hole type,any angle type..
7, Shelves: Wire decking panel shelves. Other choice :plate can be wood panel or steel board.
8,with plastic cap
9,upright: 37*37*1.2mm, other :35*35,40*40,32*32....
10,beam: 50*60mm, Z type.
11, Support bar: each layer is with two pcs support bar
12, Special: For home, office, hospital,workshop ,warehouse using, ligth duty, easily assembled, beatiful model, strong capacity, with cross support bar..
13, upright can be one complete , also can be made up of two smaller pieces.If so, can one set one carton package.
14, Carton color print logo is available. High class carton to avoid damage goods. Carton corner is with plastic corner protector.
PACKAGE:
Standard export carton and bubble foam packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
