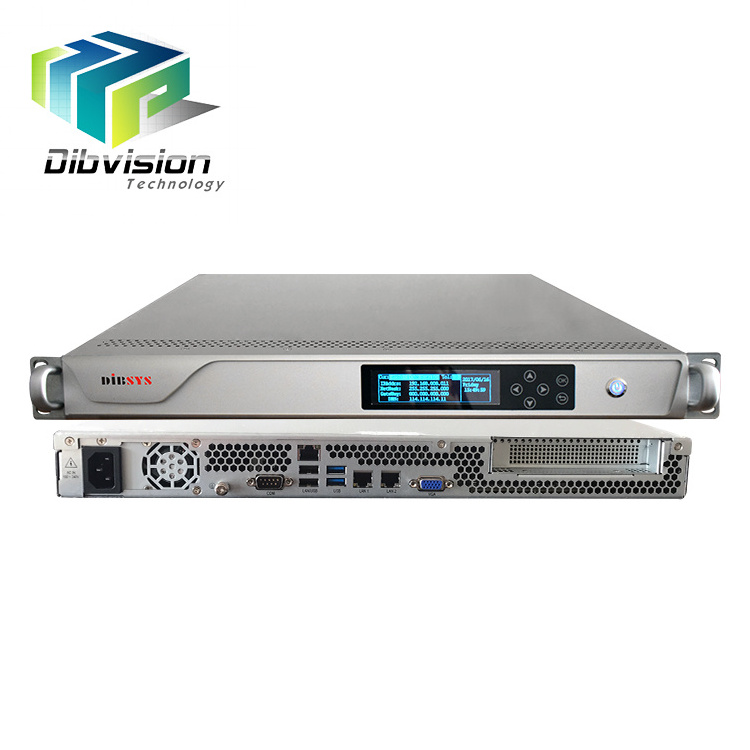

Caster-T323 OTT iptv to mpeg2 transcoder gpu streaming server, canada, arabic iptv box

FOB Reference Price: Get Latest Price

≥2 Sets

US $7695

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Interfaces:: Four Gig Ethernet Ports

Channels:: 50*SD or 16*720p or 12*Full HD or 2* 4K

Input:: MPEG-TS(MPTS or SPTS)/IP

Output:: MPEG-TS (SPTS)/IP

Streaming Protocol:: HTTP RTMP RTSP UDP HLS SDP SRT

Video codec:: H.264/H.263/MPEG-4

Audio Codec:: AAC AC3 AMR MP2 MP3

Resolution:: 1080P 720P SD (Auto)

Application:: IPTV OTT Systems

Product name:: iptv to mpeg2 transcoder

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Dibvision

Model Number:: Caster-T323

Interfaces:: Four Gig Ethernet Ports

Channels:: 50*SD or 16*720p or 12*Full HD or 2* 4K

Input:: MPEG-TS(MPTS or SPTS)/IP

Output:: MPEG-TS (SPTS)/IP

Streaming Protocol:: HTTP RTMP RTSP UDP HLS SDP SRT

Video codec:: H.264/H.263/MPEG-4

Audio Codec:: AAC AC3 AMR MP2 MP3

Resolution:: 1080P 720P SD (Auto)

Application:: IPTV OTT Systems

Product name:: iptv to mpeg2 transcoder

Product Description

Caster-T323 OTT iptv to mpeg2 transcoder gpu streaming server, canada, arabic iptv box

Caster-T323 provides an "all-in-one" solution for streaming video to any hardware device or software player and the suitable solution to Terrestrial, Satellite, Cable, IPTV networks. It is a real-time multi-channel/format transcoder can support 50*SD or 16*720p or 12*FullHD streams Simultaneously. It converts HD/SD streams to any H.264 or MPEG-2 format, bitrate and resolution. With the support for various encapsulation formats base on UDP, RTP/ RTSP, Pull/Push HTTP, RTMP, HLS protocols.

This transcoding system flexible enough to adapt content to any common device's network or streaming protocol. Each video stream is fully synchronized, to deliver exceptional picture quality in any network condition with dynamic, frame accurate and seamless transition between profiles on the viewer's screen.

Additional options for stream adaptation, such as deinterlacing, video scaling, frame rate conversion, and audio volume and sample rate conversion allow for serving set-top boxes, tablets, mobile phones and others.

Features

High density 1-RU platform can transcode up to 50*SD or 16*720p or 12*Full HD profiles
Creates simultaneous High,Medium, and Low bitrate streams (profiles) of MultiScreen IPTV application
Baseline, main profile & high profile with variable GOP
Mulltiple Codec, Protocol, Bitrate ,Resolution, Profile per channel
Compatible with external MPEG-DASH packager for OTT delivery (option)
Picture-in-picture (PIP) operation supported
HD-to-SD down, SD-to-HD up conversion
GbE IP outputs –RTMP, HTTP Live Streaming and HLS encrypted function, Pull/Push
HTTP/RTSP, RTMP, UDP, SDP, SRT protocol
Flexible GOP structures with Reference-frame and B-frame edit
Frame rate down- and up-conversion
High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion
Based on embedded Ubuntu Linux via flashdisk
The preview interface adds color control adjustment (CCATM) function (video output brightness, contrast, saturation, aberration).
TS parameter configuration: The output stream can be edited to change the program number, program name, supplier (for video output part), easy to identify end device.
text logo, picture logo insertion
High contrast LCD display
Parameter template settings and imports
Real time preview of input video stream in encoding and parameter configuration
Support multiple devices unified management
Easy configuration via Web GUI
Designed for secure 24*365 operation

Main Application

Distribute Lowest bitrate HD Video to Ethernet
Bandwidth reduction for Internet/OTT streaming and wireless networks
IPTV live stream transcoding
Transcoding for multi-screens and devices for set-top boxes, tablets, mobile phones
Small/Middle-Scale Headends for Multiple System Operators
VOD archives from live streams

Technical Specifications

Input s and Outputs

Connector

four Gig Ethernet Ports

RJ45 100/1000M - Auto Negot

MPEG-TS(MPTS or SPTS) Over IP input

MPEG-TS (SPTS) Over IP out

TS Over UDP/RTP/HTTP

RTP over HTTP

FLV Over HTTP

RTMP

MP3 over HTTP

FLV

ASP

HTTP Live streaming Apple HLS (m3u8)

Pre-processing

LOGO insertion

Subtitle Overlay

Option Static or roll subtitle, up to 3 way

Deinterlace

default, Close, Linear, Blend, Bob, Yadif

PID Configuration

PMT/Video/Audio PID;

PCR delay/disp interval

Advanced Processing

In-loop De-blocking filter

Scene detection, CABAC.

CAVLC Entropy coding Automatic

PicAFF, MBAFF Interlaced coding Automatic

Flexible Macroblock Ordering(ASO) and Arbitrary

Slice Ordering(ASO) in Baseline profile

Flexible Macroblock Ordering(FMO) and Arbitrary

Slice Ordering(ASO) in Baseline Profile

8x8 vs, 4x4 Transform Adaptivity in High profile

Quantization Scaling Matrices in High profile

I, B and P Slices, Multiple Reference Frames

Video Processing

Bitrate Control

VBR,CBR,ABR,NearCBR

Frame rate

2-30fps

Screen Ratio

4:3, 16:9

Option Multiple concurrent outputs per each encoding input

Video codec

H.264 Main/High Profile 3.0- 5.1

H.264 Baseline Levels 1, 2, 3

H.263 Profile Levels 10, 20, 30

MPEG-4 SP, Levels 0, 0b, 1, 2, 3

Encoding delay

1000-1500ms

B-Frame

0-5

Reference Frame

1-6

Key frame rate

1-18

Video Bitrate

32kbps to 10Mbps

Video Delay

0-1000ms

Scale

Ordinary, Auto Padding intelligent Scale

Fast Mode

Quality Priority, Balanced, Speed Priority

Resolution

3840x2160p(UHD)

1920x1080p,1280x720p

720x576p, 720x480p, 640x480p, 480x360p,

Configurable

MPEG-2 Input	H.264 Output	Qty
SD/480i inputs @4 Mbps	SD @2Mbps, 480P	50
720p inputs @10 Mbps	720p @4Mbps	16
1080i/p inputs @18 Mbps	1080p @ 6Mbps	12

Audio Processing

Numbers of encoding

2 audio Channels per one video source

(Provides up to 8 audio channels for customization)

Audio encoding

AAC, AACv2, AMR

DD(AC-3)

DD(EAC-3)

MP2A,MP3A,Transparent

Audio Channel

Single, Dual, 5.1 Channel

Audio Track

0, 1, 2, 3

AV Sync

0s, 0.5s, 1s, 3s, 4s, 5s, 6s

Sample rate

8khz to 48khz

Bitrate rate

8kbps to 384kbps

Volume

Ordinary,Intensity1,Intensity2,Intensity3

AGC

On, Off

Management

Local interface

Front panel keypad and LCD

Configuration

Web browser interface

Port

RJ45, 10/100/1000M Base-T

Language

English

Environment

Cooling

Front to rear airflow

Power Supply

110-240 VAC

Operation temperature

0~50℃ (32 -122°F)

Storage temperature

-40-70°C (-40-158°F)

Power Consumption

200W

Dimensions

483mm (W) x 534mm (L) x 45mm (H)

Weight

11kg (24lbs)
