Quick Details
-
Working pressure:
-
0.4~2.5 Mpa
-
Medium density:
-
≥0.5g/cm3
-
Working temperature:
-
-30~160 centigrade
-
Contact capacity:
-
AC220V, 1A(Resistive); DC24V, 0.5A
-
Electric interface:
-
M20 X 1.5, female thread
-
Process connection:
-
DN50, DN80, DN100
Quick Details
-
Grade:
-
Industrial
-
Place of Origin:
-
China, China,Shanghai
-
Brand Name:
-
CERTEON
-
Working pressure:
-
0.4~2.5 Mpa
-
Medium density:
-
≥0.5g/cm3
-
Working temperature:
-
-30~160 centigrade
-
Contact capacity:
-
AC220V, 1A(Resistive); DC24V, 0.5A
-
Electric interface:
-
M20 X 1.5, female thread
-
Process connection:
-
DN50, DN80, DN100
Introduction:

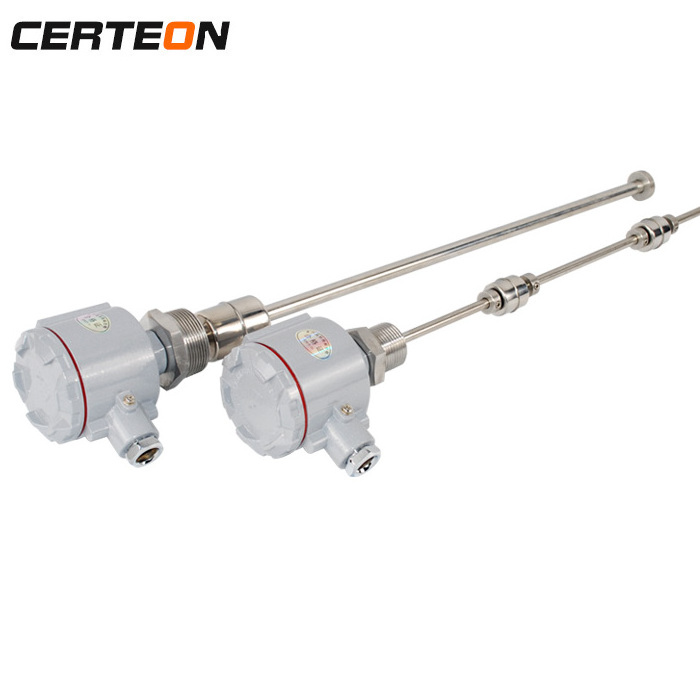

Float level switch is a simple structure, easy to use level control device, it does not need to provide power, no complicated circuit, it has a smaller than the general mechanical switch, long life and other advantages. As long as the material selection is correct, and any nature of the liquid or pressure, the temperature can be used in the shipbuilding industry, generator equipment, petrochemical, food industry, water treatment equipment, dyeing and finishing industry, hydraulic machinery, etc. are widely application.
working principle:
The level sensor is mainly composed of a reed switch and a float, which contains magnetic material, one or more reed switches in a closed non-permeable metal pipe or plastic tube, and then passes the conduit through one or more With a magnetic material of the float, and the use of fixed double-ring control float and reed switch in the relevant position, the float with the liquid rise or fall, the use of the ball near the beginning of the magnetic spring contacts, For level control or indication (when the float is close to the reed switch is turned on; off when the switch is off).
|
Parameter |
|
|
Temperature |
minus 20 ℃ ~120 ℃ (200 ℃ Max.) |
|
Pressure |
(-1.0~3.5)MPa ------- metal type; (0~0.5)MPa ------- plastic type |
|
Contact rating |
50W/250VAC,200VDC 40W/250VAC 10W/110VAC |
|
Rated current |
0.2A(50W) ,0.16A(40W) ,0.1A(10W) |
|
Max working current |
1A(50W,40W) , 0.5A(10W) |
|
Measuring range |
0~8000mm |
|
Accuracy |
± 10mm |
|
Contact power |
≤ 70W |
|
Head |
P.C(option:ADC12) |
|
Enclosure |
weather proof(IP65) option EX-proof(Exd II c 76 IP65) |
|
Temperature in the vessel |
minus 15---80 ℃ |
|
Contact type |
SPST/option SPDF |
|
Connection |
threaded or flanged |
