Automatic carton packing palletizing line,Single Arm Rotate Column Carton Case Palletizer Machine

Automatic carton packing palletizing line,Single Arm Rotate Column Carton Case Palletizer Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: DALSON

Dimension(L*W*H):: L4000*W2500*H2800 (As Fact Design)

Weight:: 4000 KG

Product Name:: Small palletizer machine/bottle carton box palletizer machine

Capacity/Speed:: 0~30Casess/min

Applicable Product:: Carton Box, PE Film Shrink Package Case

Application Fields:: Beverage, Wine, Food, Oil, Powder etc

Operational mode:: Intelligent HMI

PLC:: SIEMENS, Mitsubishi,Schneider

Touch Screen:: SIEMENS, Schneider

Drive Motor:: SEW,SITI,JSCC,WANXIN,TONGYU,OAMT

Air Cyclinder:: AirTAC, FESTO, SMC

Relevant Corollary Equipment:: Carton Packer Machine, PE Film Shrink Wrapper Packing Machine,etc

Quick Details

Application:: Food, Beverage, Commodity, Medical, Chemical, APPAREL

Packaging Material:: Plastic, Paper, Metal, Wood

Voltage:: 220V,380V,415V

Place of Origin:: Shanghai, China

Brand Name:: DALSON

Dimension(L*W*H):: L4000*W2500*H2800 (As Fact Design)

Weight:: 4000 KG

Product Name:: Small palletizer machine/bottle carton box palletizer machine

Capacity/Speed:: 0~30Casess/min

Applicable Product:: Carton Box, PE Film Shrink Package Case

Application Fields:: Beverage, Wine, Food, Oil, Powder etc

Operational mode:: Intelligent HMI

PLC:: SIEMENS, Mitsubishi,Schneider

Touch Screen:: SIEMENS, Schneider

Drive Motor:: SEW,SITI,JSCC,WANXIN,TONGYU,OAMT

Air Cyclinder:: AirTAC, FESTO, SMC

Relevant Corollary Equipment:: Carton Packer Machine, PE Film Shrink Wrapper Packing Machine,etc

Shanghai Dalson Packing Machinery Co.,Ltd.

Product Description

<Main Type Palletizer In The Market>

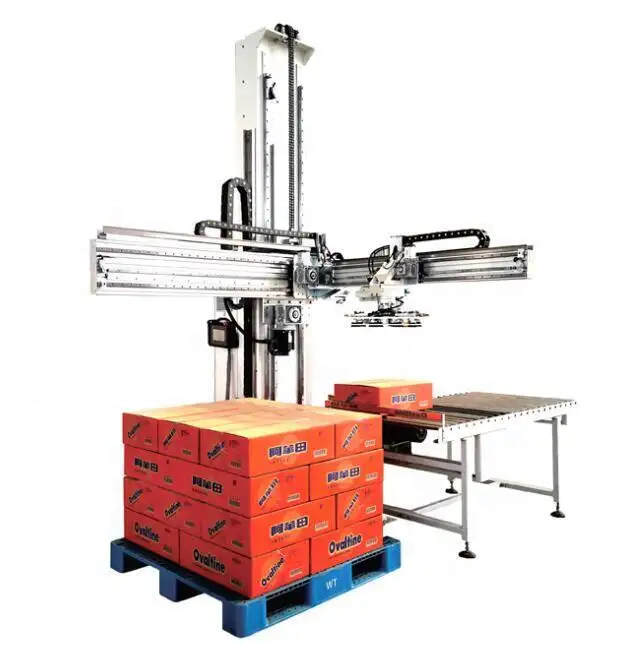

DSCP Series Automatic Single Column Palletizer Machines

DSCP series Gantry Palletizer M achine mainly use for automatically palletizing of kinds of Carton Box,PE Film Shrink Wrapped Cases according to program setup pattern to finished palletizing products on the pallet one by one layer. T his kind machine suitable for process of water,beverage,oil,etc production line, and also suitable for bottle s, cans ,etc products ca se packing work in other industries.

DSCP Series Gantry Palletizer Machine could independent finish products feeding,grouping arrange,empty pallet feeding, whole layer palletizing and full pallet feeding out works in continuously and automatically.

Also could according to client’s different products special requirement to improve design for achieved palletizing works . Such as change to Single Case Grasp Head or Whole Layer Cases Grasp Head, Optional match with Empty Pallet storage and dispenser device with main palletizer working together.

Model:	DSCP-10	DSCP-20	DSCP-30
Palletizing Speed:	6~10Cases/min	10~20Cases/min	20~30Cases/min
Applicable:	Various Carton Box, PE Film Shrink Package Case, Bags, Barrel, etc
Power Rate:	About 10.0KW	About 12.0KW	About 15.0KW
Voltage:	220 V/380V,3Phase, 50Hz/60Hz
Air Consumption:	0.5 m3/h	0.6 m3/h	0.7 m3/h
Air Pressure:	0.5-0.8Mpa
Working db:	≤ 75db	≤ 75db	≤ 75 db
Machine Weight:	About 400 0 KG	About 450 0 KG	About 480 0 KG
Dimensions:	At least need W5000mm*5000mm Space (As Fact Design)

Gantry Palletizer Machine Characteristics:

1. Adopt intelligent HMI to control & display machine running action status and with alarm function in real time.
2. Through multiple buffer design to realize running smoothly, and minimize the possibility of injury to the products.
3. Packing speed is adjustable (controlled by frequency converter).
4. Equipped with the safety protection function of accidental door opening. When the machine under running state , the machine stops and gives an alarm, and the indicator light flashes if accidental open the door.
