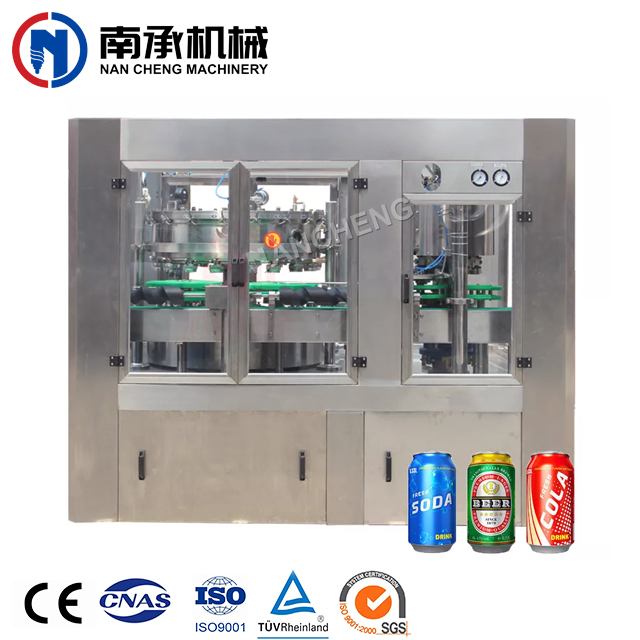

compact rotary automatic Energy drink beverage beer aluminium tin can making maker filling seaming and canning machine line

compact rotary automatic Energy drink beverage beer aluminium tin can making maker filling seaming and canning machine line

FOB Reference Price: Get Latest Price

≥1 Sets

US $10500

≥5 Sets

US $9000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: 99.9%

Voltage:: 220/380V

Place of Origin:: Jiangsu, China

Brand Name:: nancheng machinery

Dimension(L*W*H):: 2400*1670*2350mm

Weight:: 4000 KG

Product name:: soda can filling machine

Function:: can filling and seaming machine

Filling material:: water/beverage/juice/beer

Bottle type:: aluminum/plastic can

Material:: Stainless Steel 304/316

Capacity:: 2000~40000BPH

Filling volume:: 200ml-2000ml

Control:: PLC+ Touch Screen

Advantage:: 20 Years Experiences

Quick Details

Machinery Capacity:: 4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH

Packaging Material:: Wood

Filling Material:: Water

Filling Accuracy:: 99.9%

Voltage:: 220/380V

Place of Origin:: Jiangsu, China

Brand Name:: nancheng machinery

Dimension(L*W*H):: 2400*1670*2350mm

Weight:: 4000 KG

Product name:: soda can filling machine

Function:: can filling and seaming machine

Filling material:: water/beverage/juice/beer

Bottle type:: aluminum/plastic can

Material:: Stainless Steel 304/316

Capacity:: 2000~40000BPH

Filling volume:: 200ml-2000ml

Control:: PLC+ Touch Screen

Advantage:: 20 Years Experiences

Product Description

Product Features

The series equipment is used in producing all kinds of carbonated or non-carbonated liquid with container Washing, filling,sealing and can carried out on the same machine.The design of the machine is scientific and reasonable.

A fully connected line helps you optimise performance and make smarter decisions across the lifetime of your line. Our holistic approach supports your need for increased flexibility and efficiency, with minimal waste, quick SKU changeovers and lower environmental costs. Reductions in resource consumption and bottle weight, consistent bottle durability and high efficiency are all achieved through careful packaging design, detailed equipment planning and a flexible line setup.

Applicable Products：	Cola, soft drinks, gas soda, beer,energy drinking,etc.
Suitable Container：	Plastic can, pet can , Metal can ,250ml-500ml
Filling Mode：	Mechanical valve filling or electronic valve filling
Production Capacity：	8000 bottles/hour – 10000 bottles/hour

Technical Parameters

Model	NC12-4C	NC18-4C	NC24-6	NC36-6
Filling heads	12	18	24	36
Capping heads	4	4	6	6
Capacity /CPH	3000	6000-8000	8000-10000	18000
Power /KW	3.5	5.5	5.5	7.5
Weight/KG	3500	4000	5300	8000
Overall Size/MM	335021502100	340019501900	335021502100	348822882168

Details Images

Semi-automatic palletizer

This machine design science is reasonable, modelling is beautiful.Convenient operation and maintenance,this machine is mainly used in the unloading process of the can.

Empty tank spray washer

Scope of application: water spraying and drying on the slope of the tin can. water spraying box made by stainless steel structure.The built-in ￠32 mm stainless steel spray pipe, divide into two segments, hot and cold water tank temperature higher than 85 degrees.

FILLING PARTS

1. The filling machine is designed and manufactured by our company by introducing German technology and applying the principle of atmospheric pressure filling, which can realize the filling of liquid into the washed cans.

2. The filling adopts the gravity filling principle.

3. Filling valve adopts mechanical valve, with fast filling speed and high liquid level precision.

4. With perfect CIP cleaning function.

5. Adopt the combination of filling valve mouth with guiding device and bottle bottom lifting device to make the accurate sealing of bottle mouth and filling valve and reduce the phenomenon of material leakage from the can mouth.

6. According to the different heights of cans, manual lifting can be realized to meet the filling requirements.

7. Gear transmission is adopted for its high efficiency, low noise, long life, easy maintenance and sufficient lubrication.

8. Bottle guiding system, simple structure, can be changed quickly and easily according to the can type, the whole machine adopts can bottom structure conveying.

9. PLC automatic control of the whole machine, fault online display, such as blocked bottles, lack of lids, etc.

10. It has safety protection functions such as no cans, no valve opening, no lid adding and lid stopping.

11. Automatic control of material in the filling cylinder, the liquid level height is detected by liquid level sensor to make the
liquid level stable.

SEAMING PARTS

a. The sealing part seals the lid on the filled cans and sends them to the later process by conveyor chain.

b. The sealing roller is hardened by high hardness alloy (HRC>62) and the sealing curve is precision machined by optical curve grinding to ensure the sealing quality and normal operation of the machine.

c. The machine has the control system of putting down the lid with cans and not putting down the lid without cans to ensure the normal operation of the machine and reduce the rate of lid loss.

d. Manually put the aluminum lid in the sliding groove and rely on the gravity of the lid and the thruster to lower the lid, and
there is a detection switch in the sliding groove to stop the machine when the lid is missing.

e. According to the different height of cans, the capping machine can be lifted manually to meet the requirements.

1. Material of filling valve:	Stainless steel 316L available
2. Material of rotary tray and machine platform of rinser and filler:	Stainless steel 304.
3. Main motor:	ABB/SEW (Germany)
4. Sliding bearing:	Igus (Germany)
5. Frequency inverter:	MITSUBISHI (Japan)
6. Touch screen:	DIGITAL (Japan).
7. PLC:	MITSUBISH (Japan)
8. Pneumatic components:	FESTO (Germany)
9. Seals:	Busak+Shamban (USA)
10. Photocell switch:	BANER (USA).
11. Proximity switch:	TURCK (Germany).

Production Process

1-Water Treatment.

1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump

Benfits.

1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame

2 - Bottle Cooling System

- Mainly for cooling and sterilization
- The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
- Nozzles are manufactured using U.S. technology and spray water evenly
- Conveyor belt adopts Rexnor technology, flat surface with small wear
- Smooth and reliable operation with low energy consumption

3-Bottle Inverter Chain.

- Use juice own high temperature to kill the bacterial inside cap.
- Use juice own high temperature to improve sealing of bottle to extend warranty time.
- Use SUS 304/316 stainless steel chain and high polymer material conveyor to keep high quality and increase service life.

4-Labeling Machine.

Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 72,000 containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production

5 -Packing Machine.

Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes. Whether you choose shrink-printed film, nested packs or wraparound cartons, King Machine packers gently feed bottles to ensure durable and cost-effective packs.

Benfits.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
