Nylon PA66,assembly X Type 2 pin 3 pin 4 pin waterproof connector,screw fixing type cable splitter connector.
2.
UL,SAA,CE,RoHS,ISO 9001 certification.
3.
The installation process is very simple.
4.
Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
5.
Waterproof connector wire gauge:
2*0.75 mm2, 2*1.0 mm2, 2*1.5 mm2
3*0.75 mm2, 3*1.0 mm2, 3*1.5 mm2.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong,China
-
Brand Name:
-
AOHUA
-
Model Number:
-
AH-M23-X
-
Pin Number:
-
2,3,4 Pin
-
Connector Type:
-
Screw Fixing
-
Voltage Rating:
-
300V
-
IP Code:
-
IP67/IP68
-
Color:
-
Black
-
Current Rating:
-
35A
-
Certificate:
-
CE/RoHS/UL/SAA
-
Operating Rating:
-
-40°C~+105°C
-
Shell Material:
-
Copper
-
Cable OD:
-
6.5 mm-15 mm
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Power Cable Splitter
-
Gender:
-
Not Male/Female Type
-
Place of Origin:
-
Guangdong,China
-
Brand Name:
-
AOHUA
-
Model Number:
-
AH-M23-X
-
Pin Number:
-
2,3,4 Pin
-
Connector Type:
-
Screw Fixing
-
Voltage Rating:
-
300V
-
IP Code:
-
IP67/IP68
-
Color:
-
Black
-
Current Rating:
-
35A
-
Certificate:
-
CE/RoHS/UL/SAA
-
Operating Rating:
-
-40°C~+105°C
-
Shell Material:
-
Copper
-
Cable OD:
-
6.5 mm-15 mm
Product Description

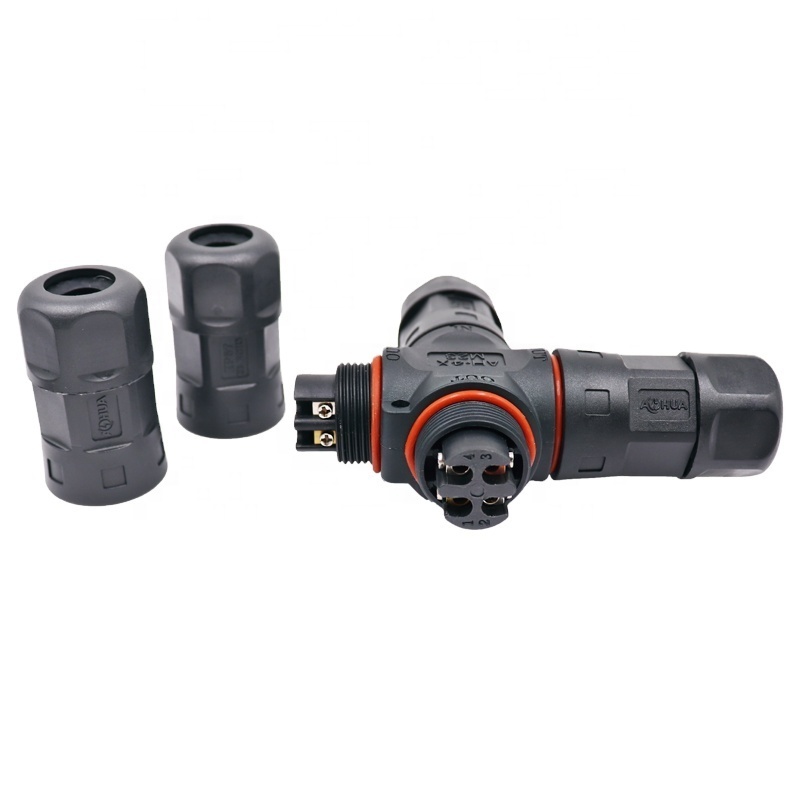

M23 X Type 4 Way Screw Power Connecting Line 4 Pin Waterproof Connector
|
Pins
|
Part Number
|
Wire Guage
|
Voltage Rating
|
Current Rating
|
|
2
|
AH-M23-3502X01122
|
≤4.0mm²
|
300V
|
35A
|
|
3
|
AH-M23-3503X01122
|
≤4.0mm²
|
300V
|
35A
|
|
4
|
AH-M23-2004X01122
|
≤2.5mm²
|
300V
|
20A
|
|
Contacts Number
|
4
|
|
Wire Gauge
|
≤2.5mm²
|
|
Cable OD
|
6.5mm-15mm
|
|
Operating Rating
|
-40°C~+105°C
|
|
Waterproof Level
|
IP67/IP68
|
|
Seal Ring
|
20.6*13*7.5/8.5/10/12/13/15mm
|
Related Product
Our Advantages
Application
Advantage:
|
Assembly Connector
|
Wire to wire /Wire to panel waterproof connector,L/T screw type connector
|
|
Over-mold Connector
|
Nylon/PVC /Metal /Aviation waterproof connector,DC connector
|
|
T Connector
|
Over-mold T waterproof connector
|
|
Y Connector
|
Over-mold Y waterproof connector
|
|
Distributor Connector
|
M15/M18 Series(1to2/3/4/5/6) LED waterproof connector
|
Tail Terminal:
Tail processing as shown on the above is optional,others not listed can also be processed.
Tail processing as shown on the above is optional,others not listed can also be processed.
Tips for choices
Before quotation, please tell us the cable details.
Such as
1.Voltage Rating: 250V,300V...
2. Current Rating: 8A,15A...
3. Wire size: 2*0.75 mm2;3*1.5mm2... ...
4. Cable OD(over diameter) , such as 8 mm...
5.Type: screw fixing type.
Then AHUA team will answer you and choose the correct waterproof connector for you within 24h.
