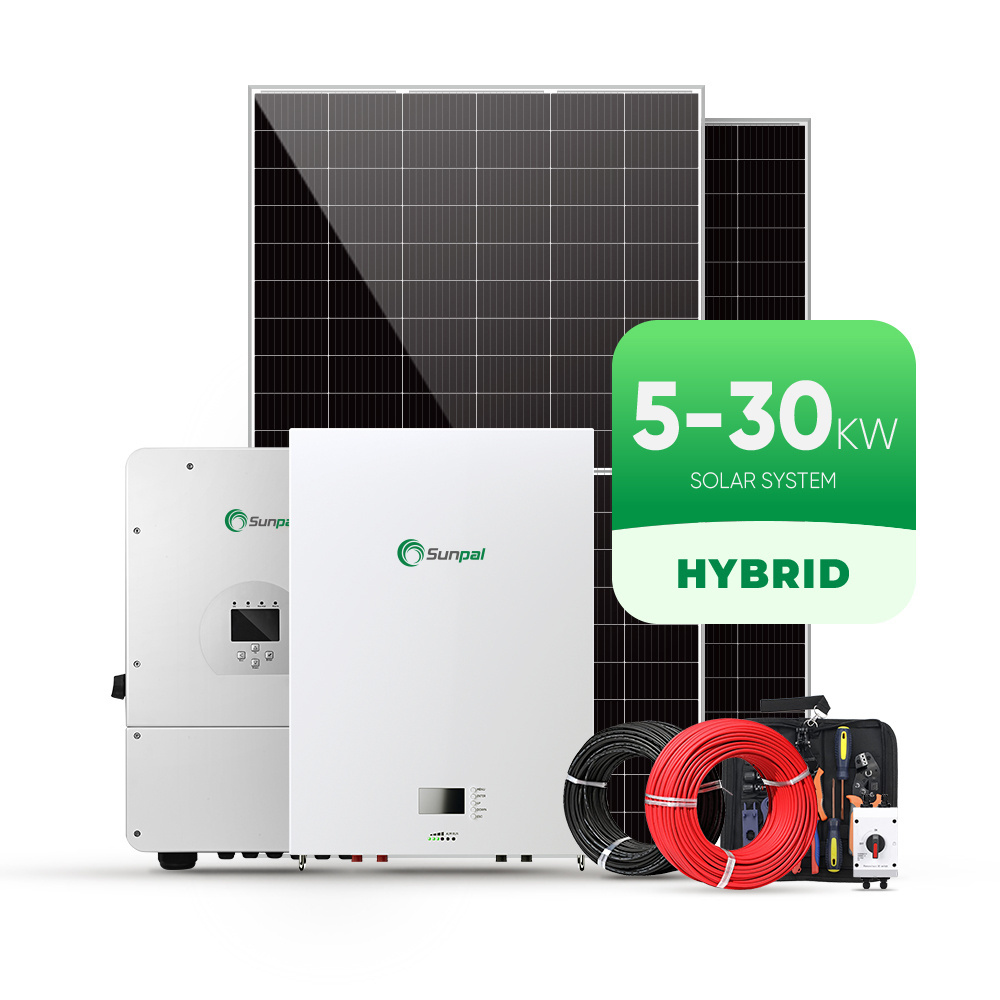

Sunpal Hybrid Solar Power System 5Kw 10Kw 15Kw 30Kw Solar Systems Complete Kit

Sunpal Hybrid Solar Power System 5Kw 10Kw 15Kw 30Kw Solar Systems Complete Kit

FOB Reference Price: Get Latest Price

≥3000 Pieces

US $0.5

≥50000 Pieces

US $0.4

≥10000000 Pieces

US $0.3

Free Inquiry

Customized Request

Explore More Products

Home Solar Panel Kit System 10kw-30kw Off Grid Solar Power System For Home

$ 2.48 - $ 63.72

Off Grid 2KW-5KW Solar Power System Kit For Home

$ 2.48 - $ 63.72

Balcony Power Kit 400w 410w Solar Panels With 600w Inverter Waterproof Solar System For Home Complete Kit

$ 2.48 - $ 63.72

Solar Power Generator 600w Micro System Solar Panels Kit For Home Balcony

$ 2.48 - $ 63.72

Product Details

{{item.text}}

Quick Details

Controller Type:: MPPT

Mounting Type:: Roof Mounting

Certificate:: CE

Place of Origin:: Anhui, China

Brand Name:: Sunpal

Model Number:: SP5KW-HY

Output Frequency:: 50 60HZ

Work Time (h):: Depend On Sunshine Duration

Product name:: Household Hybrid Solar Power System

Solar Power (W):: 3KW 5KW 6KW 8KW 10KW 20KW 30KW

System Type:: Off Grid & Hybrid Solar Photovoltaic System

Solar panel:: Mono Solar Panel

Inverter:: Single Phase/Split Phase/3Phase

Battery:: Lead Acid / LiFePO4 Lithium Battery

Mounting Structure:: Custmized

Technical Support:: Complete Technical Support

Keyword:: Complete Set Solar System

Packing:: Wooden Box

Quick Details

Application:: Home

Solar Panel Type:: Monocrystalline Silicon, TOPCON

Battery Type:: Lead-Acid, Lithium Ion

Controller Type:: MPPT

Mounting Type:: Roof Mounting

Certificate:: CE

Place of Origin:: Anhui, China

Brand Name:: Sunpal

Model Number:: SP5KW-HY

Output Frequency:: 50 60HZ

Work Time (h):: Depend On Sunshine Duration

Product name:: Household Hybrid Solar Power System

Solar Power (W):: 3KW 5KW 6KW 8KW 10KW 20KW 30KW

System Type:: Off Grid & Hybrid Solar Photovoltaic System

Solar panel:: Mono Solar Panel

Inverter:: Single Phase/Split Phase/3Phase

Battery:: Lead Acid / LiFePO4 Lithium Battery

Mounting Structure:: Custmized

Technical Support:: Complete Technical Support

Keyword:: Complete Set Solar System

Packing:: Wooden Box

Product Description

Hybrid Solar System

Hybrid solar systems offer several advantages, including:

Environmental protection: Solar energy is a clean energy source. Using solar energy to generate electricity can reduce dependence on fossil fuels, reduce greenhouse gas emissions, and help mitigate climate change. Economic benefits: By installing a solar hybrid system, you can reduce the cost of electricity for your home or business. Especially in areas with abundant sunshine, solar power generation can greatly reduce electricity bills.

Production Warranty

Warranty Service

If have any quality problems during the warranty period, please provide us pictures or videos, we will check it technically, after confirmed, We will provide solutions according to the specific situation. (send new parts or replace with a new product for free for you)

Or you can consider buying a few more spare parts, in case there is a problem with the product, it can be replaced immediately afterwards, without affecting normal use. For the price of additional spare parts, we can offer discounts.

How it Works

The working mode of a solar system usually includes the following steps: Photovoltaic power generation: Solar panels in solar systems use sunlight to convert direct current electricity. Inverter conversion: The DC power generated by solar panels needs to be converted into AC power by an inverter for use by household or commercial electrical equipment. Self-use or storage: The converted AC power can be supplied to household or commercial equipment for direct use, or it can be stored in batteries for backup. Mixed grid or selling electricity: If the system adopts mixed grid mode, the remaining power can be sold back to the grid through the inverter, thereby realizing connection and interaction with the grid.

System Composition

Model	SP-3KW-HY	SP-5KW-HY	SP-10KW-HY
Half Cut Mono 560W Solar Panel	6 Pieces	10 Pieces	18 Pieces
DC Disconnect Switch	1 Piece	2 Pieces	2 Pieces
Hybrid Inverter	SUN-3K-SG04LP1-EU	SUN-5K-SG03LP1-EU	SUN-10K-SG04LP3-EU
Wall Mounted LiFePo4 Battery	5Kwh	5Kwh	10Kwh
DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set
Model	SP-15KW-HY	SP-20KW-HY	SP-30KW-HY
Half Cut Mono 560W Solar Panel	30 Pieces	36 Pieces	56 Pieces
DC Disconnect Switch	4 Pieces	4 Pieces	7 Pieces
Hybrid Inverter	SUN-5K-SG03LP1-EU 3 Pieces	SUN-10K-SG04LP3-EU 2 Pieces	SUN-10K-SG04LP3-EU 3 Pieces
Wall Mounted LiFePo4 Battery	15Kwh	20Kwh	30Kwh
DC Cable 4mm2	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

Half Cut Mono 560W Solar Panel

Peak Power Watts: 560W
Maximum Power Voltage: 42.06VMaximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions: 2279x1134x30mm
Weight: 27Kg

Hybrid Solar Inverter

100% unbalanced output, each phaseMax. output up to 50% rated power 48V low voltage battery, transformer isolation design 6 time periods for battery charging/discharging Max. charging/discharging current of 240A Frequency droop control, Max.1 6pcs parallel DC couple and AC couple to retrofit existing solar system Support storing energy from diesel generator

Monitoring System
Monitoring systems usually support remote management and control functions. Users can remotely monitor and control the operating status of the solar system through mobile apps or web platforms. This allows users to adjust and manage the system anytime and anywhere, improving the flexibility and convenience of the system.

Low Voltage LiFePo4 Battery Bank

Battery Capacity:

51.2V 100Ah 5.12kWh

51.2V 200Ah 10.24kWh

51.2V 300Ah 15.36kWh

15-20 years design life. Up to 6000 + cycle Ilfe
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.

PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

Support customization and customize according to customer installation environment

DC & AC Disconnect Switch

In solar systems, there are usually DC and AC switches used to control the direct current generated by the solar panel and the
alternating current converted by the inverter

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional

Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

PV TOOLS

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

Our Factory

Product Packing

Our Projects

FAQ

A: What's your warranty policy?

We offer 12 years warranty for materials and processing, and 25 years warranty for extra linear power output.

B: Are you a factory or trading company?
We are a factory with more than 16 years of experience in producing solar energy series products. You are welcome to visit our factory.

C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.

D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.

E: Which type solar modules you can offer?
We can offer many kinds solar panels, such as P-Type PERC/N-Type HJT/N-Type TopCon/back contact/high transmittance solar panels.

F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately If you want to know more information, you can send inquiry to our team, we will cover more details.
