Quick Details
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000 kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support, Online support
-
Place of Origin:
-
China
-
Engine Brand:
-
SINOTRUCK
-
Dimensions (L x W x H) (mm):
-
8245*2550*3450(mm)
-
Cargo Tank Dimension:
-
5400x2300x1500
-
Product name:
-
Truck Dump With Low Price
-
Brand:
-
SINOTRUK HOWO
-
Driving Type:
-
Left Hand Driving
-
Cargo body thickness(mm):
-
bottom:8mm, side:6mm
-
Lift type of Carriage:
-
Ventral lifting
-
Approaching angle/Departure angle(°):
-
19/23
-
Overhang(front/rear) (mm):
-
1500/1870
-
Wheel base (mm):
-
3625+1350
-
Max speed(km/h):
-
75
-
Fuel tanker capacity(L):
-
300L with locking fuel cap
Quick Details
-
Condition:
-
New
-
Horsepower:
-
371hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000 kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support, Online support
-
Place of Origin:
-
China
-
Engine Brand:
-
SINOTRUCK
-
Dimensions (L x W x H) (mm):
-
8245*2550*3450(mm)
-
Cargo Tank Dimension:
-
5400x2300x1500
-
Product name:
-
Truck Dump With Low Price
-
Brand:
-
SINOTRUK HOWO
-
Driving Type:
-
Left Hand Driving
-
Cargo body thickness(mm):
-
bottom:8mm, side:6mm
-
Lift type of Carriage:
-
Ventral lifting
-
Approaching angle/Departure angle(°):
-
19/23
-
Overhang(front/rear) (mm):
-
1500/1870
-
Wheel base (mm):
-
3625+1350
-
Max speed(km/h):
-
75
-
Fuel tanker capacity(L):
-
300L with locking fuel cap

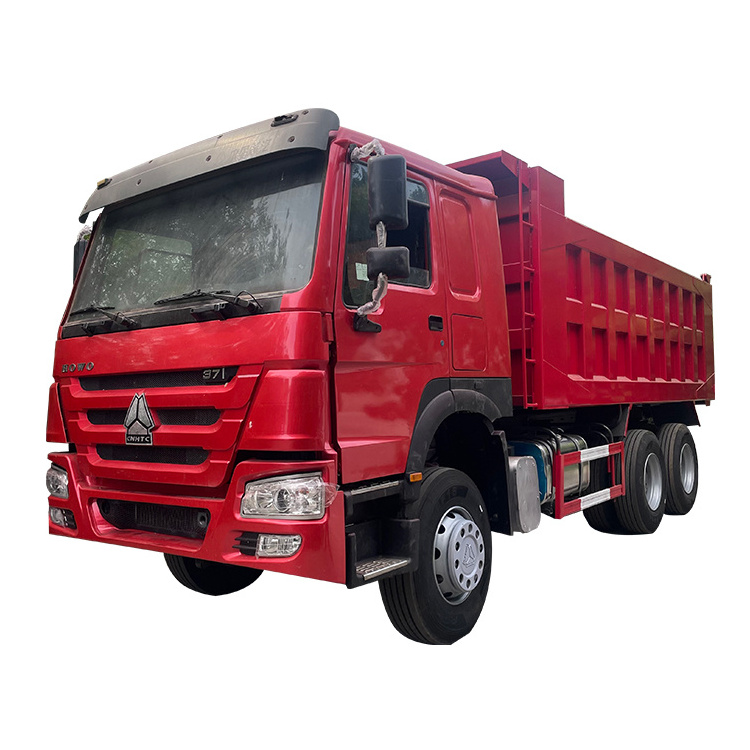

Sinotruck Howo Dumper Lorry 6x4 371 400 10 Wheeler Mini Tipper Dump Truck Good Price for Sale
Product Overview
Sinotruck
Howo 371 dump truck
1.Strong bearing capacity
2.Strong ability to reload and start
3.Cost-effective, complete procedures
4.Low failure and quality guarantee
4.Low failure and quality guarantee
5. This car has many configurations and models.
If you choose other configurations or models, please send an inquiry and contact the sales staff. We will configure a suitable car according to your needs and give you apreferential price.
PRODUCT SPECIFICATIONS
|
Truck Model
|
|
|
|
ZZ3257N3647
|
|||
|
Truck Brand
|
|
|
|
SINOTRUK –HOWO
|
|||
|
Driving Type
|
|
|
|
Left Hand Driving
|
|||
|
Dimension(Lx W xH)（unloaded）（mm）
|
|
|
|
8245x2550x3450
|
|||
|
Cargo body size (L*W*H)
|
|
|
|
5400x2300x1500 18m3
|
|||
|
Cargo body thickness(mm)
|
|
|
|
bottom:8mm, side:6mm
|
|||
|
Lift type of Carriage
|
|
|
|
Ventral lifting
|
|||
|
Approaching angle/Departure angle（°）
|
|
|
|
19/23
|
|||
|
Overhang(front/rear) (mm)
|
|
|
|
1500/1870
|
|||
|
Wheel base (mm)
|
|
|
3625+1350
|
|
|||
|
Max speed（km/h）
|
|
|
75
|
|
|||
|
Curb weight（kg）
|
|
|
12600
|
|
|||
|
Loading Weight（kg）
|
|
|
25000
|
|
|||
|
Fuel tanker capacity(L)
|
|
|
300L with locking fuel cap
|
|
|||
|
Clutch
|
|
|
Single-plate dry clutch Φ430mm
|
|
|||
|
Engine Model
(Steyr technology, made in China) |
Model
|
|
WD615.47
|
|
|||
|
|
Horse Power
|
|
371HP
|
|
|||
|
|
Emission
|
|
EURO II
|
|
|||
|
|
Fuel Type
|
|
Diesel
|
|
|||
|
Transmission
|
|
Model
|
HW19710,10 forwards and 2 reverse
|
|
|||
|
Brake system
|
|
Service brake
|
Dual circuit compressed air brake
|
|
|||
|
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
|
|||
|
|
|
Auxiliary brake
|
Engine exhaust brake
|
|
|||
|
Steering system
|
|
Model
|
ZF hydraulic steering with power assistance
Ratio：22.2-26.2 |
|
|||
|
Front axle
|
|
HF9 , Steering with double T-cross section beam
Loading capacity:9000KG |
|
|
|||
|
Rear axle
|
|
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
Loading capacity: 16000kg |
|
|
|||
|
Color
|
|
Optional
|
|
|
|||
|
Tire
|
|
12.00R20 Steel tires
10+1 spare |
|
|
|||
