Quick Details
-
Displacement:
-
570cc
-
Product name:
-

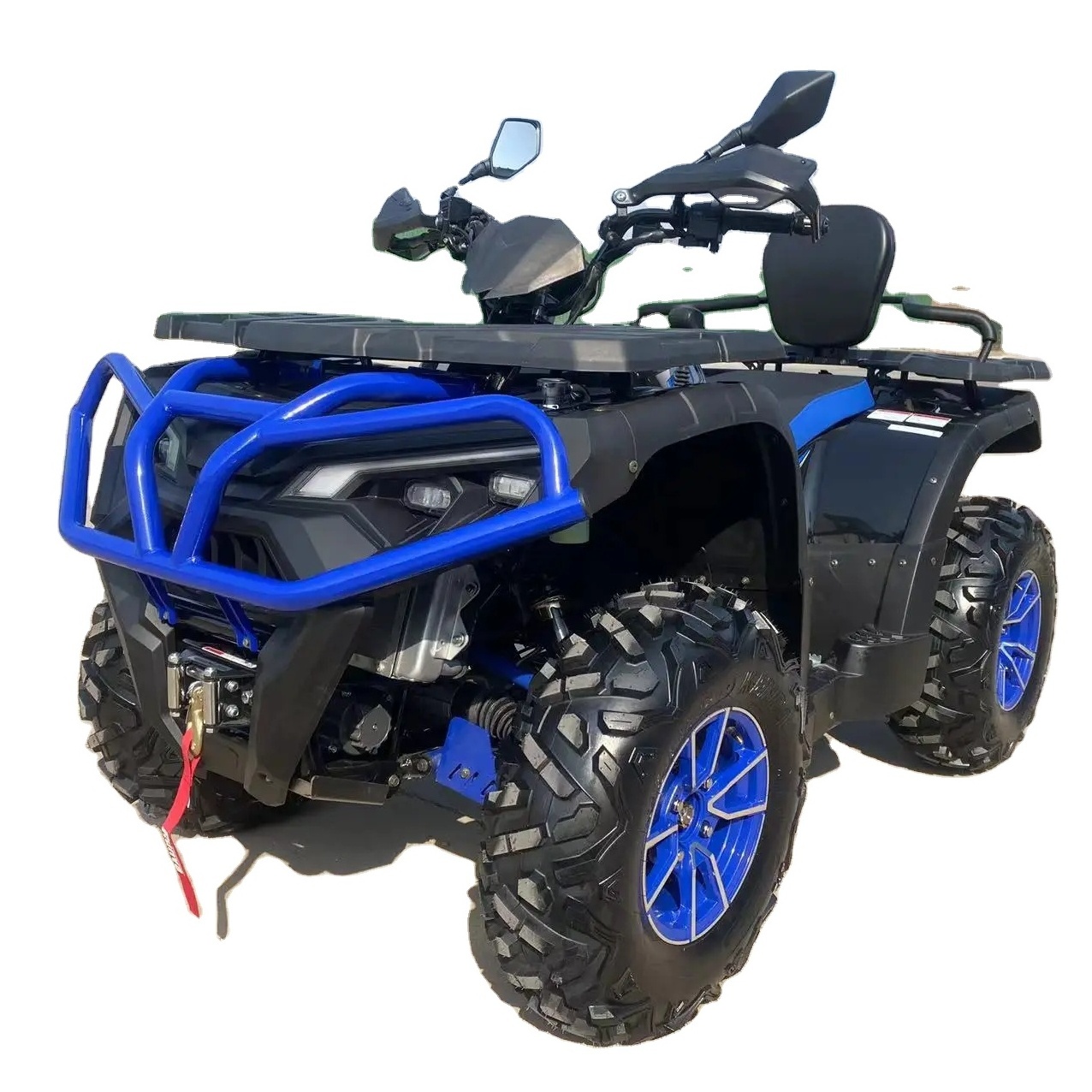

hotsale road legal EEC5 T3 570cc gasoline 4x4 quad bike ATV
-
Horse Power:
-
29Kw(6750±500r/min) 40HP
-
Top speed:
-
85km/h
-
Transmission:
-
CVT+Gear shift
-
Brake:
-
4 wheel-hydraulic disc brake
-
Color:
-
blue,orange
-
Final Drive:
-
shaft-drive
-
Drive Line Type:
-
4x2/4X4
-
MAX TORQUE:
-
44N.m(6000±500r/min)
-
Suspension:
-
Double A-arm independent suspension
Quick Details
-
Brand Name:
-
FANGPOWER
-
Tire Size:
-
25x8-12 / 25x10-12
-
Place of Origin:
-
Shandong, China
-
Displacement:
-
570cc
-
Product name:
-
hotsale road legal EEC5 T3 570cc gasoline 4x4 quad bike ATV
-
Horse Power:
-
29Kw(6750±500r/min) 40HP
-
Top speed:
-
85km/h
-
Transmission:
-
CVT+Gear shift
-
Brake:
-
4 wheel-hydraulic disc brake
-
Color:
-
blue,orange
-
Final Drive:
-
shaft-drive
-
Drive Line Type:
-
4x2/4X4
-
MAX TORQUE:
-
44N.m(6000±500r/min)
-
Suspension:
-
Double A-arm independent suspension
Product Description
Specification
|
ENGINE
|
|
SUSPENSION / BRAKES
|
|
||
|
Engine style
|
Single-cylinder , 4-stroke liquid-cooled, 4 valves SOHC DELPHI EFI
|
Suspension Front
|
Double A-arm independent suspension
|
||
|
Horse Power
|
29Kw(6750±500r/min) 39.4HP
|
Suspension Rear
|
Double A-arm independent suspension
|
||
|
Valve Configuration
|
SOHC
|
Brakes Front
|
Four wheel hydraulic discs
+ rear wheel parking |
||
|
Compression ratio
|
10.3 ：1
|
Brakes Rear
|
Four wheel hydraulic discs
+ rear wheel parking |
||
|
REDUCER
|
|
TIRES
|
|
||
|
Front
|
Differential+lock
|
Front Tread
|
970mm /38.2in
|
||
|
Rear
|
Differential+lock (EEC available) (T3 and EPA not available)
|
Rear Tread
|
970mm /38.2in
|
||
|
Fuel capacity
|
22L (5.8 Gallon)
|
Front & Rear tire size
|
25x8-12 / 25x10-12
|
||
|
DRIVETRAIN
|
|
MISC
|
|
||
|
Driveline Type
|
Selectable 4X2 / 4X4 / 4X4-lock
|
Loading information
|
10units/20″;; 30units/40HQ
|
||
|
Transmission
|
(CVT)+Gear shift
|
Manufacturers Warranty
|
6 Months
|
||
|
Gear Selection
|
Manually/ L—H—N—R—P
|
Top speed
|
85km/h
|
||
|
ELECTRICAL SYSTEM
|
|
Dry weight
|
365KGS
|
||
|
Forward Lights
|
IP67 grade water Proof unitary light Daytime running light High-low beam
Turning light&Position light
|
Gross weight
|
460kgs
|
||
|
Rear Lights
|
IP67 grade water Proof
Turning light
Brake light
Position light(red) |
Wheelbase
|
1370mm
|
||
|
Starting system
|
Electric start
|
Vehicle dimension(L×W×H)
|
2200x1180x1270mm(86.6x46.5x50in)
|
||
|
RACK LOADING
|
|
Packing size
|
2270×1150×843mm
|
||
|
Front
|
20kg / 44lbs
|
Ground clearance
|
280mm
|
||
|
Rear
|
40kg /88lbs
|
|
|
||
