Quick Details
-
Brand Name:
-
Fondvision
-
Color:
-
Black
-
Material:
-
Plastic ABS
-
Reading Distance:
-
3-8cm
-
Operating Frequency:
-
125khz(Optional 13.56Mhz)
-
Card Type:
-
EM Card 125KHz(Optional 13.56Mhz Card)
-
Communication Interface:
-
Wiegand 26/ Wiegand 34/ RS232/ RS485 (optional)
-
Power Supply:
-
9-16V
-
OEM:
-
Yes
-
Warranty:
-
2 Years
-
Lead time:
-
1-5days
Quick Details
-
Frequency:
-
13.56Mhz
-
Protocol:
-
ISO 14443A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fondvision
-
Color:
-
Black
-
Material:
-
Plastic ABS
-
Reading Distance:
-
3-8cm
-
Operating Frequency:
-
125khz(Optional 13.56Mhz)
-
Card Type:
-
EM Card 125KHz(Optional 13.56Mhz Card)
-
Communication Interface:
-
Wiegand 26/ Wiegand 34/ RS232/ RS485 (optional)
-
Power Supply:
-
9-16V
-
OEM:
-
Yes
-
Warranty:
-
2 Years
-
Lead time:
-
1-5days

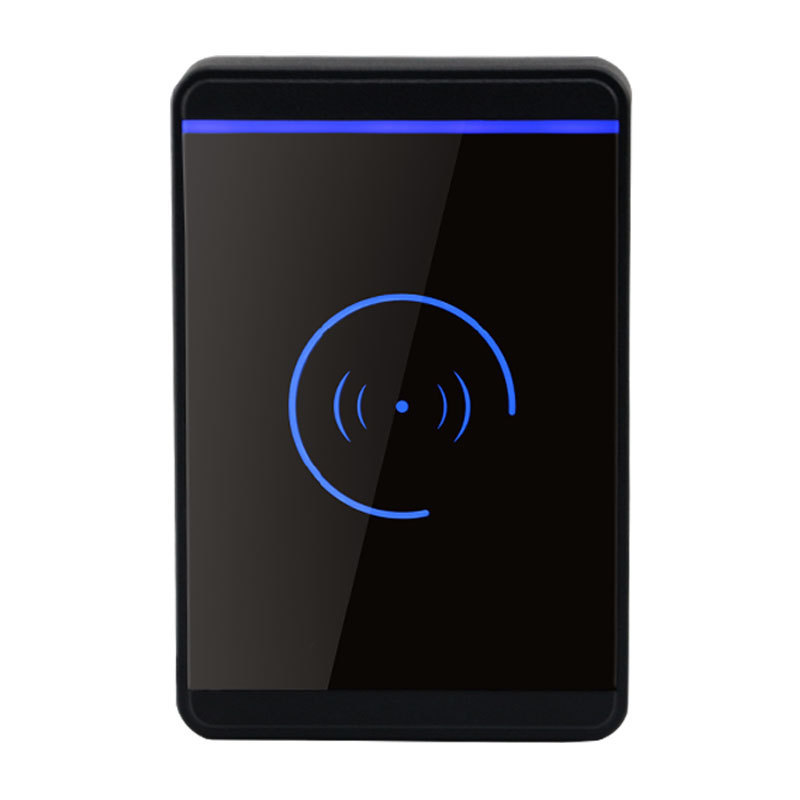

China Contactless Card Skimmer NFC 13.56mhz RFID Card Reader RS485 RFID Reader Access Control System
Access Control RFID Card Reader Low Frequency Proximity reader which is valiable to EM 4100, EM4200, TK4100 and
compatible cards, With Wiegand26,34, RS232, RS485, interface optional, easy to use and deploy, fast and convenient to
connect with other controlling devices
Widely used in applications such as access control system, time attendance, guest registration
system and identification authentication field etc.
Specification
Wiegand 26bits/ Wiegand34bits Standard Format Data Output, RS232,RS485 RFID Reader optional
Less than 0.2 second Response Speed
Less than 0.5 seconds Proximity Time Distance:
2-15cm Proximity Range
Support EM 4100 ID Card or compatible with it( 64bits, Manchester Code) and Mifare 1 Card (13.56 MHz Frequency)
-25; Cto 75; C Ambient Temperature, 10%-90% Ambient Humidity
Built-in Antenna
Built-in LED (Double Color LED)
Built-in Loud Speaker (Buzzer)
DC 12V Working Voltage, 70mA Working Current
100 Meters Communication Distance
Real Time Data Transfer
Black or White Color
PVC Case Material (Black Resin for Water-Proof Function)
Installation
Using + type screw driver to loosen the screw between the panel and mother board, then embed the motherboard to the side wall with the plastic plug and screws.
Notice
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires.
