No. of Cells: 156 cells
Dimension: 2182×1029×35mm
Weight: 25 kg
Modules per box: 31pcs
Modules per 40' container: 620pc
Dimension: 2182×1029×35mm
Weight: 25 kg
Modules per box: 31pcs
Modules per 40' container: 620pc
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 years warranty
-
Brand Name:
-
Jinko Solar
-
Model Number:
-
Tiger
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35mm
-
Product name:
-
Jinko Solar Panel
-
Front Side Glass:
-
High transparency solar glass 3.2mm
-
Back Side Glass:
-
White backsheet
-
Frame:
-
Silver / Black, anodized aluminium alloy
-
Weight:
-
28kg
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cables:
-
4.0mm2, Portrait: 300mm / Landscape: 1400mm
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
Application:
-
Residencial,Commercial & Industry
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, All Black, HJT, N-TYPE, TOPCON
-
Panel Efficiency:
-
22%
-
Warranty:
-
25 years warranty
-
Brand Name:
-
Jinko Solar
-
Model Number:
-
Tiger
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35mm
-
Product name:
-
Jinko Solar Panel
-
Front Side Glass:
-
High transparency solar glass 3.2mm
-
Back Side Glass:
-
White backsheet
-
Frame:
-
Silver / Black, anodized aluminium alloy
-
Weight:
-
28kg
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cables:
-
4.0mm2, Portrait: 300mm / Landscape: 1400mm
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
Application:
-
Residencial,Commercial & Industry

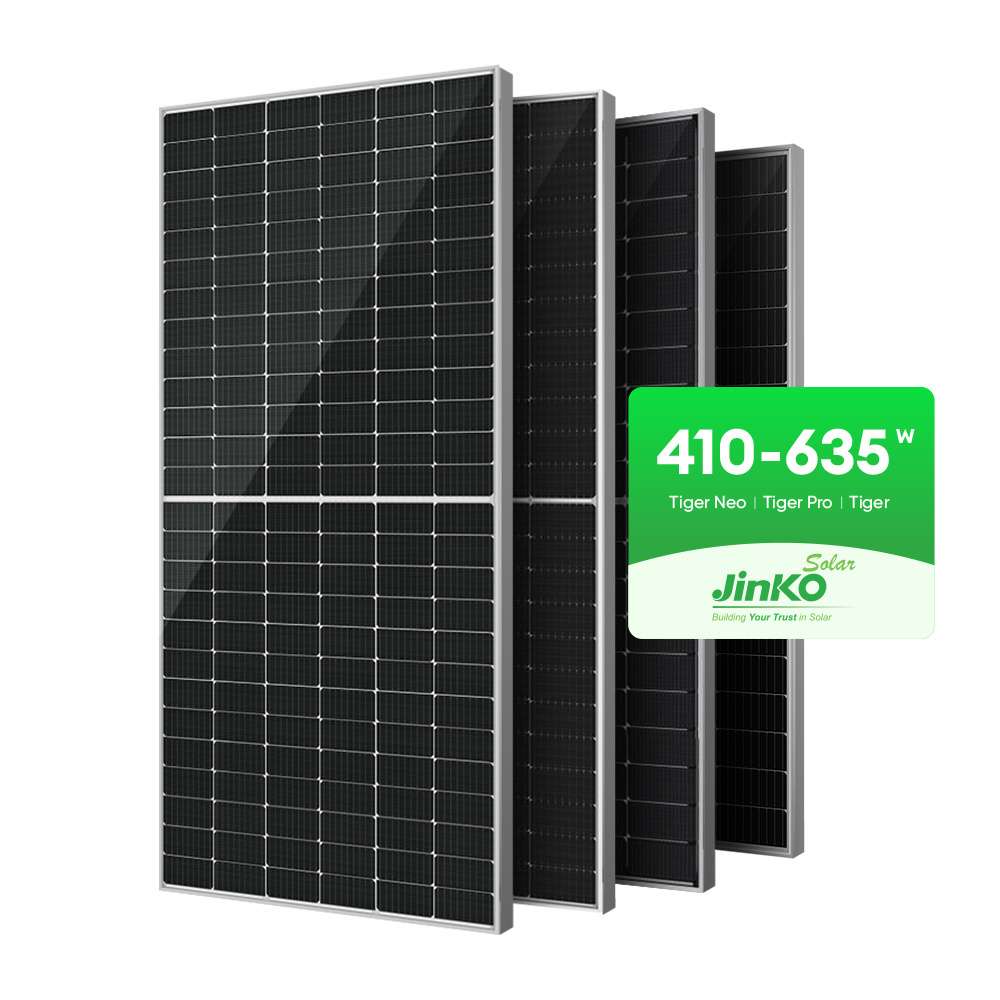

Jinko Solar Panel
Jinko Tiger Series
|
Tiger 78TR 470-490 Watt
MONO-FACIAL MODULE
|
|
|
|
|
|
|||||
|
Maximum Power（Pmax/W）
|
470
|
475
|
480
|
485
|
490
|
|||||
|
Voltage at Maximum Power(Vmp/V)
|
43.28
|
43.38
|
43.48
|
43.58
|
43.68
|
|||||
|
Current at Maximum Power(Imp/A)
|
10.86
|
10.95
|
11.04
|
11.13
|
11.22
|
|||||
|
Open Circuit Voltage（Voc/V)
|
52.14
|
52.24
|
52.34
|
52.44
|
52.54
|
|||||
|
Short Circuit Current(lsc/aA)
|
11.68
|
11.77
|
11.86
|
11.95
|
12.04
|
|||||
|
Module Efficiency(%)
|
20.93%
|
21.16%
|
21.38%
|
21.60%
|
21.82%
|
|||||
|
Tiger Pro 72HC 540-560 Watt
MONO-FACIAL MODULE
|
|
|
|
|
|
|||||
|
Maximum Power（Pmax/W）
|
540
|
545
|
550
|
550
|
560
|
|||||
|
Voltage at Maximum Power(Vmp/V)
|
40.70
|
40.80
|
40.90
|
40.99
|
41.09
|
|||||
|
Current at Maximum Power(Imp/A)
|
13.27
|
13.36
|
13.45
|
13.54
|
13.63
|
|||||
|
Open Circuit Voltage（Voc/V)
|
49.42
|
49.52
|
49.62
|
49.72
|
49.82
|
|||||
|
Short Circuit Current(lsc/aA)
|
13.85
|
13.94
|
14.03
|
14.12
|
14.21
|
|||||
|
Module Efficiency(%)
|
20.90%
|
21.10%
|
21.29%
|
21.48%
|
21.68%
|
|||||
|
Tiger Neo N-type 78HL4-(V)610-630 Watt
MONO-FACIAL MODULE
|
|
|
|
|
|
|||||
|
Maximum Power（Pmax/W）
|
610
|
615
|
620
|
625
|
630
|
|||||
|
Voltage at Maximum Power(Vmp/V)
|
45.59
|
45.69
|
45.79
|
45.92
|
46.02
|
|||||
|
Current at Maximum Power(Imp/A)
|
13.38
|
13.46
|
13.54
|
13.61
|
13.69
|
|||||
|
Open Circuit Voltage（Voc/V)
|
55.25
|
55.40
|
55.55
|
55.70
|
55.85
|
|||||
|
Short Circuit Current(lsc/aA)
|
14.11
|
14.18
|
14.25
|
14.32
|
14.39
|
|||||
|
Module Efficiency(%)
|
21.82%
|
22.00%
|
22.18%
|
22.36%
|
22.54%
|
|||||
Power Range: 470-490W
Power Range: 540-560W
No. of Cells: 144 cells
Dimension: 2278×1134×35mm
Weight: 28 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
No. of Cells: 144 cells
Dimension: 2278×1134×35mm
Weight: 28 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Power Range: 610-630W
No. of Cells: 156 cells
Dimension: 2465×1134×35mm
Weight: 30.6 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Dimension: 2465×1134×35mm
Weight: 30.6 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
