Quick Details
-
Brand Name:
-
Tavol
-
Weight:
-
200 KG
-
Dimension(L*W*H):
-
1440*710*800
-
Product Name:
-
3-point Linkage Small Rotary Tiller
-
Usage:
-
Farm Tilling
-
Color:
-
Requirements
-
Engine type:
-
Diesel
-
Linkage:
-
3 Point Mounted
-
Application:
-
Agri Cultivator
-
Item:
-
Rotary Cultivator Tiller
-
Product Type:
-
Agricultural Farm Machinery Plough
-
Tilling depth:
-
10~18cm
-
Tilling Width:
-
35~87cm
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 Year
-
Use:
-
Farm
-
Place of Origin:
-
shandong
-
Brand Name:
-
Tavol
-
Weight:
-
200 KG
-
Dimension(L*W*H):
-
1440*710*800
-
Product Name:
-
3-point Linkage Small Rotary Tiller
-
Usage:
-
Farm Tilling
-
Color:
-
Requirements
-
Engine type:
-
Diesel
-
Linkage:
-
3 Point Mounted
-
Application:
-
Agri Cultivator
-
Item:
-
Rotary Cultivator Tiller
-
Product Type:
-
Agricultural Farm Machinery Plough
-
Tilling depth:
-
10~18cm
-
Tilling Width:
-
35~87cm
-
Certification:
-
CE

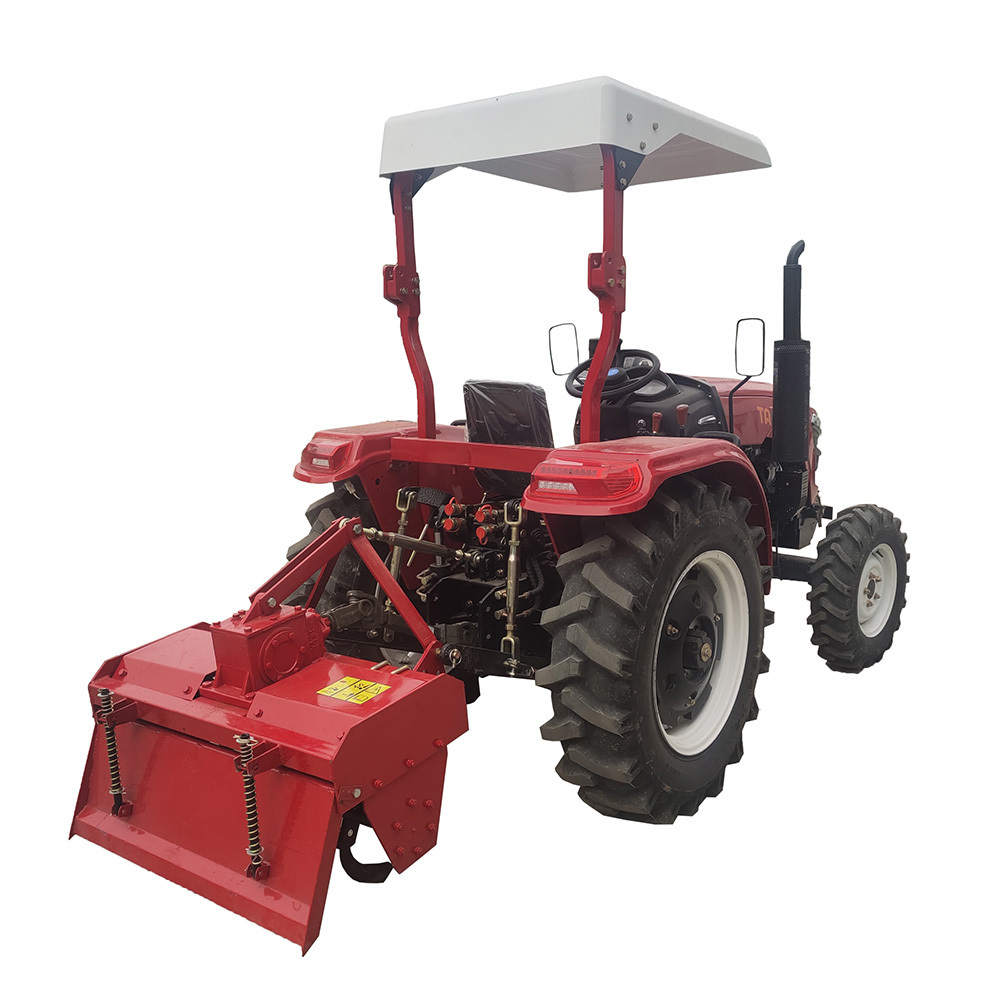

3-point Linkage Small Rotary Tiller for Garden Tractor Tiller Attachment
Product Description
rotary tiller for farm tractor rotary tiller cultivator agricultural is a high efficient production and low cost agricultural implement which has a modern design, reasonably structure, high efficient production and low fuel consumption. It eases intensity labor for operators and enhances economic returns and now become the first choice for the most of peasants in their mechanization of operation.
| Tavol Rotary Tiller Main Parameters | |||||||
| Model | Matched power(hp) |
Working
width(cm) |
Working
depth(cm) |
No.of
knives |
Type of
knife |
Total
weight(kg) |
O.D.mm
(LxWxH) |
| 1 GQN/GN-80 | 12-15 | 80 | 10-18 | 18 | IT225 | 180 | 850x850x950 |
| 1GQN/GN-100 | 12-15 | 100 | 10-18 | 18 | IT225 | 192 | 850x1050x950 |
| 1GQN/GN-115 | 15-18 | 115 | 10-18 | 18 | IT225 | 200 | 900x1310x1000 |
| 1GQN/GN-120 | 15-18 | 120 | 10-18 | 22 | IT225 | 205 | 300x1350x1000 |
| 1GQN/GN-125 | 18-20 | 125 | 10-18 | 26 | IT225 | 210 | 900x1450x1000 |
| 1 GQN/GN-130 | 20-25 | 130 | 10-18 | 26 | IT225 | 215 | 900x1550x1000 |
| 1GQN/GN-140 | 25-30 | 140 | 10-18 | 30 | IT225 | 220 | 900x1600x1000 |
| 1GQN/GN-150 | 25-30 | 150 | 10-18 | 34 | IT225 | 230 | 900x1740x1000 |
| 1GQN/GN-160 | 30-40 | 160 | 10-18 | 38 | IT225 | 240 | 900x1880x1000 |
| 1GQN/GN-180 | 50-55 | 180 | 12-20 | 42 | IT245 | 405 | 1020x2056x1152 |
| 1GQN/GN-200 | 55-75 | 200 | 12-20 | 46 | IT245 | 420 | 1020x2396x1152 |
| 1GQN/GN-220 | 60-80 | 220 | 12-20 | 50 | IT245 | 435 | 1020x2636x1152 |
| 1GQN/GN-250 | 75-90 | 250 | 12-20 | 58 | IT245 | 450 | 1020x2816x1152 |
| 1GQN/GN-300 | 90-120 | 300 | 12-20 | 70 | IT245 | 490 | 1020x3256x1152 |
