Quick Details
-
Brand Name:
-
Neofibo
-
Use:
-
ftth
-
Warranty Time:
-
1 year
-
Product name:
-
MU Duplex Connector
-
End-face type:
-
PC APC
-
Ferrule Diameter:
-
1.25mm
-
Color:
-
Blue/Green
-
Boot Diameter:
-
2.0/3.0mm
-
Insertion loss:
-
≤0.2 dB
-
Operating Temperature:
-
-40℃ to +80℃
-
Return Loss:
-
≥65 dB
-
Keywords:
-
Fiber Connector
-
Ports:
-
2
Quick Details
-
Type:
-
Fiber Adapter & Connectors
-
Model Number:
-
MU Connector
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Neofibo
-
Use:
-
ftth
-
Warranty Time:
-
1 year
-
Product name:
-
MU Duplex Connector
-
End-face type:
-
PC APC
-
Ferrule Diameter:
-
1.25mm
-
Color:
-
Blue/Green
-
Boot Diameter:
-
2.0/3.0mm
-
Insertion loss:
-
≤0.2 dB
-
Operating Temperature:
-
-40℃ to +80℃
-
Return Loss:
-
≥65 dB
-
Keywords:
-
Fiber Connector
-
Ports:
-
2

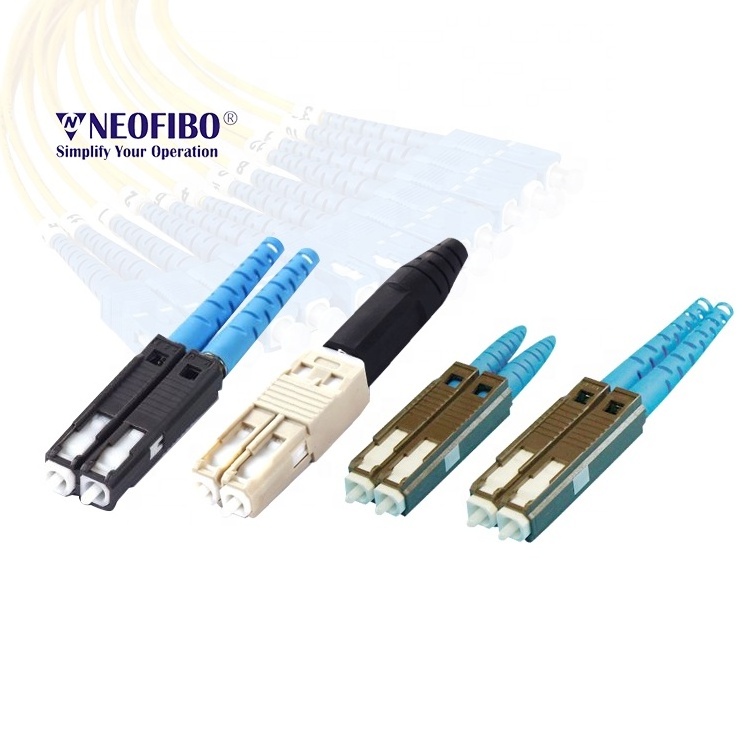

Neofibo MU DX communication duoplex patch cord fiber optic connector
3D reality showroom of our factory↓
Neofibo : Your Reliable Supplier
① Can provide you with reliable polishing solution；
②
16 year
Manufacturing Experience for OEM/ODM polishing program；
③ Independent research and development patent -
Neoholder®
；
④ Products have
CE, ISO9001, ROHS
certification；
⑤ Support online video synchronization inspection machine；
⑥ Equipment test report and operation guide can be provided；
⑦ SGS certified factory, delivery speed and secure,
50 units in stock
；
⑧
30
days quality problems can be returned；
⑨
Free
polishing film sample.
Products Description
Key Features:
> Low insertion loss and back reflection loss;
> Ferrule end surface predomed;
> Precision anti-rotation key and corrosion resistant body;
> UL-rated plastic housing;
> Boots in a variety of colors;
> Telcordia style boots;
> Free-floating ceramic ferrule
> Precision anti-rotation key and corrosion resistant body;
> UL-rated plastic housing;
> Boots in a variety of colors;
> Telcordia style boots;
> Free-floating ceramic ferrule
Applications:
*CATV
*Active device termination
*Telecommunication networks
*Metro
*Local Area Networks (LANs)
*Data processing networks
*Test equipment
*Premise installations
*Wide Area Networks (WANs
*Active device termination
*Telecommunication networks
*Metro
*Local Area Networks (LANs)
*Data processing networks
*Test equipment
*Premise installations
*Wide Area Networks (WANs
Availability:
The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Clips are available for duplex connectors.
Housing kits without ferrule are available.
Clips are available for duplex connectors.
Housing kits without ferrule are available.
Specification
|
Specification:
|
|
|
|
|||
|
Paramter
|
Singlemode(PC)
|
Singlemode(APC)
|
Multimode (PC)
|
|||
|
Insertion loss
|
≤0.2 dB
|
≤0.2dB
|
≤0.2dB
|
|||
|
Return Loss
|
≥50 dB
|
≥65 dB
|
≥35 dB
|
|||
|
Operating Temperature
|
-40℃ to +80℃
|
-40℃ to +80℃
|
-40℃ to +80℃
|
|||
|
Order Information:
|
|
|
|
|
||||
|
Part Number
|
Description
|
Color
|
Boot Dia (mm)
|
Type
|
||||
|
MU-UPC-BL-DX
|
MU UPC Duplex Single Mode Connector
|
Blue
|
0.9/2.0/3.0
|
SM
|
||||
|
MU-APC-GR-DX
|
MU APC Duplex Single Mode Connector
|
Green
|
0.9/2.0/3.0
|
SM
|
||||
|
MU-UPC-BG-DX
|
MU UPC Duplex Multi Mode Connector
|
Beige
|
0.9/2.0/3.0
|
OM1/OM2
|
||||
|
MU-UPC-AQ-DX
|
MU UPC Duplex Multi Mode Connector
|
Aqua
|
0.9/2.0/3.0
|
OM3
|
||||
|
MU-UPC-MG-DX
|
MU UPC Duplex Multi Mode Connector
|
Magenta
|
0.9/2.0/3.0
|
OM4
|
||||
