Density Testing Equipment Touch Screen Solid Densitometer Polymer Density meter

Density Testing Equipment Touch Screen Solid Densitometer Polymer Density meter

Product introduction

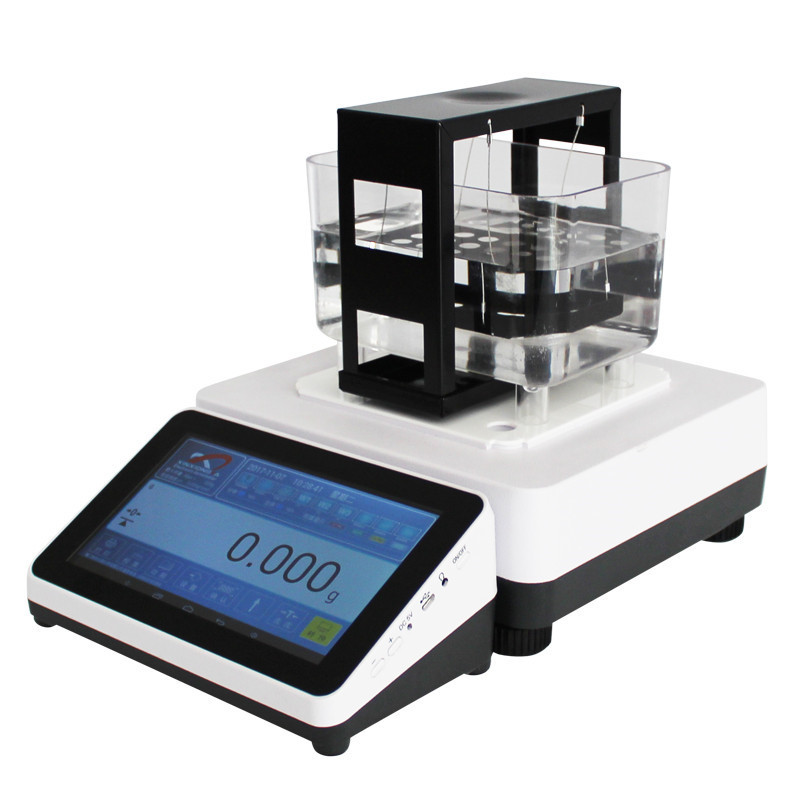

The wireless touch solid densitometer is equipped with a 7-inch set touch-control display color screen, and the display and the main body of the weight are wireless separated structure to realize remote control of the densitometer. The density software is compatible with IOS, PC, Android and other operating systems, and equipped with RS232 communication interface or RJ45 wireless communication interface.

This series product is the product upgrading, compared with competing products, XFMD further improve the reliability of series products, mainly to solve the other products on the market widely existing measurement unstable, inaccurate data, crashing, button failure, messenger wire bending, hanging bar easy to touch the container slot, common problems such as container slot is easy to break, improved the accuracy of measurement, and simplifies the operation steps and methods, to upgrade the function of software applications, with the reliability of the products can not match, make customers more widely applied.

Products comply with: ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T9867, DIN-53516, ISO-4649, GB/T1689, GB/T1689...And so on standard specification.

Application industry: alloy, hard alloy, precious metals, motor vehicle parts, aviation aircraft parts, metal seal, powder metallurgy, ceramics, magnetic materials, rubber, plastic products, plate, sheet, pipe, wire, sealing ring, silicone, plastic particles, particles of PP, PE measuring particles, PVC granules, PC, nylon resin, engineering plastics, EVA material, PU material, elastomer, PET/PE/PS/PVC film, rock/Po/stone/jade, jade, fossils etc.

Density Testing Equipment Touch Screen Solid Densitometer Polymer Density meter

Technical specifications:

Range density > 1, < 1 can be tested

Measurement platform aluminum alloy die casting molding

Any irregular solid substance can be measured (lumps, particles).

The results show density, volume, and percentage volume

Principle of measurement: Archimedes' principle of buoyancy

The measurement time is about 5 seconds

The measuring table clamshell mode is fast, no obstruction and no clamshell design

Transparent water tank made of PC injection molding material (size: 15.3cm long × 10.7cm wide × 8.0cm high)

Parameter setting water temperature setting, measuring solution medium density setting, material main material and secondary material density setting, density upper and lower limits setting

Calibration mode single key calibration, automatic detection

Data interface standard RS-232 interface

Density Testing Equipment Touch Screen Solid Densitometer Polymer Density meter

Features:

1. Independent research and development of APP system intelligent software weighing technology patents.The application of WiFI to achieve the separation of weighing data transmission technology

2. The core components of the main engine are all imported from Germany and the United States

3. All the accessories of the densitometer are mould-opening and formed in one body (the accessories bonded by acrylic are rejected).

4. 7-inch industrial tablet touch screen, full-color large screen: large screen true color TFT LCD, providing rich density weighing display information, easy to read.

5. Full-screen touch: A touch solution that fits the working habits of the laboratory and can be operated accurately even with multiple hands.

6. User interface: Metro color scheme is applied and environmental color is adopted, so that eyes will not be tired after long working hours

7. The split structure design will not affect the sensor measurement due to the keystroke, causing the unstable problem of the screen;No problem of damage caused by liquid overflow into circuit board and sensor

8. Date, time and 6000MA storage battery are built into the host of the densitometer to prevent the trouble caused by power failure.

9, a multi-purpose machine, built in a variety of density testing mode, can also be used as a precision analysis balance

Measuring steps

Put the product into the measuring table, display the weight of the product, press the "Ok" button to remember.

(2) Put the product into the water and press the "ok" button to display the density value.

Standard accessories main engine flume measuring platform tweezers measuring floating body fittings measuring particle fittings power transformer a specification of quality certificate

Optional accessories XFMD-68 densitometer printer Liquid density assembly
