Quick Details
-
Max Discharge current:
-
50000 A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM
-
Model Number:
-
GSP9-C40 3P 40KA 275V
-
Nominal Discharge current:
-
20000 A
-
Voltage Range:
-
275/320/385/440V
-
Voltage protection level:
-
1.3 1.5 1.8 2.0KV
-
Frequency:
-
50/60HZ
-
Nominal discharge current:
-
20KA
-
Maximum discharge current:
-
40KA
-
Standard:
-
IEC61643-1
-
Protection rating:
-
IP20
-
Certifications:
-
CE
-
Warranty/guarantee:
-
18months
-
MOQ:
-
20PCS
Quick Details
-
Type:
-
T1+T2
-
Number of Pole:
-
3
-
Rated Voltage:
-
275V
-
Max Discharge current:
-
50000 A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM
-
Model Number:
-
GSP9-C40 3P 40KA 275V
-
Nominal Discharge current:
-
20000 A
-
Voltage Range:
-
275/320/385/440V
-
Voltage protection level:
-
1.3 1.5 1.8 2.0KV
-
Frequency:
-
50/60HZ
-
Nominal discharge current:
-
20KA
-
Maximum discharge current:
-
40KA
-
Standard:
-
IEC61643-1
-
Protection rating:
-
IP20
-
Certifications:
-
CE
-
Warranty/guarantee:
-
18months
-
MOQ:
-
20PCS
············This link price is only for

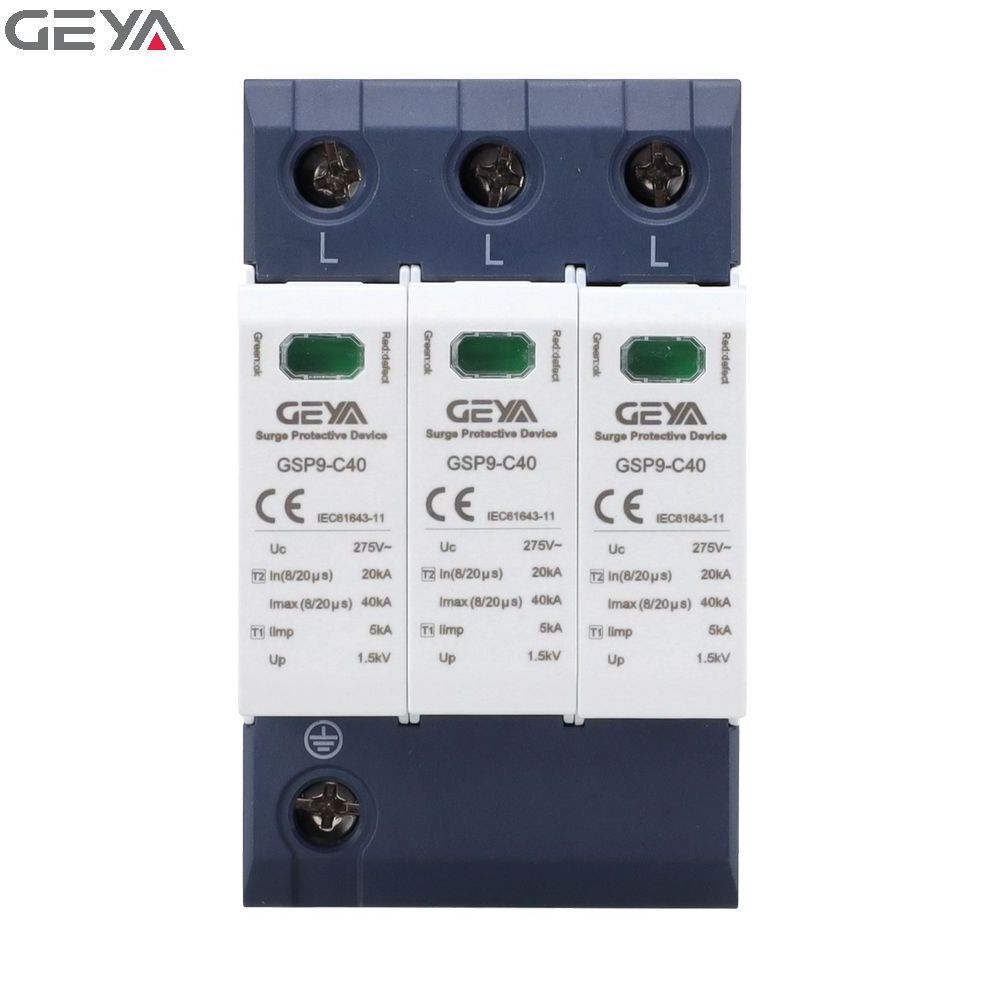

GSP9-C40 3P 40KA 275V
···········
Products Description
GSP9-C40 meet the type 2 requirement class according to IEC 61643-11.
These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions.
The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current.
If circumstances are uncertain and there is a risk of fire from an overload, the internal cut-off unit disconnects the arrestor from the mains if necessary.
In addition, the QR
code printed on the arrestor allows disary. In addition, the QR code printed on the arrestor allows direct access to the online
installation instructions.
*Connectable surge arrestor
*High arresting capacity
*Visual status display
*Available with optional remote signalling
*Vibration-proof
*Simple standard hat rail mounting
*Labelled connections
*Voltage encoding
*Connectable surge arrestor
*High arresting capacity
*Visual status display
*Available with optional remote signalling
*Vibration-proof
*Simple standard hat rail mounting
*Labelled connections
*Voltage encoding
Technical Data
|
SPD classification according to EN61643-11
|
Type 1+2
|
|
SPD classification according to IEC61643-11
|
Class II
|
|
Max. continuous operating a.c. voltage (L-N) Uc
|
275V
|
|
Max. continuous operating a.c. voltage (N-PE) Uc
|
255V
|
|
Lightning impulse current (10/350p s) limp
|
12.5kA
|
|
Norminal discharge current (8/20 p s) In
|
20kA
|
|
Max. discharge current (8/20 y s) (L-N) Imax
|
50kA
|
|
Max. discharge current (8/20 p s) (N-PE) Imax
|
80kA
|
|
Voltage protection level Up
|
≤1.3kV
|
|
Voltage protection level 5kA Up
|
≤1.1kV
|
|
Max. backup fuse
|
160A gL
|
|
Response time tA
|
≤25nx
|
|
Operating temperature range Tu
|
-40℃-80℃
|
|
Operating state/fault indication
|
green/red
|
|
Cross-section area (Min.)
|
6 mm²
|
|
Cross-section area(Max.)
|
35mm²
|
|
For mounting on
|
35mm Din rail
|
|
Enclosure material
|
Thermalplastic UL94-V0
|
|
Degree of protection
|
IP20
|
