Quick Details
-
Model Number:
-
Auto-Pure96, Auto-Pure96
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
Nucleic Acid Purification System
-
Throughput:
-
1-96
-
Process volume:
-
50~1000ul
-
Collection efficiency:
-
>95%
-
Magnetic rod number:
-
96
-
Plate types:
-
96 Deepwell plate
-
Operation:
-
7 inch color touch screen
-
Purification accuracy:
-
100 copy sample positive rate>95%
-
Storage Capacity:
-
more than 100 programs
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
Chincan
-
Model Number:
-
Auto-Pure96, Auto-Pure96
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
Nucleic Acid Purification System
-
Throughput:
-
1-96
-
Process volume:
-
50~1000ul
-
Collection efficiency:
-
>95%
-
Magnetic rod number:
-
96
-
Plate types:
-
96 Deepwell plate
-
Operation:
-
7 inch color touch screen
-
Purification accuracy:
-
100 copy sample positive rate>95%
-
Storage Capacity:
-
more than 100 programs

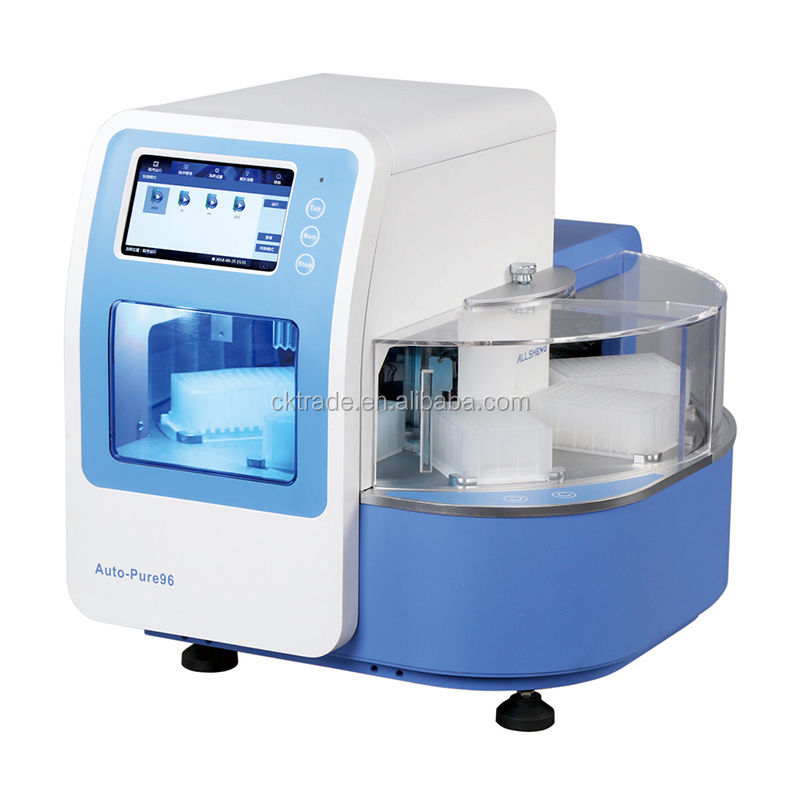

Auto-Pure96 Nucleic Acid Purification System
Operational advantages:
1. High-throughput:
Auto-Pure96 can process 96x1ml samples simultaneously
Auto-Pure24 can process 24x10ml samples simultaneously
2. Open and multiple functions design can be provided more?methods for reagent optimization, and also a reliable choice
3. Touchscreen interface and easy operation, parameters can be tuned based on experimental requirements
4. Accurate temperature control system ensures stability of?purification performance
5. Patent structure design with center rotary table which makes?it occupies smaller area?of magnetic rod tip comb, which guaranteed stability and?liability (Success rate >99.99%)
Antipollution measures
1. Avoid reagent splashing through drip shield plate and beads?dried way controlled by software
2. Disposable consumables which can avoid cross contamination
Simple and intelligentized operation
1. Front door can be opened, you can stop it at any moment?which is very convenient for reagent optimization and?experimental status viewing
2. Start with self-check, equipped with power-off protection
3. 8-plate identification design guaranteed their target position,?even though external forces exist
4. Automatic detection in case kit missing
5. With QR code identification, special reagent can be?recognized, without setting program or obtaining protocols
Compatible with automated systems (Optional)
Auto- pure96/24 can be used with automatic equipment,?including mechanical arm, liquid processing system, etc.,which meet the demand of high-flux experiment
| Type | Auto-Pure96 |
| Throughput | 1~96 |
| Process volume | 50~1000ul |
| Collection efficiency | >95% |
| Magnetic rod number | 96 |
| Purification accuracy | 100 copy sample positive rate>95% |
| Stability | CV<5% |
| Plate types | 96 Deepwell plate |
| Healting for lysis tube | Ambient temperature~120°C |
| Heating for elution tube | Ambient temperature~120°C |
| Operation | 7 inch color touch screen |
| Extraction steps | Lysis, Sample binding, Washing and elution |
| Storage Capacity | more than 100 programs |
| Protocol Management | Create, edit, delete, protocol mode |
| Pollution Control | UV light |
| Lighting | Yes |
| Extension interface | 4 standard USB port, built-in SD card |
| Exhaust | Fan |
| Power Supply | 450W |
| Dimensions | 560×620×500mm |
| Weight | 54Kg |
| Code | Description |
| AS-17060-00 | Auto-Pure96 Nucleic Acid Purification System, AC120V/240V, 50/60Hz |
| AS-17061-01 | Magnetic tip comb for Auto-Pure96 |
| AS-17061-02 | 96-Deepwell plate for Auto-Pure96 |
| AS-17061-03 | 96-Elution plate for Auto-Pure96 |
