Quick Details
-
Brand Name:
-
ZIDONG PUMP
-
Model Number:
-
ZN
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
2500hp
-
Cable Length:
-
NO
-
Outlet Size:
-
300-500mm
-
Power:
-
2500KW
-
motor:
-
customize
-
Name:
-
small dredge pump gold mining for dredging
-
Item:
-
dredge pump
-
Factory experience:
-
15 years direct factory
-
Material:
-
High chrome alloy
-
Certificate:
-
CE&ISO
-
Impeller:
-
Closed Impeller
-
Pump body:
-
connected by bolts
-
Seal method:
-
Gland seal and lip seal
-
Usage:
-
Transfer Liquid
Quick Details
-
Application:
-
Other, Industrial Utilities, Machining, Marine, Mining industry
-
Pressure:
-
8bar
-
Voltage:
-
NO
-
Brand Name:
-
ZIDONG PUMP
-
Model Number:
-
ZN
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
2500hp
-
Cable Length:
-
NO
-
Outlet Size:
-
300-500mm
-
Power:
-
2500KW
-
motor:
-
customize
-
Name:
-
small dredge pump gold mining for dredging
-
Item:
-
dredge pump
-
Factory experience:
-
15 years direct factory
-
Material:
-
High chrome alloy
-
Certificate:
-
CE&ISO
-
Impeller:
-
Closed Impeller
-
Pump body:
-
connected by bolts
-
Seal method:
-
Gland seal and lip seal
-
Usage:
-
Transfer Liquid
Products Description

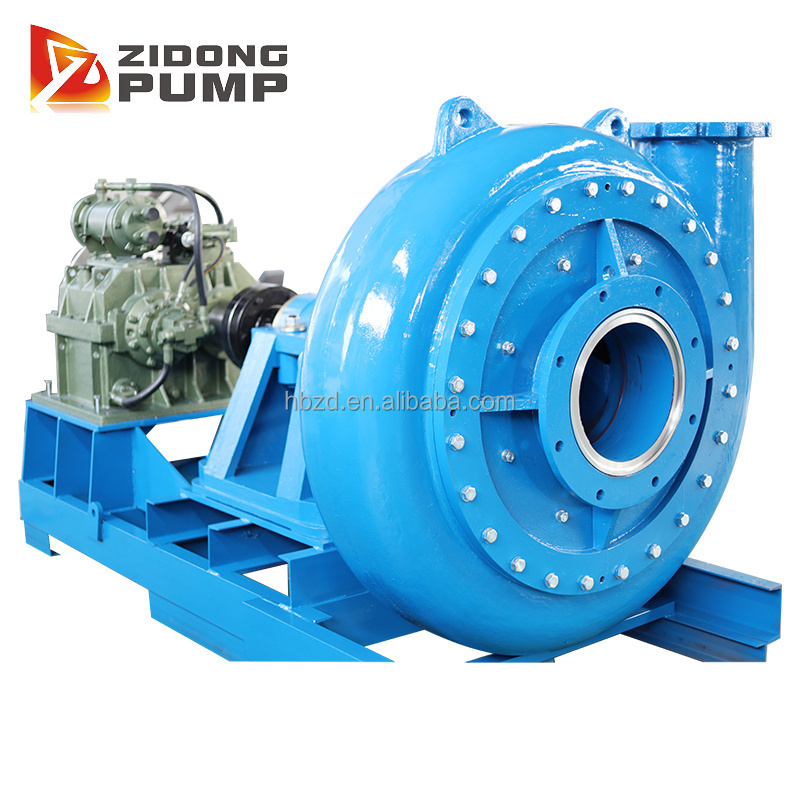

small dredge pump gold mining for dredging
ZN Dredge Pumps are single-stage single suction cantilever horizontal centrifugal pumps with advantages of light weight, good wear-resistant, super dredging performance, ZN dredging pumps impeller passage is very wide, It can continuously transport gravels or high plastic clay and not happens jam, Especially for dredging sands and damming of the river and seas. ZN Series Dredge Pumps can be also integrated with the gearbox, That mean the pump and gear box share one common shaft. So It dosen't need the pump bearing aseembly and frame, In this way, Not only save space, but also reduce cost and breakdown ratio, Let the dredge pump give play to maximum effectiveness.
Details Images
Product Paramenters
|
Model
|
Capacity (m³/h)
|
Head (m)
|
Speed (r/min)
|
Efficiency η(%)
|
Outlet/Inlet Diameter (mm)
|
Max Particles Size (mm)
|
|
200ZN
|
750-1000
|
40-65
|
700-850
|
70-72
|
200/250
|
180
|
|
250ZN
|
1100-1300
|
40-65
|
500-650
|
70-74
|
250/350
|
144
|
|
300ZN
|
1800-2200
|
40-65
|
400-550
|
74-78
|
300/450
|
200
|
|
350ZN
|
2600-3000
|
40-65
|
400-550
|
74-78
|
350/450
|
205
|
|
400ZN
|
2800-3200
|
20-40
|
400-550
|
74-78
|
400/450
|
200
|
|
450ZN
|
3200-3850
|
40-67
|
350-500
|
76-80
|
450/600
|
220
|
|
500ZN
|
4500-5500
|
40-65
|
350-450
|
78-80
|
500/650
|
230
|
|
600ZN
|
5000-9000
|
55-80
|
280-420
|
84-85
|
600/660
|
320
|
|
700ZN
|
8000-12000
|
60-85
|
280-380
|
83-85
|
700/760
|
380
|
|
900ZN
|
12000-19000
|
50-75
|
280-330
|
85-87
|
900/960
|
320
|
|
1000ZN
|
16000-25000
|
23-76
|
181-290
|
85-87
|
1000/1200
|
350
|
Appication
Application of the scene
● Mineral Processing; ● Power Generation; ● Aggregate;
● Ash Handling; ● Flue Gas Desulfurization; ● Thickener & Tailings;
● Mine Dewatering; ● Industrial Slurries; ● Aggregate; ● Thickener & Tailings; ● Dredge.
● Ash Handling; ● Flue Gas Desulfurization; ● Thickener & Tailings;
● Mine Dewatering; ● Industrial Slurries; ● Aggregate; ● Thickener & Tailings; ● Dredge.
