Multi-Function Packing Machine Granular Chips Snack Food Fill Seal Packaging machine
Multi-Function Packing Machine Granular Chips Snack Food Fill Seal Packaging machine
Multi-Function Packing Machine Granular Chips Snack Food Fill Seal Packaging machine
Multi-Function Packing Machine Granular Chips Snack Food Fill Seal Packaging machine
Multi-Function Packing Machine Granular Chips Snack Food Fill Seal Packaging machine
Multi-Function Packing Machine Granular Chips Snack Food Fill Seal Packaging machine
Multi-Function Packing Machine Granular Chips Snack Food Fill Seal Packaging machine
Multi-Function Packing Machine Granular Chips Snack Food Fill Seal Packaging machine

Multi-Function Packing Machine Granular Chips Snack Food Fill Seal Packaging machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $18500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Production Capacity:
65bag/min
Weight (KG):
1500
Voltage:
220V
Place of Origin:
Henan, China
Brand Name:
YOUNA
Dimension(L*W*H):
2000*2000*3500mm
After-sales Service Provided:
Engineers available to service machinery overseas
item:
automatic weighing packaging machine
Bag length:
80-300mm(L)
Bag width:
80-250mm(W)
Packing speed:
5-65bags/min
Measuring range:
150-1200ml
Air consumption:
0.65mpa
Gas consumption:
0.3m3/min
Machine weight:
1500g

Quick Details

Function:
FILLING, Wrapping, Sealing
Packaging Type:
Stand-up Pouch, Bags, Pouch
Packaging Material:
Plastic, Paper
Production Capacity:
65bag/min
Weight (KG):
1500
Voltage:
220V
Place of Origin:
Henan, China
Brand Name:
YOUNA
Dimension(L*W*H):
2000*2000*3500mm
After-sales Service Provided:
Engineers available to service machinery overseas
item:
automatic weighing packaging machine
Bag length:
80-300mm(L)
Bag width:
80-250mm(W)
Packing speed:
5-65bags/min
Measuring range:
150-1200ml
Air consumption:
0.65mpa
Gas consumption:
0.3m3/min
Machine weight:
1500g
Product Description

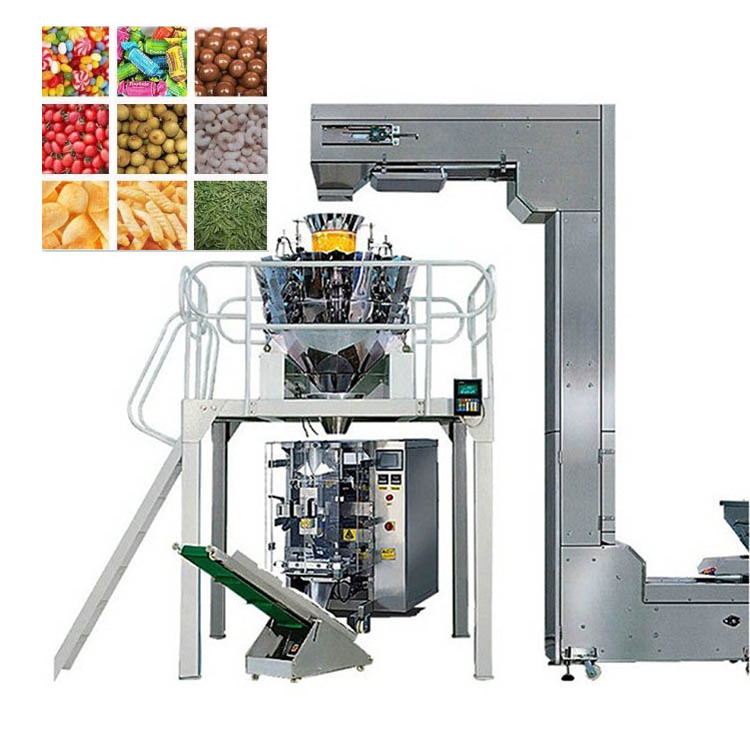

Multi-Function Packaging Machine Granular Chips Fill Seal Packaging
Scope of application:

puffed foods such as potato chips and rice crackers, large-shell nuts such as walnuts and pistachios, snack foods such as candy, melon seeds, biscuits, fruit and vegetable slices, roasted seeds and nuts, jelly, plum, chocolate, pet food, small hardware pieces, granular, Quantitative weighing of bulk, strip and other materials。
suitable material
Specification
Model
YN420
YN520
YN720
voltage
220V  1PH 50-60hz
220V /110v 1PH 50-60hz
220V /110v 1PH 50-60hz
power
2.2kw
4.5kw
5.5kw
max suitable film width
420mm
520mm
720mm
bag width
5-20cm customized
8-25cm customized
18-35cm customized
bag length
8-30cm
8-30cm
10-40cm
packing weight
customized
customized
customized
packing speed
5-30bag/min
50-30bag/min
5-30bag/min
Air consumption
0.65mpa
0.65mpa
0.65mpa
Gas consumption
0.3m³/min
0.3m³/min
0.3m³/min
date code printer
yes
yes
yes
machine weight
540kg
600kg
700kg
Ten-head combination weigher performance and structural characteristics:
 Stable 10 buckets, high-precision sensor。  The opening and closing speed of the bucket door can be finely adjusted according to the characteristics of the object. Prevent shattering。  Servo motor is adopted, which is quiet, stable and long life.。  All parts are made of stainless steel, clean and hygienic。  Good compatibility, easy to use with other packaging equipment。  Scope of application: puffed foods such as potato chips and rice crackers, large-shell nuts such as walnuts and pistachios, snack foods such as candy, melon seeds, biscuits, fruit and vegetable slices, roasted seeds and nuts, jelly, plum, chocolate, pet food, small hardware pieces, granular, Quantitative weighing of bulk, strip and other materials。

Automatic Collar bag packing machine:
Chinese and English touch screen display, intuitive and simple operation. Computer control system, more stable operation, can adjust any parameters without stopping the machine
 Ten groups of parameters can be stored, which makes it more accurate to change the type  The servo motor is used for drawing, the positioning is more accurate。  Independent temperature control system, the accuracy can reach ±1℃。  The horizontal and vertical sealing temperature are independently controlled, which can be well applied to various packaging materials such as composite film, PE film, etc.。  The packaging styles are diversified, such as back seal, gusset, continuous bag, punching, etc.  Bag making, sealing, packaging, and date printing can be done at one time。  Clean working environment, low noise。



Material elevator
 The loader is used in conjunction with an electronic weighing scale, and is
controlled by a control circuit to achieve the automatic function of automatic feeding and stopping.  It is made of stainless steel and carbon steel, which can be selected by customers  Suitable for the lifting of various fragile and non-fragile materials, such as potato chips, shrimp cracks, rice crackers, various hardware, etc.
Work platform
This table is sturdy, beautiful, and has a non-slip counter top, surrounded by guardrails, practical and safe
