Quick Details
-
Application:
-
Villa, Office Building, School, Sports Venues, Supermarket, Warehouse, Farmhouse, Courtyard
-
Type:
-
swing gate opener
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
dingding
-
Model Number:
-
LS--III-24V
-
Item no.:
-
LS-III-I-24V
-
Nominal Power:
-
150W
-
Power Supply:
-
AC 230V/120V
-
Noise:
-
≤56dB
-
Protection class:
-
IP44
-
Travel time:
-
17SEC
-
Certification:
-
CCC,CE
-
Motor Speed:
-
1400RPM
-
Working Temperature:
-
-45 ~ +65°C
-
Max gate weight:
-
500-1000kg
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
3D model design
-
Application:
-
Villa, Office Building, School, Sports Venues, Supermarket, Warehouse, Farmhouse, Courtyard
-
Type:
-
swing gate opener
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
dingding
-
Model Number:
-
LS--III-24V
-
Item no.:
-
LS-III-I-24V
-
Nominal Power:
-
150W
-
Power Supply:
-
AC 230V/120V
-
Noise:
-
≤56dB
-
Protection class:
-
IP44
-
Travel time:
-
17SEC
-
Certification:
-
CCC,CE
-
Motor Speed:
-
1400RPM
-
Working Temperature:
-
-45 ~ +65°C
-
Max gate weight:
-
500-1000kg

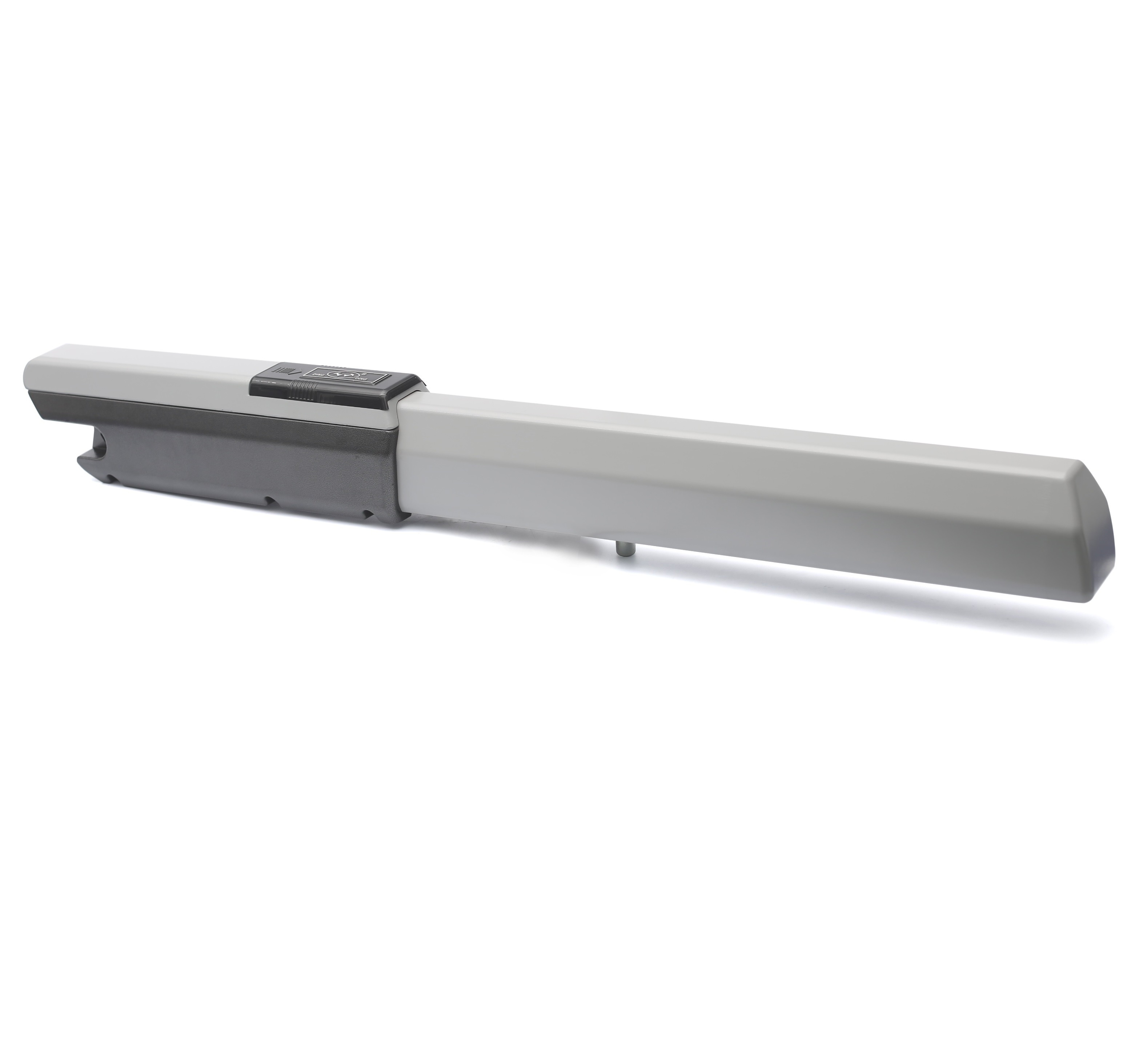

Product introduce:
1.Drived by thread
2.Mechanical limit switch
3.Outside control box
4.Can choose one or two gates to open or close
5. In case of power failure, the gate can be opened and closed manually after release clutch.
|
Item no. |
LS-III
|
|
Power Supply
|
120 / 230V AC |
|
Power
|
150W |
|
Max gate weight
|
600--1000kg |
|
Motor Speed |
1400r/min |
|
Travel time |
17SEC |
|
Limit switch
|
Adjust the opening angle inside the motor |
|
Noise
|
≤56dB
|
|
Working Temperature |
-45 ~ - +65°C |
|
Protection Class
|
IP44 |
|
Certification |
CCC,CE |
