Quick Details
-
Type:
-
Capacitive touch switch
-
Keypad Button Material:
-
PC, PVC, PET, Silicone, Polyester
-
Cross Reference:
-
polyethylene terephthalate
-
Life Time:
-
1 Million Times
-
Thickness(mm):
-
Custom thickness
-
Adhesive:
-
3M Tape/Cotton paper tape/PET tape
-
Operating Temperature:
-
-30~70℃
-
Storage Temperature:
-
-40~80℃
-
Certification:
-
ROSH/REACH
-
Size:
-
Custom Size
-
Color:
-
Custom Color
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DIGNITY
-
Model Number:
-
DFT7002
-
Type:
-
Capacitive touch switch
-
Keypad Button Material:
-
PC, PVC, PET, Silicone, Polyester
-
Cross Reference:
-
polyethylene terephthalate
-
Life Time:
-
1 Million Times
-
Thickness(mm):
-
Custom thickness
-
Adhesive:
-
3M Tape/Cotton paper tape/PET tape
-
Operating Temperature:
-
-30~70℃
-
Storage Temperature:
-
-40~80℃
-
Certification:
-
ROSH/REACH
-
Size:
-
Custom Size
-
Color:
-
Custom Color

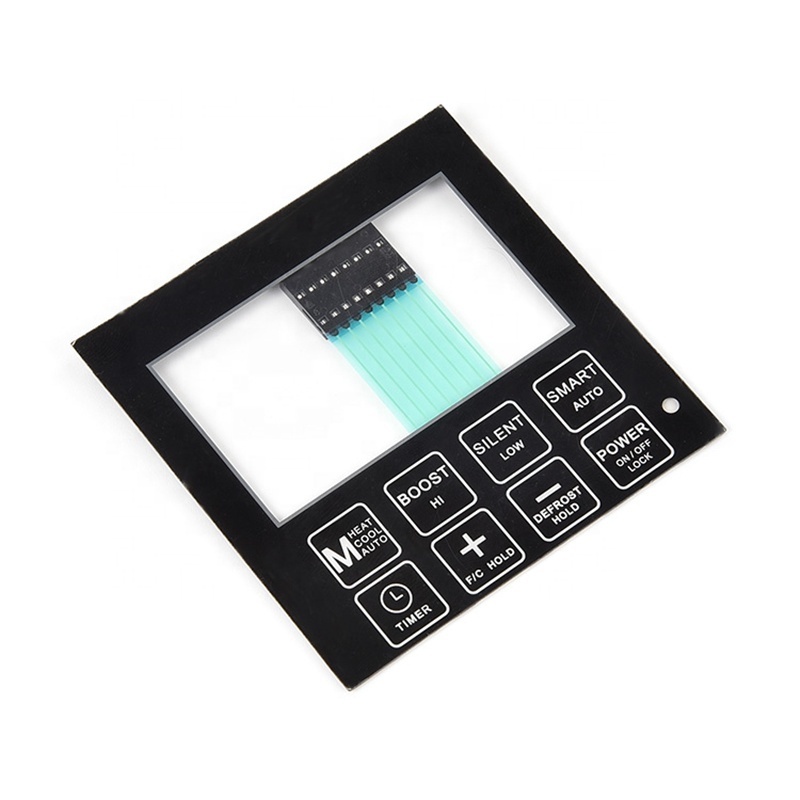

Custom prototype microwave oven membrane switch diy membrane switch
|
Parameter |
Options & Notes |
|
Size |
As per customer requirements |
|
Structure / Construction |
Flat / Embedded Switching / Raised Switching / Overlays |
|
Integration |
Waterproof and dustproof gaskets available |
|
Graphic Overlay |
|
|
Cover Materials |
PC, PVC, PET, Silicone, Polyester |
|
Thickness |
PET: 0.08 – 0.25mm PC: 0.175 – 0.35mm |
|
Decoration |
Screen printing, transparent or tinted windows, graphic overlays |
|
Additional Options |
UV hard-coat surface, various textures |
|
Interface |
|
|
Interface Options |
Pin, FFC, FPC, USB |
|
Pin Spacing |
2.54 / 1.25 / 1.0mm |
|
Housing |
Female, 2.54mm |
|
Electrical |
|
|
Circuit Material |
Silver Paste, Carbon Paste, Copper Circuit |
|
Rated Current |
35V, 100mA, 1W |
|
Response Time |
≤ 5 ms |
|
Insulation Resistance |
>100MΩ 250V DC |
|
Operating Voltage |
<50V DC |
|
Mechanical |
|
|
Contact Travel |
0.1 – 0.4mm (non-tactile) | 0.4 – 1mm (tactile) |
|
Actuation Force |
50 – 350g (non-tactile) | 200 – 750g (tactile) |
|
Lifespan |
≥1 million actuations |
|
Environmental |
|
|
Operating Temp |
-30 C to +70 C |
|
Storage Temp |
-40 C to +80 C |
|
Relative Humidity |
20 – 95% RH Non-Condensing |
|
Optional Product Enhancements |
|
|
Tactile |
Plastic & metal tactile domes |
|
Sealability |
IP & NEMA ratings, sealing integration, water-resistant designs |
|
EMI Resistance |
EMI shielding mesh, layers, or filters |
|
Lighting |
LEDs, Light Guide Film (LGF), fiber optic lighting |
|
Other |
Backplate integration, anti-bacterial materials, etc. |
