- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HUIQI
-
Model Number:
-
TrueX 800 900
-
Focal Length:
-
All elements between Mg and U.
-
Wavelength Range:
-
All elements between Mg and U.
-
Material:
-
Plastic
-
Name::
-

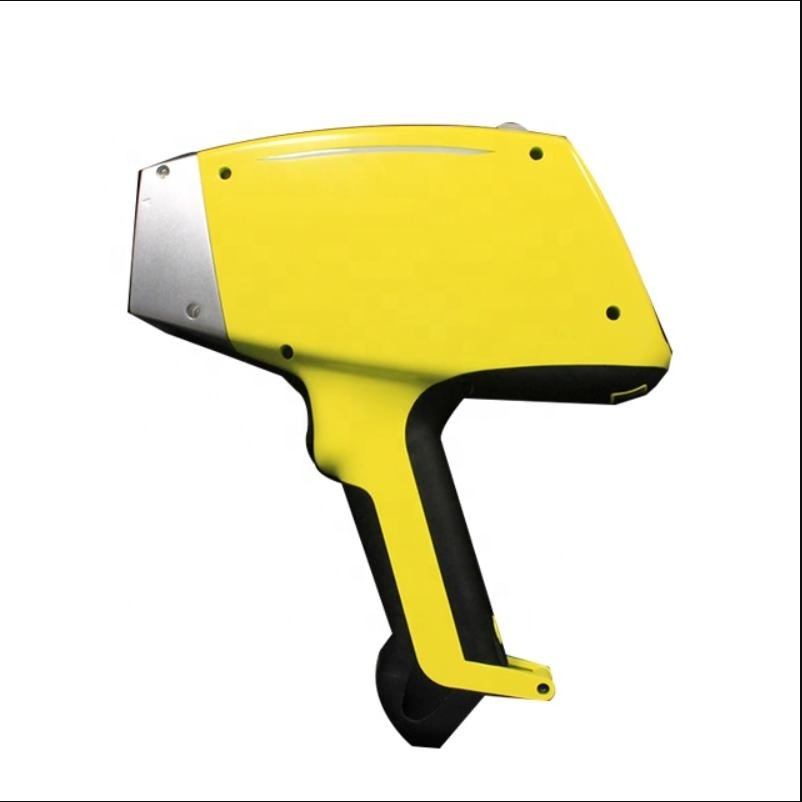

X-ray fluorescence spectrometer
-
Dimensions:
-
254 *79* 280 mm(L*W* H).
-
Detector:
-
BOOST Si-PIN detector
-
Range of detection::
-
All elements between Mg and U.
-
Operating Temperature::
-
-20℃~+50℃
-
Operating Humidity::
-
≤90%Limit of
-
The standard configuration::
-
32G
-
Range content::
-
ppm ~ 99.99%
-
Test window::
-
12mm
-
Charging system gas::
-
Helium charging system of ordinary pressure
Quick Details
-
Warranty:
-
1 YEAR
-
Size:
-
254 *79* 280 mm(L*W* H)
-
Weight:
-
1.6Kg(with battery), 1.6Kg(with battery)
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HUIQI
-
Model Number:
-
TrueX 800 900
-
Focal Length:
-
All elements between Mg and U.
-
Wavelength Range:
-
All elements between Mg and U.
-
Material:
-
Plastic
-
Name::
-
X-ray fluorescence spectrometer
-
Dimensions:
-
254 *79* 280 mm(L*W* H).
-
Detector:
-
BOOST Si-PIN detector
-
Range of detection::
-
All elements between Mg and U.
-
Operating Temperature::
-
-20℃~+50℃
-
Operating Humidity::
-
≤90%Limit of
-
The standard configuration::
-
32G
-
Range content::
-
ppm ~ 99.99%
-
Test window::
-
12mm
-
Charging system gas::
-
Helium charging system of ordinary pressure
Product Description
|
Weight
|
1.6Kg（with battery）.
|
|
Dimensions
|
254 x 79 x 280 mm（L x W x H）.
|
|
Excitation source
|
50KV/200μA maximum pipe pressure pipe flow can be adjusted freely, Agtarget (standard), Au, W, Rh target (optional).
|
|
Detector
|
BOOST Si-PIN detector
|
|
Range of detection
|
All elements between Mg and U.
|
|
Display system
|
Industrial resistive touch screen with screen size of 4.3".
Proprietary operating system software and sound waves. Multiple languages including English and Chinese. And it automatically adjusts display brightness according to the environment brightness. |
|
Data processing
|
32GB memory USB, bluetooth, WIFI, or liked to the Internet; instrument can be configured and repaired remotely.
Data can be exported via EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number). |
|
Heat dissipation
|
Equipped with a dedicated T-shaped radiator to dissipate the heat; no need to wait for the cooling of the detector time again.
|
|
Safety
|
Built-in double beam technology can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof, and shockproof suitcase,
Drawell Safety Band； |
|
Power supply system
|
Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of
dangerous goods. A single battery can last 8 hours. |
Application fields
- Nondestructive, rapid, and accurate analysis of alloy elements and alloy grade identification on the site
- Metal identification /scrap metal sorting
- QA/QC management in metal production, processing, casting, etc
- Medicine and biological medicine
- Identification of positive materials, oil refining, and petrochemical industry
- Thermal power plant, hydroelectric power station, nuclear power plant
- Accurate element analysis of raw material and PMI identification to meet production needs and ensure the security of equipment and materials used in the process.
Elements to be Analyzed and Test Modes
|
TrueX 800 elements analyzed
|
|
|
|
|
Scope of elements in standard test mode can be extended if there is such a need.
|
|
|
TrueX 800
|
can analyze Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb, and Bi,totaling 25
elements. |
|
Application Features
1. Excellent Performance
2. One-touch operation
3. Nondestructive testing (NDT)
4. Analysis software
5. Scrap metal recycling and sorting
6. Application fields, safety and standards
Certificate
