KVM HDMI Switch 4x1 Selector 4K@30Hz HDMI Switch with 4 HDMI signal input

KVM HDMI Switch 4x1 Selector 4K@30Hz HDMI Switch with 4 HDMI signal input

FOB Reference Price: Get Latest Price

≥1 Pieces

US $46

≥21 Pieces

US $40

≥201 Pieces

US $35

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: KVM HDMI Switch 4x1 Selector 4K@30Hz HDMI Switch with 4 HDMI input

USB version:: compatible with USB 1.1 Full/Low speed

HDMI resolution:: UP TO 4K @ 30Hz

Video format:: 3D

video color format:: 24/30/36 bit deep color

USB rate:: Low speed(1.5Mb/s);Full speed(12Mb/s)

Dimension (L x W x H):: 177x58x20 (mm)

Weight:: 210g

Packing:: Giftbox

Quick Details

Model Number:: HDSW4-KVM

Brand Name:: sofly

Place of Origin:: Guangdong, China

Product name:: KVM HDMI Switch 4x1 Selector 4K@30Hz HDMI Switch with 4 HDMI input

USB version:: compatible with USB 1.1 Full/Low speed

HDMI resolution:: UP TO 4K @ 30Hz

Video format:: 3D

video color format:: 24/30/36 bit deep color

USB rate:: Low speed(1.5Mb/s);Full speed(12Mb/s)

Dimension (L x W x H):: 177x58x20 (mm)

Weight:: 210g

Packing:: Giftbox

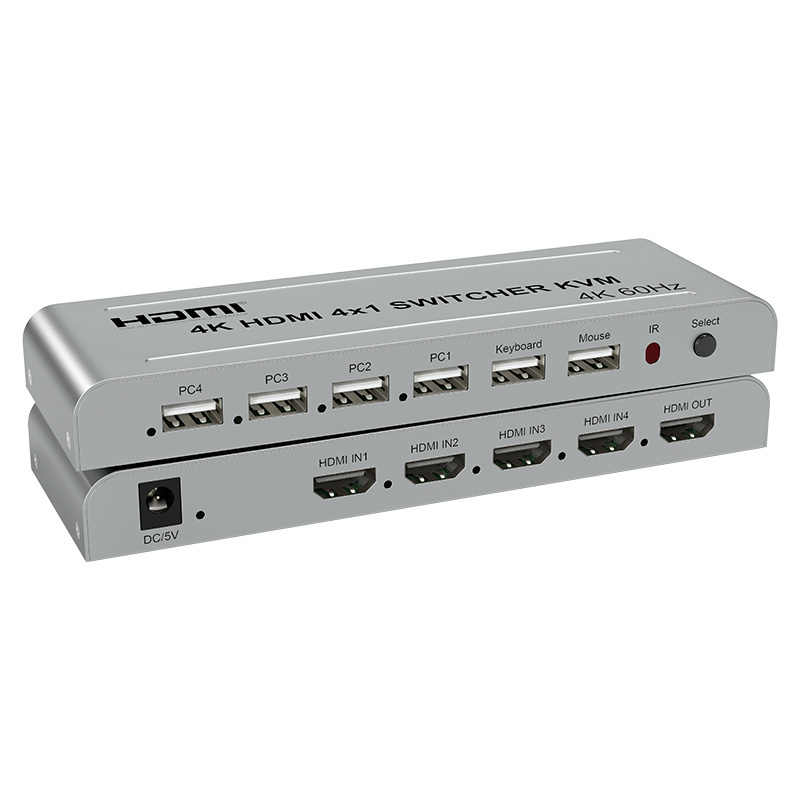

KVM HDMI Switch 4x1 Selector 4K@30Hz HDMI Switch with 4 HDMI signal input

The 4x1 HDMI switch allows 4 PC and HDMI ports to be switched to a single display terminal via remote control , buttons on unit or the keyboard . The HDMI switcher can support all hd formats including 720p, 1080i, 1080p, 4K/30Hz multichannel audio. It can be used in office, meeting room and teaching, etc.

Features

• Support 4 HDMI inputs, 1 HDMI output;

• Support 3D;

• Support highest video resolution 4K/30Hz;

• Support 3.4Gbps data rate for tmds clock up to 340MHz;

• Support 24/30/36 bit deep color;

• Can automatically switch HDMI input port (in 4 ports, the last one is priority);

• Support standard AWG26 cable, input up to 5 metres ,output up to 5 metres ( 4K/30Hz or lower );

• Support USB 1.1;

• Support 4 USB host (PC), 2 USB device (mouse/keyboard);

• Support wireless mouse and keyboard;

• Support Windows, Linux, MAC OS and Android operation system, etc;

• Plug and play, no need to install any driving program;

Specifications

USB version	compatible with USB 1.1 Full/Low speed
HDMI resolution	UP TO 4K @ 30Hz
USB rate	Low speed(1.5Mb/s) ; Full speed(12Mb/s)
Video format	3D
video color format	24/30/36 bit deep color
Support audio format	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth	340MHz
Max baud rate	3.4X3Gbps
Input cable distance	≤5m AWG26 HDMI standard cable(4K/30HZ)
Output cable distance	≤5m AWG26 HDMI standard cable(4K/30HZ)
USB cable length	Standard USB 2.0 cable ≤ 2m
Max working current	500mA
Power adapter format	input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating temperature range	(-10 to +55 °C )
Dimension (LxWxH)	178x58x20 (mm)
Weight	210g
