Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
China
-
Brand Name:
-
ELESUN
-
Model Number:
-
UL1015
-
Product name:
-
electric wire
-
Item:
-
UL1015
-
Voltage:
-
600
-
Rated Temperature:
-
90
-
Conductor:
-
BC or TC
-
Insulation:
-
PVC
-
Standard:
-
UL 758
-
Color:
-
any color
-
Package:
-
100mt/roll
-
Usage:
-
Wiring Harness
Quick Details
-
Application:
-
Overhead
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
China
-
Brand Name:
-
ELESUN
-
Model Number:
-
UL1015
-
Product name:
-
electric wire
-
Item:
-
UL1015
-
Voltage:
-
600
-
Rated Temperature:
-
90
-
Conductor:
-
BC or TC
-
Insulation:
-
PVC
-
Standard:
-
UL 758
-
Color:
-
any color
-
Package:
-
100mt/roll
-
Usage:
-
Wiring Harness
Description:

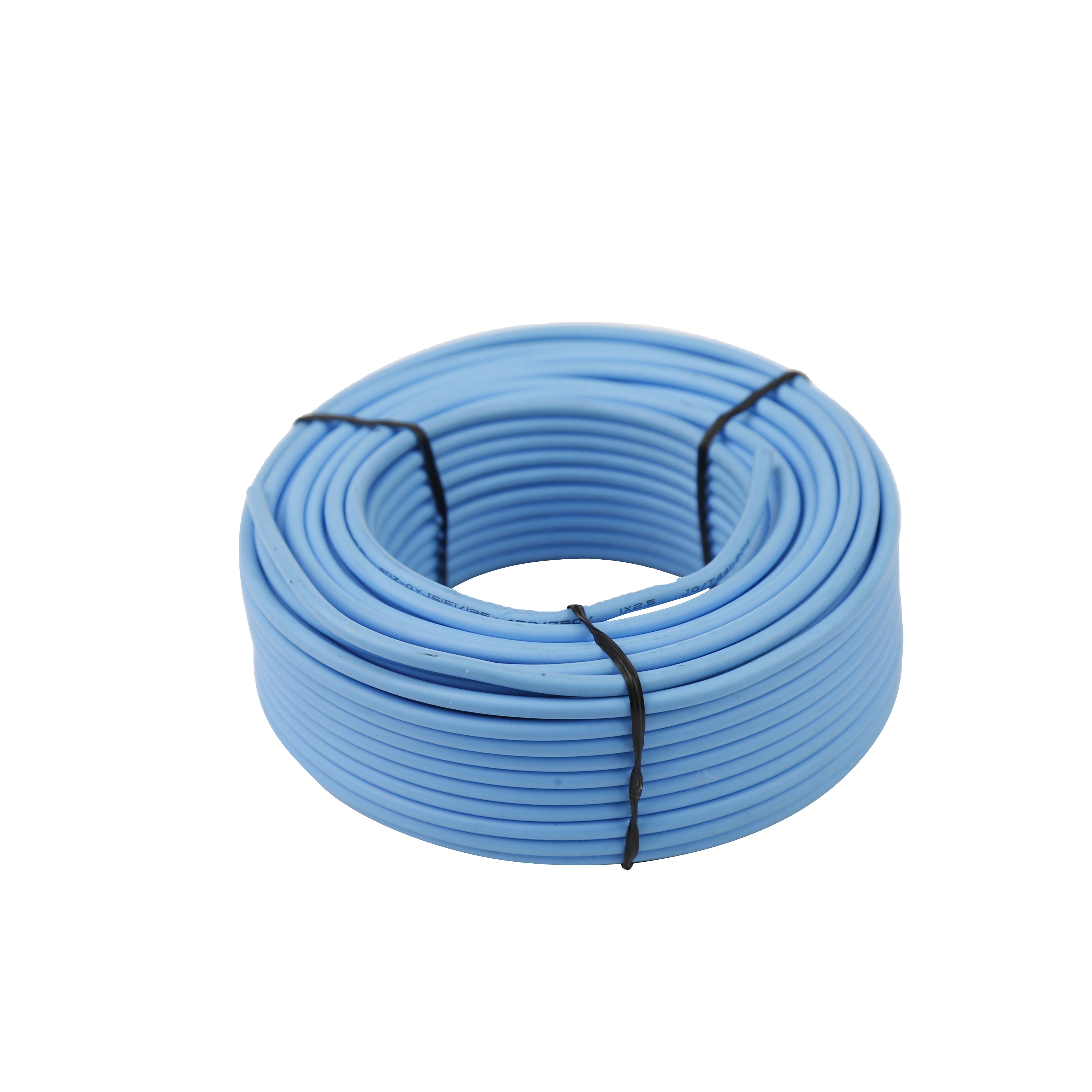

UL10 15 hook up wire is made of tinned copper, the insulation is PVC,the conductor is usually 19 strands, elesun cable can produce from 22awg to 1awg to meet different application requirements.
Application :
UL style 1015 lead wire is a general-purpose electronic hook up wire, used in the internal wiring of appliances and electronic equipment, it can resistant to water, oil, acid, solvent and fungus . The jacket is PVC , the rated voltage is 3 00 voltage, it can be used where temperatures range from -40 ℃ to + 105 ℃ . UL 1015 lead wire can also use as internal wiring in appliances that are exposed to oil which does not exceed 1 0 5 ℃ in temperature.
The difference from UL1007: both types of cable is insulated by PVC but the thickness is different, UL 1015 is thicker, and the rated voltage of UL1015 is 600V while the rated voltage of UL1007 is 300V.
The UL1015 lead wire produce by elesun cable is compliant to ROSH,ASTM
Delivery: Normally3~5 days for samples,it will depend on when you place the order and at that time if our production is busy or free. After all the sample confirmed, 7~15 days for the mass production.However,we'll do our best to speed up with not low the quality.
|
UL style 1 015 AWM 1 015 hook up wire specifications |
|
|
Material of Inner Conductor |
Tinned copper |
|
No. of Inner Conductor |
Solid , 19 strands, 41 strands |
|
Material of Jacket |
PVC |
|
Diameter of jacket |
From 2 2 awg to 1 awg |
|
Rated Working Temp |
-40 ℃ to + 105 ℃ |
|
Voltage |
600 V |
Conductor structure and Resistance
