Quick Details
-
Model Number:
-

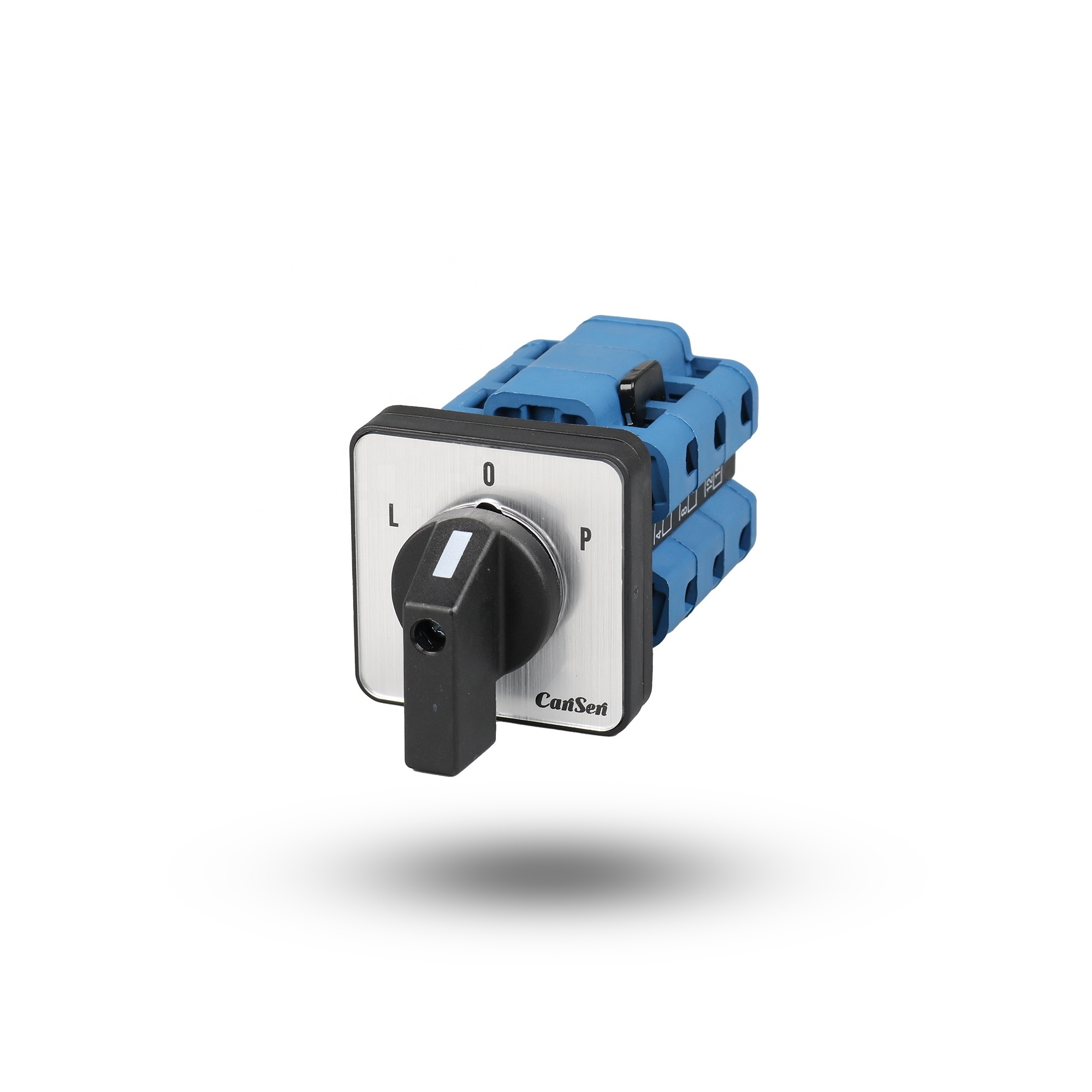

LW26-32F L-O-P 3P
-
Max. Current:
-
10A/20A/25A/32A/40A/63A/125A/160A/250A/315A
-
Product Name:
-
automatic electrical generator change over switch
-
Operating temperature:
-
25~+40℃
-
Installation:
-
Plate mount/singal hole/two hole/din rail etc install
-
Color:
-
Blue,Silver,Yellow&Red
-
Sample:
-
Available
-
Handle:
-
I,R ,P etc type
-
Steps/Layers:
-
1 to 15 steps
-
Positions:
-
2/3/4/5/6/7/8/9/10/11/12
-
OEM service:
-
Available
-
Certification:
-
CE, TUV,ROHS,UL,ISO9001,IEC60947-3
Quick Details
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Cansen
-
Model Number:
-
LW26-32F L-O-P 3P
-
Max. Current:
-
10A/20A/25A/32A/40A/63A/125A/160A/250A/315A
-
Product Name:
-
automatic electrical generator change over switch
-
Operating temperature:
-
25~+40℃
-
Installation:
-
Plate mount/singal hole/two hole/din rail etc install
-
Color:
-
Blue,Silver,Yellow&Red
-
Sample:
-
Available
-
Handle:
-
I,R ,P etc type
-
Steps/Layers:
-
1 to 15 steps
-
Positions:
-
2/3/4/5/6/7/8/9/10/11/12
-
OEM service:
-
Available
-
Certification:
-
CE, TUV,ROHS,UL,ISO9001,IEC60947-3
Basic Information
1.Mainly applies to 440V and below , AC 50Hz or 240V and below DC circuits.
2.For breaking and closing ,change-over of circuits under unfrequenly manual operation.
3. 10 current ratings: 10A,20A,25A,32A,40A,63A,125A,160A,250A and 315A.
4. F inger protection terminals is available.
4.
The LW26 series rotary switch has two derivatives,LW26GS
Pad-lock type
and LW26S
Key-lock type
.
Both of them are applicable in circuits when an
physical control is required
.
5.We can equip
protective box
(IP65) for 20A to 250A.
Application
1.control switch of 3 phase motors
2.control switch gear
3.control switch of instruments
4.change-over switch of machinery and welding machine.
Authentication
The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1.
Working Conditions
1. Ambient temperature DO NOT exceed 40℃ , and the average temperature,measured over a period of 24 hours, DO NOT exceed 35℃ .
b.Ambient temperature should not be below -25℃ .
c.Should not be installed above 2000m above sea level.
d.The humidity should not exceed 50% when the ambient temperature is 40℃ and higher humidity is allowed for lower temperature .
| Specification | LW26-32 | |
| LW26-32F | ||
| Rated insulation voltage | 660/690 | |
| Rated thermal current | 32 | |
| Rated working voltage | 240 | 240 |
| Rated working current | / | / |
| AC-21A | 32 | 32 |
| AC-23A | 30 | 30 |
| AC-2 | 30 | 30 |
| AC-3 | 22 | 22 |
| AC-4 | 11 | 11 |
| AC-15 | 14 | 6 |
| DC-13 | / | / |
| Power | / | / |
| AC-23A | 7.5/4 | 15/7.5 |
| AC-2 | 7.5 | 15 |
| AC-3 | 5.5/4 | 11/5.5 |
| AC-4 | 2.7/1.5 | 5.5/3 |
1.Installation Conditions
a. A clean environment is required
b.Please follow our manual
2.Order Procedure
When placing an order please specify the contact diagram of the product you require.The LW26 series rotary switch have the similar contact diagram as the other rotary switches like LW2D,LW5D,LW6D,LW8D,LW12,LW15,HZ5D and HZ25D.Our factory have published<The General Contact Diagram for Cansen Rotary Switches >Which will help you to specify the contact diagram.
In addition,please specify the current rating, mounting plate,handle type,color and quantityas well.
For instance:
When ordering 20A,rotary angle 60°, character code C,contact diagram code 5391, M1 plate, black R handle 20 unites. The order can be: LW26-20.6C5391/2A11R(M1R)20units.
Due to the update of the technologies, we reserve the righting of updating the catalogue without further notices.
