5 ports gigabit poe switch for Hikvision IP Camera
5 ports gigabit poe switch for Hikvision IP Camera
5 ports gigabit poe switch for Hikvision IP Camera
5 ports gigabit poe switch for Hikvision IP Camera
5 ports gigabit poe switch for Hikvision IP Camera
5 ports gigabit poe switch for Hikvision IP Camera
5 ports gigabit poe switch for Hikvision IP Camera
5 ports gigabit poe switch for Hikvision IP Camera

5 ports gigabit poe switch for Hikvision IP Camera

FOB Reference Price: Get Latest Price
≥20 Pieces
US $26
≥100 Pieces
US $25
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Product Name:
5-port 10/100/1000Mbps POE power supply switch
Manufacturer:
Shenzhen Starwell Technology
POE Specifications:
Support IEEE802 .3af,IEEE802 .3at international power supply standard
POE power supply parameter:
Single port:IEEE802.3af 15.4W IEEE802.3at 30W
Max Power:
1AC: 48V/1.25A/60W or 48V/2A/96W (Optional)
Power supply line:
Data line to 1 2 3 6 Free line to 4 5 7 8 (alternative)
Dimensions:
132x83x35mm(H x W x D)
Weigh(kg):
0.42kg
Warranty:
1 year
Certification:
CE/ROHS

Quick Details

Transmission Rate:
1000Mbps
Communication Mode:
Full-Duplex & Half-Duplex
Switch Capacity:
1.0G
Place of Origin:
Guangdong, China
Product Name:
5-port 10/100/1000Mbps POE power supply switch
Manufacturer:
Shenzhen Starwell Technology
POE Specifications:
Support IEEE802 .3af,IEEE802 .3at international power supply standard
POE power supply parameter:
Single port:IEEE802.3af 15.4W IEEE802.3at 30W
Max Power:
1AC: 48V/1.25A/60W or 48V/2A/96W (Optional)
Power supply line:
Data line to 1 2 3 6 Free line to 4 5 7 8 (alternative)
Dimensions:
132x83x35mm(H x W x D)
Weigh(kg):
0.42kg
Warranty:
1 year
Certification:
CE/ROHS

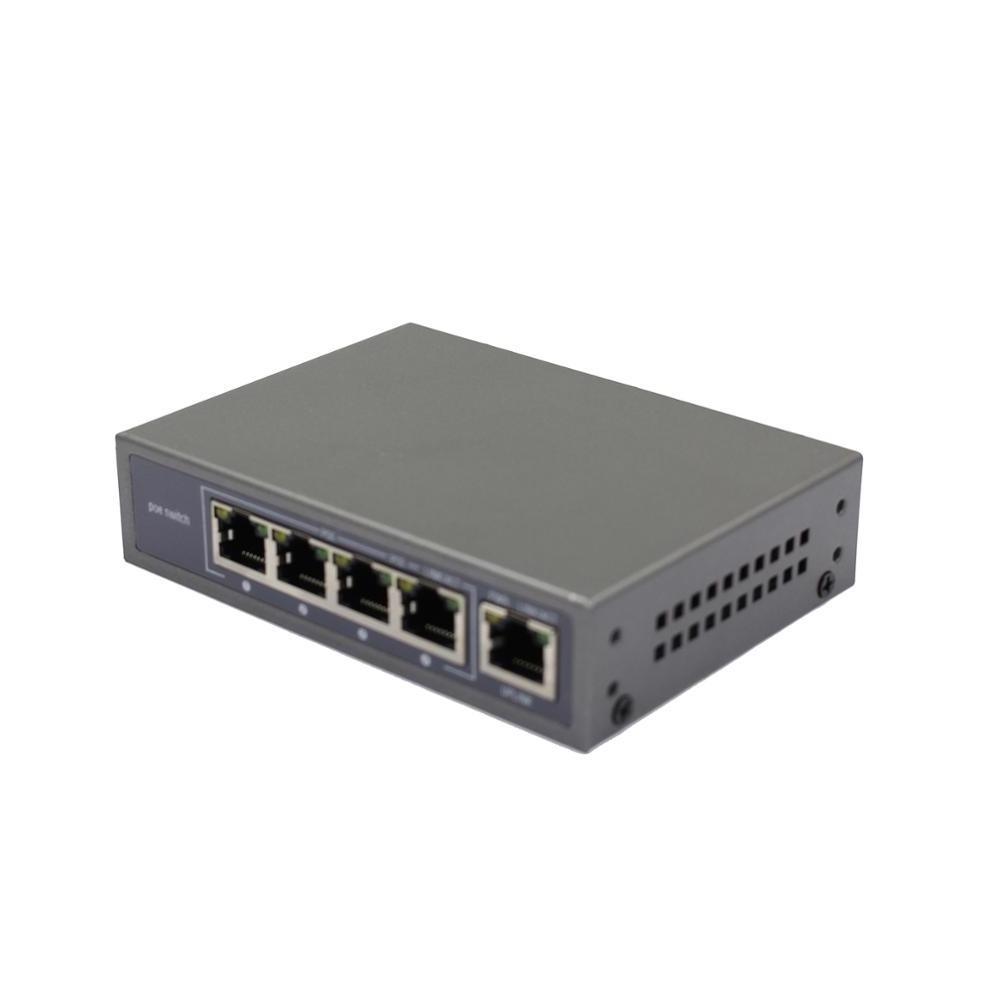

5 ports gigabit poe switch for Hikvision IP Camera

Product Description

EC541G-PF/PT-PoE is a 5-port unmanaged POE (Power-over-Ethernet) Industrial Ethernet switch, it supports 4 POE ports which are classified as power source equipment (PSE). EC541G-PF/PT-PoE uses UTP CAT5e to transmit data and power at the same time from a network node. The port is not only for 10/100/1000MBPS connection,but which POE port can also provide IEEE802.3ats standard of power supply. By testing, EC541G-PF/PT-PoE suits for 802.3af/at terminal equipment supply after classifying,without fear of damaging the private standard POE or non POE equipment. EC541G-PF/PT-PoE greatly reduces the additional power wiring cost of the users, wireless LAN access points, video surveillance camera equipment and so on,providing users with higher flexibility and mobility.

Advanced self-adaptive algorithm only supply PD terminal equipment with power, so without fear of damaging to private standard POE or non POE equipment. It will stop supplying power when POE equipment isn’t connected. EC541G-PF/PT-PoE, with terse and reliable design, identify automatically the requirement of POE, speed, duplex ,and using Auto UPlinkTM cable types.

Product Features
1. 5 self-adaptive port connect RJ45 with 10/100/1000MBPS 2, Supply power to AP and IP cameras when using UTP CAT5e
2. 1~4 port supports IEEE802.3af Ethernet power supply standard
Meet the standards of IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX
3. Stream control:Full-Duplex takes IEEE 802.3x standard,Half-Duplex takes Back pressure standard.
4. Auto MDI/MDIX 7,Maximum POE power: 120 w
5. Maximum output is 30W of single port. 9,Using store-and-forward switching mechanism 10,No fan, natural cooling
6. The switch with Small, compact and quiet design is suitable for placed on the desktop

Specification

Detailed Description
Product Name 5-port 10/100/1000Mbps POE power supply switch
Model EC541G–PF/PT–PoE
POE Specifications Support IEEE802 .3af,IEEE802 .3at international power supply standard
POE power supply parameter Single port:IEEE802.3af  15.4W IEEE802.3at  30W
Max Power 1AC: 48V/1.25A/60W or 48V/2A/96W (Optional)
Power supply line Data line to 1 2 3 6  Free line to 4 5 7 8 (alternative)
Port and Performance
Electrical interface parameter ·Electrical interface:RJ45
·Cable Type :UTP CAT5e Or higher level of New CAT6
·Transmission distance :100 meter
Network Protocol and Standards · IEEE802.3i  10BASE-T
· IEEE802.3u  100BASE-TX
· IEEE802.3x   Flow Control
· IEEE802.3af Power over Ethernet
· IEEE802.3at Power over Ethernet
performance specification · Store and forwarding
· Backplane bandwidth: 1.0G EC541 series;
· Packet forwarding rate:·1.19Mpps
· Transfer mode: Full-Duplex or Half-Duplex adaptive,self-adaption
· Addressing: 48 bit MAC address
·Mac Address Table: 1,000 MAC address per
· Network delay: 100Mbps to 100Mbps, less than 20ms under 64byte frame
LED indicators · Per Port: Link, Activity, Speed
· Per equipment: Power LED , POE indicators LED
safety protection IEC61000-4-2(ESD)±15KV(air),±8KV(contanc),be able to support 8/20us  24A(12A)

3.Our company
FAQ

1. Are you a manufacturer or trading company?

We are a manufacturer which has 8 years expearance in power supply/power adapter/ charger field.

2. Is your product in full current and full power ?

Yes, we will not do non-full current and non-full power product to customers.

3. Is your products safety ?

Yes. first our matterials are new and fireproof . besides, our products are approved by international certificates CE ROHS UL FCC TUV GS PSE KC CB BSMI...

4. What is your MOQ?

500pcs

5. What is your product warranty policy?

One year

6. What is the delivery time ?

For sample order , 2-3 workingdays after confirm
For bulk order , generally speaking is 7-15 workingdays after confirm , detailed delivery time bases on your order quantity

7. What service could you offer ?

OEM ODM are welcome

8. What is your payment method and trade term ?

By TT , Paypal , Western Union

For bulk order, 30% as deposit, 70% pay off before shipment
