Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
MW- LXSG15mm-20mm
-

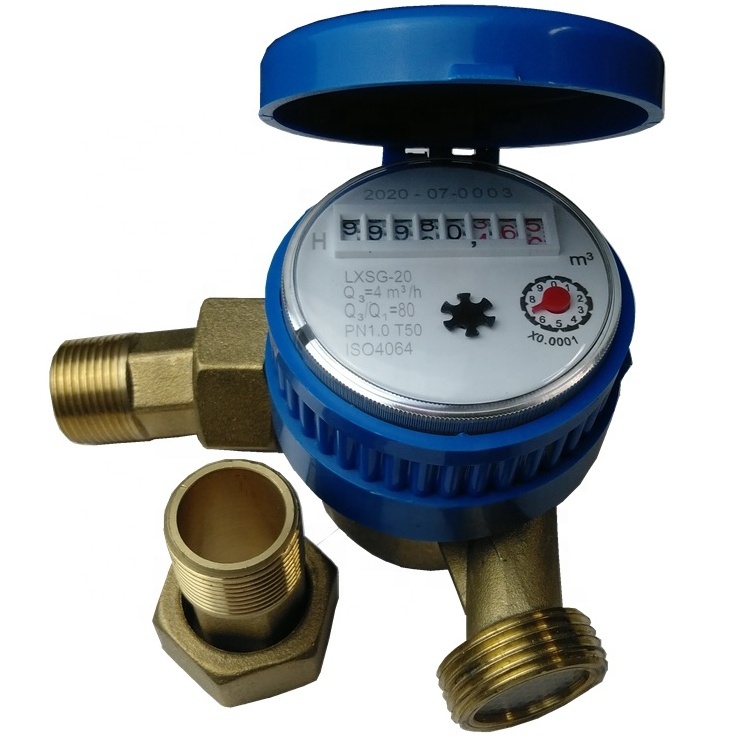

Product Name:
-
Dry Dial Flow Water Meter
-
Application:
-
Measuring water
-
Feature:
-
Multi jet, dry type
-
Standard:
-
ISO 4064
-
Temperature:
-
≤ 40 °C
-
Size:
-
15mm-40mm
-
Water pressure:
-
≤ 10bar (16 bar on request)
-
Inlet of body:
-
With plastic filter
-
Head Cover( lid):
-
Plastic lid
-
Tailpieces(connectors):
-
Brass
Quick Details
-
Warranty:
-
One year
-
Type:
-
Multi-jet meters, Ultrasonic meters, Prepaid water meters
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
OEM
-
Model Number:
-
MW- LXSG15mm-20mm
-
Product Name:
-
Dry Dial Flow Water Meter
-
Application:
-
Measuring water
-
Feature:
-
Multi jet, dry type
-
Standard:
-
ISO 4064
-
Temperature:
-
≤ 40 °C
-
Size:
-
15mm-40mm
-
Water pressure:
-
≤ 10bar (16 bar on request)
-
Inlet of body:
-
With plastic filter
-
Head Cover( lid):
-
Plastic lid
-
Tailpieces(connectors):
-
Brass
Tip: There are many types of water meters and their materials are also different. If you have any questions, please email us or contact our online customer service directly.
This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.
• Single jet, dry dial,direct reading, Produced in the versions for cold water(30℃) and (90℃) in the diameters 15 to 20mm. 360°Rotating dial. Long durability and elevated precision guaranteed.
eature:
Dry-dial, magnetic drive, Resistance to exterior magnet interference.
Single-jet
Selected high quality materials for steady&reliable characteristic.
Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service.
Measuring accuracy conform to ISO 4064 class B Standard.
Inner or outer adjusting device for option.
Small in size and light in weight
Dry-dial single-jet water meter is a credible instrument for trade settlement.
Mainly used for household measurement of residential quarters.
Implementation standard of this product
ISO4064: 2014/OIML: R49-2013.
GB/T778.1-2018: Measurement of Water Flow in Closed Full Pipelines, Cold Water Meters forDrinking and Hot Water Meters Part 1: Specifications.
GB/T778.2-2018: Measurement of Water Flow in Closed Full Pipelines, Test Methods andEquipment for Drinking Cold Water Meters and Hot Water Meters Part 2.
Ex-factory verification is based on the National Metrological Verification Regulation of the People's Republic of China "JJG 162-2009 Verification Regulation of Cold-Water Meters" standard.
Dry-dial single-jet water meter is a credible instrument for trade settlement.
Mainly used for household measurement of residential quarters.
DIMENSIONS AND WEIGHT
| Meter size | L | B | H | Connecting Thread | Weight |
| length | Width | Height | |||
| Dia DN(mm) | mm | D | kg | ||
| 13 | 110 | 80 | 80 | G3/4"B | 0.7 |
| 20 | 130 | 80 | 80 | G1"B | 0.95 |
| 25 | 160 | 80 | 93 | G11/4"B | 1.4 |
Water temperature:≤50°C for cold water meter
Water temperature:≤90°C for hot water meter
Working pressure:≤1.6Mpa
Downstream disturbance grade: D0
MAXIMUM PERMISSIBLE ERROR:
a) In the lower zone from Q1 inclusive up to but excluding Q2 is ±5%
b)If the temperature≤30℃, In the upper zone from Q2 inclusive up to and including Q4 is ±2%
If the temperature>30℃, In the upper zone from Q2 inclusive up to and including Q4 is ±3%
Water meter accessories picture:
product composition:
Water meter base table: the main body (pipeline) structural parts of the meter. The internal structure of the water meter can be divided into three parts: the housing, the sleeve, and the inner core from the outside to the inside.
Water meter installation diagram
For the variety of implementation conditions appropriate threaded connection unions, as well as special versions are available - individual water meters for manifold, valve, water meter fittings and parts provide as optional devices.
