Quick Details
-
Air Pressure(MPa):
-
0.7 MPa
-
Sheet Thickness(mm):
-
0.3 - 2.5 mm
-
Heating Power (kW):
-
45 kW
-
Air Comsumption(L/min):
-
2200 L/min
-
Water Comsumption(L/min):
-
0.1 L/min
-
Place of Origin:
-
China
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
12.0*2.0*2.2
-
Weight (T):
-
13 T
-
Name:
-
High Efficiency PP Plastic Cup Making Machine
-
Material:
-
pp ps
-
Application:
-
Plastic Products
-
Color:
-
Customized Color
-
Controller:
-
PLC+Touch Screen
-
Weight:
-
10T
-
Power:
-
145KW
-
Applicable sheet:
-
PLA PP
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Max.Forming Height(mm):
-
100 mm
-
Forming Width (mm):
-
450 mm
-
Forming Length (mm):
-
720 mm
-
Air Pressure(MPa):
-
0.7 MPa
-
Sheet Thickness(mm):
-
0.3 - 2.5 mm
-
Heating Power (kW):
-
45 kW
-
Air Comsumption(L/min):
-
2200 L/min
-
Water Comsumption(L/min):
-
0.1 L/min
-
Place of Origin:
-
China
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
12.0*2.0*2.2
-
Weight (T):
-
13 T
-
Name:
-
High Efficiency PP Plastic Cup Making Machine
-
Material:
-
pp ps
-
Application:
-
Plastic Products
-
Color:
-
Customized Color
-
Controller:
-
PLC+Touch Screen
-
Weight:
-
10T
-
Power:
-
145KW
-
Applicable sheet:
-
PLA PP
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Product Description
PP PET sheet extrusion line
PP PET transparent plastic sheet extruder sheet making machine is for high heat thermoplastic molding applications such as the production of protective exteriors on luggage and electronics casings. Product features excellent heat resistance.
PRODUCT SPECIFICATIONS
|
Maximum output
|
220-250Kg/hr
|
|
|
|
|||
|
Screw diameter
|
110mm
|
|
|
|
|||
|
Sheet thickness
|
0.3-2.5mm
|
|
|
|
|||
|
Sheet width
|
720mm
|
|
|
|
|||
|
Calender roll diameter
|
400mm
|
|
|
|
|||
|
Calender rolls pitch range
|
30mm
|
|
|
|
|||
|
An aspect ratio
|
33:1
|
|
|
|
|||
|
Die width
|
850mm
|
|
|
|
|||
|
Calender roll surface length
|
800mm
|
|
|
|
|||
|
Number of calender rolls
|
3
|
|
|
|
|||
|
Extruder motor power
|
75Kw
|
|
|
|
|||
|
Barrel heating power
|
30Kw
|
|
|
|
|||
|
Die heating power
|
10Kw
|
|
|
|
|||

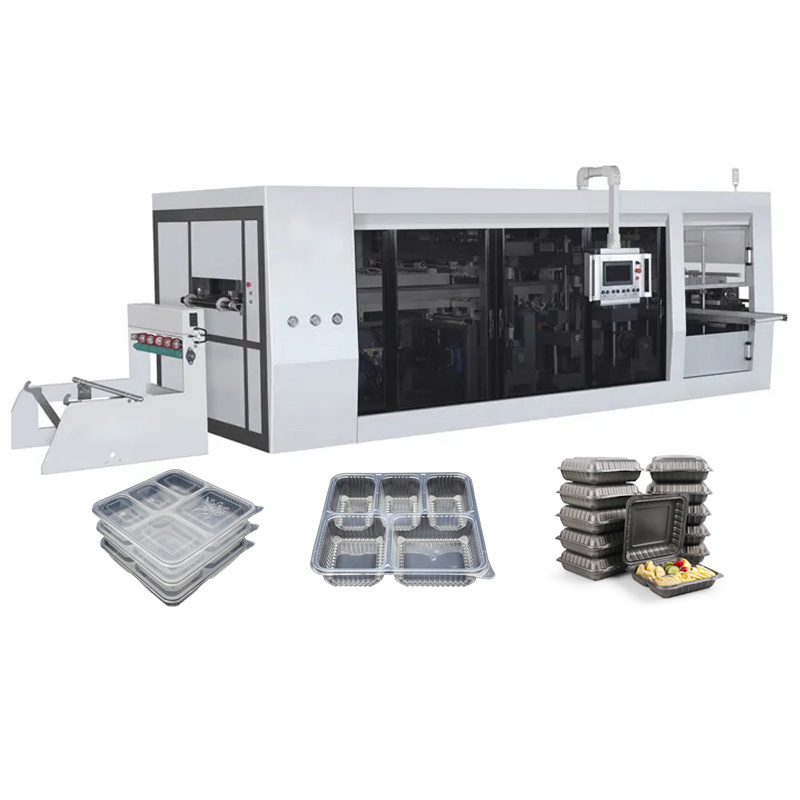

PP cup or bowl thermoforming machine
Plastic cup thermoforming machine is our lasted developed product, Sheet feeding and stretching part are driven by servo motor.Machine produces disposable products, such as plastic cup, bowl, lid, and box through the workflow of sheet feeding, sheet heating, forming, cutting and blowing, widely used and suitable for most of the customer requested. PLC for program, manual interface for operation, stable, low noise, and high efficiency.
|
1,Power Supply
|
380V/3P/50HZ
|
|
|
|
|||
|
2,Material
|
PP/PS/PET/PVC plastic thermoforming sheet
|
|
|
|
|||
|
3,Driving Method
|
Cam + Air cylinder
|
|
|
|
|||
|
4,Forming Speed
|
<=32cycles/min (Forming depth<=130mm)
|
|
|
|
|||
|
5,Sheet Width
|
W=720mm (adjustable)
|
|
|
|
|||
|
6,Air Pressure
|
0.6~0.8Mpa
|
|
|
|
|||
|
7,Air Consumption
|
2200L/min
|
|
|
|
|||
|
8,Air Compressor Exhausting Capacity
|
2200~3000L/min
|
|
|
|
|||
|
9,Water Consumption
|
<=0.5m3
|
|
|
|
|||
|
10 Machine Dimension
|
3.3×1.4×2.2m
|
|
|
|
|||
|
11 Electrical Consumption
|
Approx. 45KW
|
|
|
|
|||
Products Show
Services
Packaging
1.The standard package is wooden box without fumigation.
2. We can also pack it according to customers special request.
Delivery Time
30 days after order confirmed, the detail delivery date should be decided according to production season and order quantity
Payment Terms
30% of total amount as down payment shall be paid by T/T after signing the contract, the rest 70% shall be paid by T/T before delivery.
After-sale service
1.During the first year,all parts are for free,except the consumables and artificially damaged.
2.We will supply operation video for installation,we can also solve your problems through email,photos and some communicate software.we also can provide oversea service.
1.The standard package is wooden box without fumigation.
2. We can also pack it according to customers special request.
Delivery Time
30 days after order confirmed, the detail delivery date should be decided according to production season and order quantity
Payment Terms
30% of total amount as down payment shall be paid by T/T after signing the contract, the rest 70% shall be paid by T/T before delivery.
After-sale service
1.During the first year,all parts are for free,except the consumables and artificially damaged.
2.We will supply operation video for installation,we can also solve your problems through email,photos and some communicate software.we also can provide oversea service.
