Quick Details
-
Blade Length (mm):
-
2600 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
0 mm
-
Brand Name:
-
sds
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
3000 KG
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3100mmx1500mmx1500mm
-
Year:
-
2024
-
Product name:
-
Sheet iron shearing machine
-
Control system:
-
MD11 Control System
Quick Details
-
Max. Cutting Width (mm):
-
2500
-
Max. Cutting Thickness (mm):
-
4 mm
-
Shearing Angle:
-
1.3
-
Blade Length (mm):
-
2600 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
0 mm
-
Brand Name:
-
sds
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
3000 KG
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3100mmx1500mmx1500mm
-
Year:
-
2024
-
Product name:
-

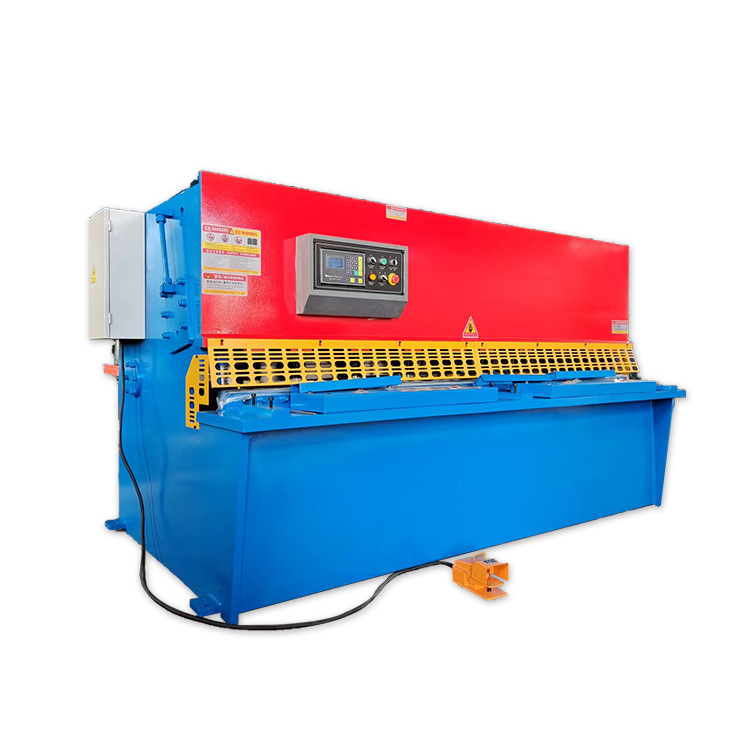

Sheet iron shearing machine
-
Control system:
-
MD11 Control System
Main features
1. This machine adopts a European style machine design, which is novel and unique, beautiful and generous, and has a unique structure. All components of this machine are designed using computer-aided design, finite element analysis and calculation, and computer-aided manufacturing (CAD/CAE/CAM) software
Design the row structure to fully ensure the structural strength and rigidity of each component.
2. Full steel plate welded structure, hydraulic transmission, vibration stress relief.
3. Adopting advanced integrated hydraulic system with overload protection function and good reliability.
4. The upper tool holder adopts an inward tilting structure, which is convenient for material cutting and can improve the cutting accuracy of the workpiece.
5. Three point support rolling guide rail can effectively eliminate guide rail clearance and improve shear quality.
6. Quickly adjust the gap between the upper and lower blade edges, display on the dial, and adjust easily, quickly, and accurately.
7. Rectangular blade, all four edges can be used, with a long service life.
8. The size and cutting frequency of the rear stopper can be controlled by the CNC system.
9. The front of the workbench is equipped with a protective fence, which provides personal safety protection.
10. The gate type shearing machine has the advantages of stable and safe operation, low noise, low energy consumption, and fast speed compared to general shearing machines.
| CNC system | Optional |
| Standard Voltage | 380V,three-phase,50HZ (supports customization) |
1. Technical solutions: we can provide technical solutions within one day.
2. Online video: show you machine working video in factory .
3. Installation service: this is available with all of our machines,
4.Training service: Our technician will teach you how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality guarantee: 1 year warranty, we provide lifetime service. We arrange final test before shipment, After making sure machine is the best performance, then make shipments.
6. 100% response rate: we will reply your question within 12 hours.
