Quick Details
-
Model Number:
-
SY-1206D
-
Place of Origin:
-
Guangdong, China
-
Size:
-
152*60*78(mm)
-
Weight:
-
0.5KG
-
Output Voltage:
-
12 Volts
-
Display:
-
Larger LCD display
-
Product name:
-
SY-1206D
-
Application:
-
lead-acid batteries, storage batteries, gel batteries
-
Package:
-
62.5X44.5X32.5 cm
-
Working Temperature:
-
-40~+95 ℃
Quick Details
-
Type:
-
Electric
-
Port:
-
AC
-
Brand Name:
-
Yong Fa
-
Model Number:
-
SY-1206D
-
Place of Origin:
-
Guangdong, China
-
Size:
-
152*60*78(mm)
-
Weight:
-
0.5KG
-
Output Voltage:
-
12 Volts
-
Display:
-
Larger LCD display
-
Product name:
-
SY-1206D
-
Application:
-
lead-acid batteries, storage batteries, gel batteries
-
Package:
-
62.5X44.5X32.5 cm
-
Working Temperature:
-
-40~+95 ℃
Feature

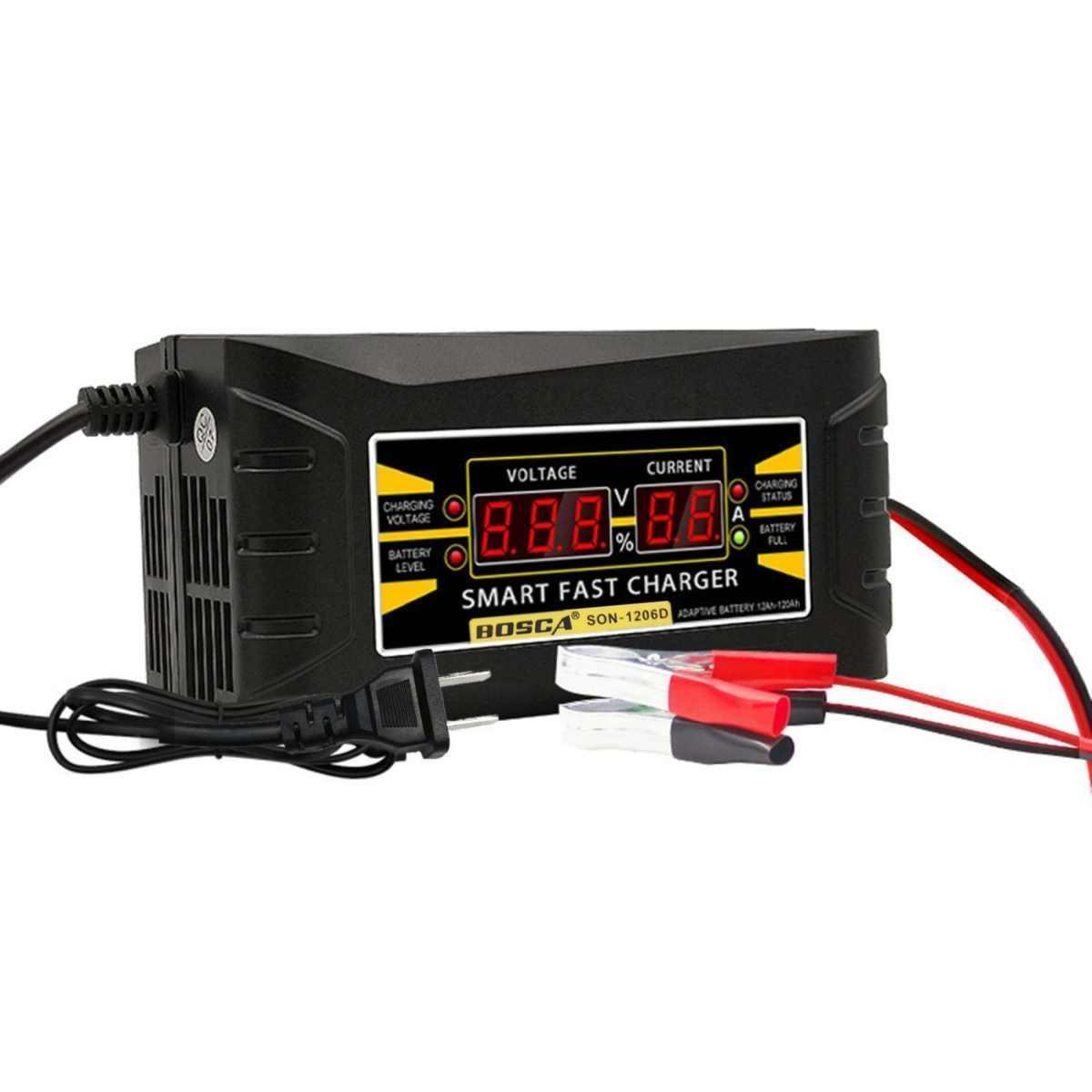

YongFa 12V 6A Battery Charger with digital display
1. Max charging current:5-6A
2. Rated input voltage:110-240V
3. Adopt PWM charging mode,auto stop charging when the battery gets fully charged
4. Charging voltage/Battery capacity/Charging current LCD real-time display
5. Online battery detection
6. Applicable for gel battery and lead-acid battery
7. This battery charger uses micro MCU controller to manage the process of the battery charging. The charger will automatically
stop charging when it is getting fully charged.
8. This battery charger uses three-phase charging mode(PWM charging mode), which includes constant current charging phase,
constant voltage charging phase, floating charging phase.
9. With online battery detection, short circuit protection, over voltage protection, Anti - reverse connecting protection,etc
10. The smart charging indicator shows charging process directly,which facilitates users to manage the current of the battery
New Features
1. This battery charger uses micro MCU controller to manage the process of the battery charging. The charger will automatically
stop charging when it is getting fully charged.
2. This battery charger uses three-phase charging mode(PWM charging mode), which includes constant current charging phase,
constant voltage charging phase, floating charging phase.
3. With online battery detection, short circuit protection, over voltage protection, Anti - reverse connecting protection,etc.
4. The smart charging indicator shows charging process directly,which facilitates users to manage the current of the battery.
Three-phase charging mode:
Constant current mode: When the voltage of the battery is lower than the value set by the charger, the charger will work under the constant current mode and supply the constant current for the battery.
Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.
Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode, and the current will cut down to the given current gradually, that means the battery power is full, then the pilot lamp will turn green and the fan will stop working. The charger will turn the mode into floating charge mode automatically. At this moment,the battery can be stopped charging or keep on floating charge for half an hour.
2. Rated input voltage:110-240V
3. Adopt PWM charging mode,auto stop charging when the battery gets fully charged
4. Charging voltage/Battery capacity/Charging current LCD real-time display
5. Online battery detection
6. Applicable for gel battery and lead-acid battery
7. This battery charger uses micro MCU controller to manage the process of the battery charging. The charger will automatically
stop charging when it is getting fully charged.
8. This battery charger uses three-phase charging mode(PWM charging mode), which includes constant current charging phase,
constant voltage charging phase, floating charging phase.
9. With online battery detection, short circuit protection, over voltage protection, Anti - reverse connecting protection,etc
10. The smart charging indicator shows charging process directly,which facilitates users to manage the current of the battery
New Features
1. This battery charger uses micro MCU controller to manage the process of the battery charging. The charger will automatically
stop charging when it is getting fully charged.
2. This battery charger uses three-phase charging mode(PWM charging mode), which includes constant current charging phase,
constant voltage charging phase, floating charging phase.
3. With online battery detection, short circuit protection, over voltage protection, Anti - reverse connecting protection,etc.
4. The smart charging indicator shows charging process directly,which facilitates users to manage the current of the battery.
Three-phase charging mode:
Constant current mode: When the voltage of the battery is lower than the value set by the charger, the charger will work under the constant current mode and supply the constant current for the battery.
Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.
Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode, and the current will cut down to the given current gradually, that means the battery power is full, then the pilot lamp will turn green and the fan will stop working. The charger will turn the mode into floating charge mode automatically. At this moment,the battery can be stopped charging or keep on floating charge for half an hour.
Product Paramenters
|
Product Name
|
battery charger 6A
|
battery charger 5A
|
|
Model
|
SY-1206D
|
SY-1205
|
|
Input Voltage
|
110V-240V
|
110V-240V
|
|
Output Voltage
|
12V
|
12V
|
|
Rated Frequency
|
47-63HZ
|
47-63HZ
|
|
Charger Current
|
6A
|
5A
|
|
Charger Mode
|
Three-phase
|
Three-phase
|
|
Full load efficiency
|
≥ 87%
|
≥ 87%
|
|
Packed Qty
|
16PCS
|
16PCS
|
