Quick Details
-
Applicable Components:
-
0402~5050
-
Part number:
-
CL Feeder
-
Usage:
-
LED Tube Large Qty Production
-
Power Supply:
-
AC220V 50Hz / AC110V 60Hz
-
Visual camera:
-
CCD High Definition Camera
-
Payment:
-
T/T
-
Film Materials:
-
Privacy Material
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Place Machine\ LED Mounter\LED Assembly Machine
-
Application:
-
SMT PCB Assembly Production Line
-
Applicable Components:
-
0402~5050
-
Part number:
-
CL Feeder
-
Usage:
-
LED Tube Large Qty Production
-
Power Supply:
-
AC220V 50Hz / AC110V 60Hz
-
Visual camera:
-
CCD High Definition Camera
-
Payment:
-
T/T
-
Film Materials:
-
Privacy Material

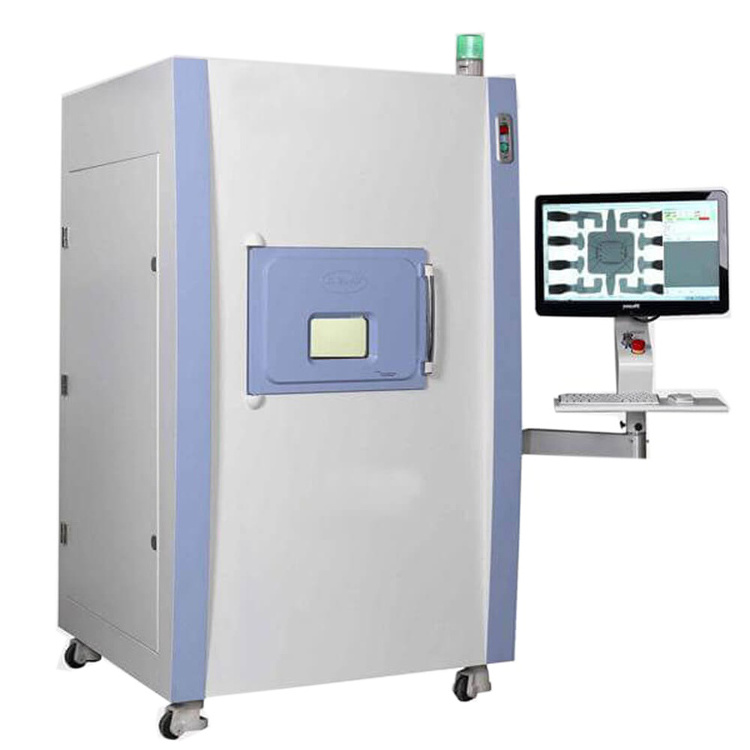

SMD PCB quality X-Ray inspection machine
Applications:
1. Semiconductor: Inner structure of IC, FC, CSP package inspection
2. Aluminum casting relates to cars, bubble &fissure of rubber and resin products inspection
3. Short & open circuit in BGA package, bubble area in BGA inspection and auto-judgment
4. Aerospace and military, aerofoil, bullet etc.
5. Troche in medicine, FRP in chemical products, resin, ceramics.
6. Lithium battery, electronic components (capacitor, resistor, diode & audion, led etc.) inspection
Specification :
|
model |
3500A (X-ray 100KV) |
|
Display |
22" LCD monitor |
|
Image area |
600*415 mm |
|
Image Resolution |
110 LP/CM |
|
CCD Pixel |
1.3 million |
|
Camera Spec |
Image Intensifier+Digital CCD 25 frames/m |
|
Magnification |
120(Geometric )/1200(System) |
|
X-ray Output Voltage |
90 ~ 130 KV |
|
Field of view |
0 ~ 70℃ tilt, 360℃ rotate |
|
Focal Spot |
5 um |
|
X-Ray Tube Type |
Closed tube |
|
Power Supply |
Single phase AC 110~230V/50~60HZ |
|
Weight |
1100KG |
|
Testable Weight |
sample < 5 |
|
Work Table |
X / Y / Z / Q Axis |
|
Manual Operation |
by keyboard/mouse/navigation positioning |
|
CPU |
Intel Pentium |
|
Memory |
2GB |
|
Computer System |
Win7 |
|
Input |
Keyboard |
|
Report Output |
Manual/auto save tested doc |
|
video Function |
Standard |
|
Dimension |
1160*1090*1857 mm |
|
Navigation |
Automatic scanning navigation |
|
3D View |
Imitation |
|
Void, BGA, Distance Inspection |
Auto-inspect function settable |
|
BGA Auto Inspection |
set the counting of BGA inspection,measurement and bubble |
|
Inspection Area |
X / Y plane direction |
|
Special Isolation |
Non |
|
Temperature Humidity |
0-40℃ 0-90% |
|
Suspended matter |
non-conductivity dust |
