Quick Details
-
Dimension(L*W*H):
-
2300*1600*1450
-
Weight:
-
870 KG
-
Product name:
-

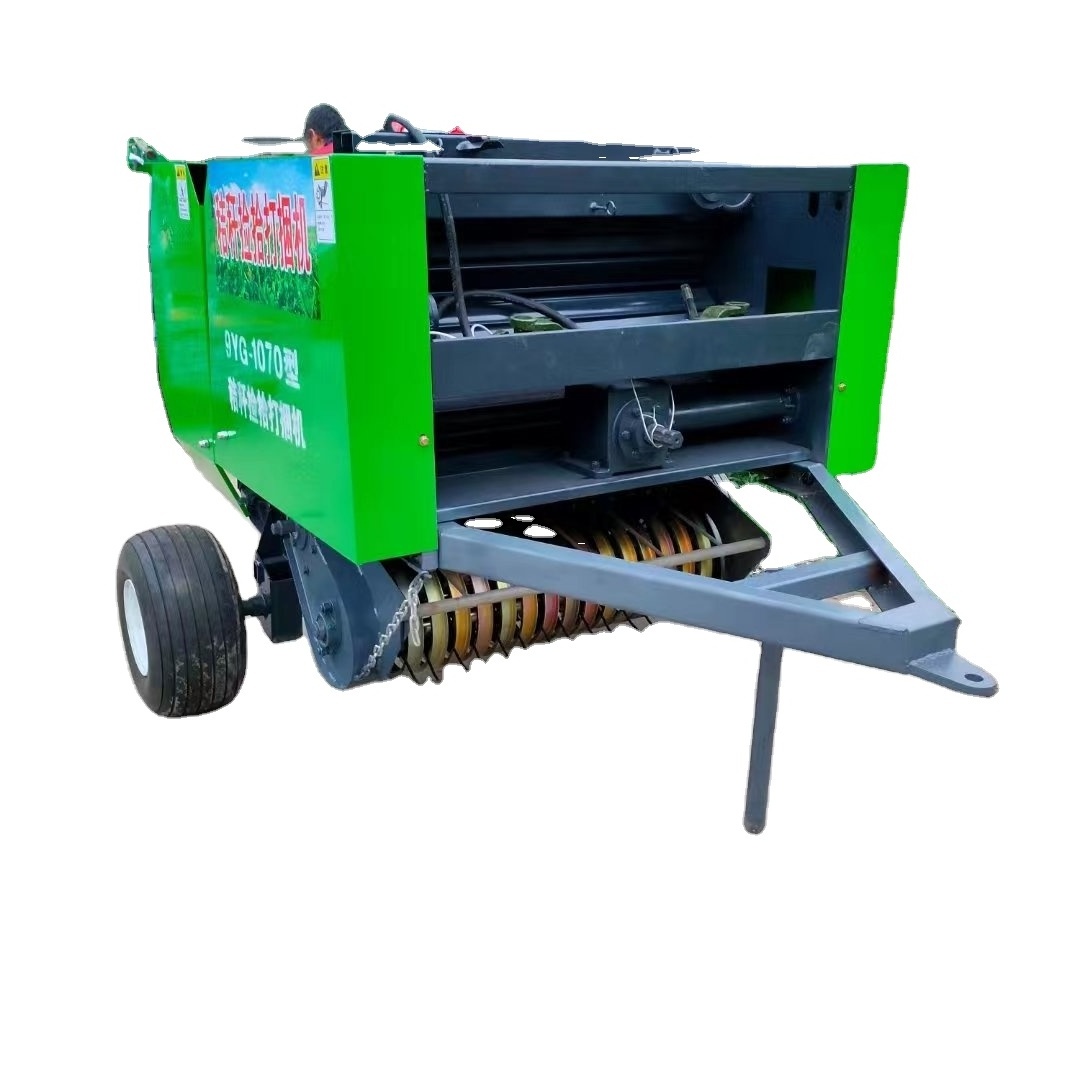

Round Hay Baler
Quick Details
-
Place of Origin:
-
Henan,China
-
Brand Name:
-
Guangmao
-
Application:
-
agricultural
-
Dimension(L*W*H):
-
2300*1600*1450
-
Weight:
-
870 KG
-
Product name:
-
Round Hay Baler
Product Description
Working process of grass baler machine:
1). The power conveyor driven shaft release the power to bundling machine's power-input shaft through universal drive shaft when drive the chain, chain sprocket, and rotary platen system and picking system.
2). The hydraulic power out driving joint control the cylinder piston to enable the bale putting. The baling machine is already adjusted into the suitable height.
3). When the machine is going along with the tractor, the hay is picked into rotary platening chamber and rotating bigger and bigger, then get into very tight round bale.When the density of the bale is Ok , the alarming system will start to sound, driver should stop forwarding, push the threading clutch.
4). When find the speed of threading is faster, loose clutch, keep the Power conveyor driven shaft working to start thread. Driver should pull the hydraulic controlling stick to change the direction of the hydraulic valve, then the cylinder will work and throw the bale out.
5). After throwing the bale out, correct the hydraulic valve, open rear rack to forwarding again for the second cycle.
Raw And Processed Materials
Product Detail
Specification
|
Model
|
GM-1070
|
|
Pick up width
|
1000mm
|
|
Baler size
|
620*950mm
|
|
Drum rotation speed
|
200r/s
|
|
Working speed
|
3-8km/h
|
|
Working efficiency
|
1950-3900km/h
|
|
Density
|
≥115kh/m³
|
|
PTO speed
|
540r/s
|
|
Matched power
|
25-50HP
|
