- Product Details
- {{item.text}}
Quick Details
-
Power Source:
-
Electric
-
Type:
-
ISLAND
-
Housing:
-
Stainless steel
-
Power (W):
-
183
-
Voltage (V):
-
220
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Arcturus
-
Model Number:
-
AG1
-
Chimney:
-

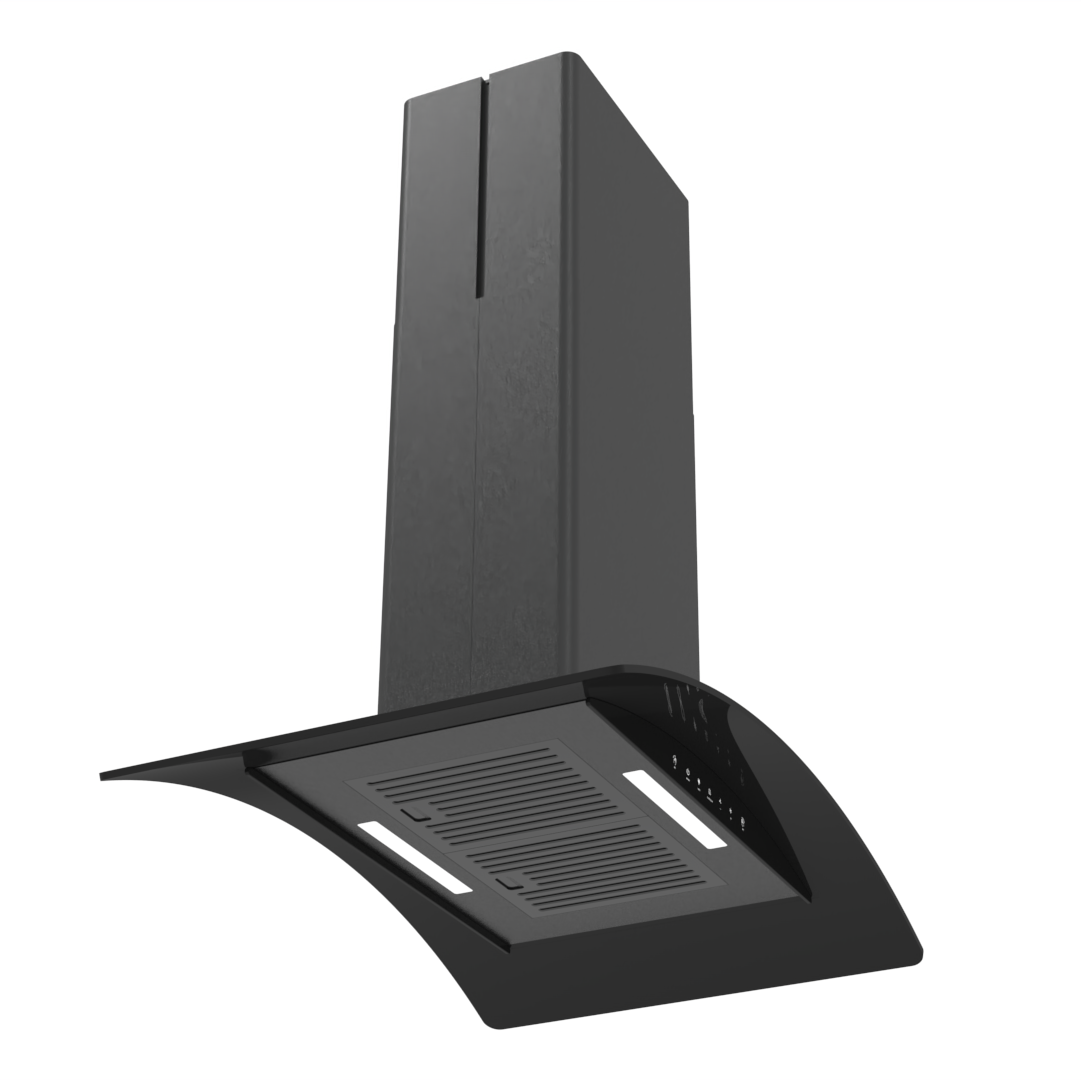

900mm Island Auto dry cleaning range hood
-
Body material:
-
Colled rolled steel & toughened glass
-
Motor:
-
180W Copper motor
-
Switch:
-
Touch & Motion sensor, can design
-
Blower & housing:
-
Metal
-
Clean:
-
Heat auto clean
-
Filter:
-
Baffle filter, can design
-
LED Light:
-
2 or single as required, 3W
-
MOQ:
-
20 ft
-
Certificatation:
-
CB CASO AuSO
Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Warranty:
-
1 Year
-
Application:
-
Hotel, Commercial, Household
-
Power Source:
-
Electric
-
Type:
-
ISLAND
-
Housing:
-
Stainless steel
-
Power (W):
-
183
-
Voltage (V):
-
220
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Arcturus
-
Model Number:
-
AG1
-
Chimney:
-
900mm Island Auto dry cleaning range hood
-
Body material:
-
Colled rolled steel & toughened glass
-
Motor:
-
180W Copper motor
-
Switch:
-
Touch & Motion sensor, can design
-
Blower & housing:
-
Metal
-
Clean:
-
Heat auto clean
-
Filter:
-
Baffle filter, can design
-
LED Light:
-
2 or single as required, 3W
-
MOQ:
-
20 ft
-
Certificatation:
-
CB CASO AuSO
|
Body material
|
cold rolled electrophoresis
|
|
Body thickness
|
0.5 mm
|
|
Motor
|
AC 180 watt (grade 4, insulation class B)
|
|
Switch
|
Touch & Gesture control display switch
|
|
flashlight
|
2*1.5 W 6 beads LED lights, 172mm long
|
|
Capacitor
|
4uF ± 5%, 450V
|
|
Power cable
|
3*0.75mm
2
, 1.8 meters
|
|
Rated voltage
|
220VAC
|
|
Rated frequency
|
50Hz
|
|
Lighting power
|
3W
|
|
Rated total power
|
183 w
|
|
Air volume
|
750 m3/h
|
|
Wind pressure
|
≥172 Pa
|
|
Noise label
|
≤68 dB(A)
|
|
Maximum static pressure
|
≥166.27Pa
|
|
Motor RPM-
|
1050r/min(H)-800r/min(M)-690r/min(L)
|
|
Blower
|
Φ210*90*10mm, electrophoresis black
|
|
Blower housing
|
273*281x115mm
|
|
Filter size
|
301*311mm
|
|
Oil filter net
|
cold rolled, black coated
|
|
Heating Films Size
|
660*60 mm
|
|
Hot dry cleaning
|
65W heating film
|
|
Decorative cover
|
450mm* 315mm
|
|
Outlet seat/pipe
|
Φ150*1500mm aluminum foil pipe
|
|
Oil Cup size and metrial
|
Cold rolled, black coated 601*54*30mm
|
|
Hood size, material and finish
|
450*315*255 for both , with front Insignia
|
|
Spigot Size
|
150*1500mm
|
