Quick Details
-
Model Number:
-
XC-9610
-
Dimension:
-
213x213x165mm
-
Power Supply Mode:
-
DC24V/1A
-
SNR:
-
≥80dB
-
Output Power:
-
≤25W
-
Shell Material:
-
Mental
-
The body material:
-
Mental
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
1.4KG
-
S/N (Signal-to-Noise) Ratio:
-
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ,60Hz~18KHz
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/1A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3/PCM/ADPCM/G711.a/G711.u/G729
-
Maximum SPL:
-
97dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
Key Words:
-
Ceilling Speaker
Quick Details
-
Warranty:
-
2 year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Spon
-
Model Number:
-
XC-9610
-
Dimension:
-
213x213x165mm
-
Power Supply Mode:
-
DC24V/1A
-
SNR:
-
≥80dB
-
Output Power:
-
≤25W
-
Shell Material:
-
Mental
-
The body material:
-
Mental
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
1.4KG
-
S/N (Signal-to-Noise) Ratio:
-
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ,60Hz~18KHz
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/1A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3/PCM/ADPCM/G711.a/G711.u/G729
-
Maximum SPL:
-
97dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
Key Words:
-
Ceilling Speaker
Product Parameters

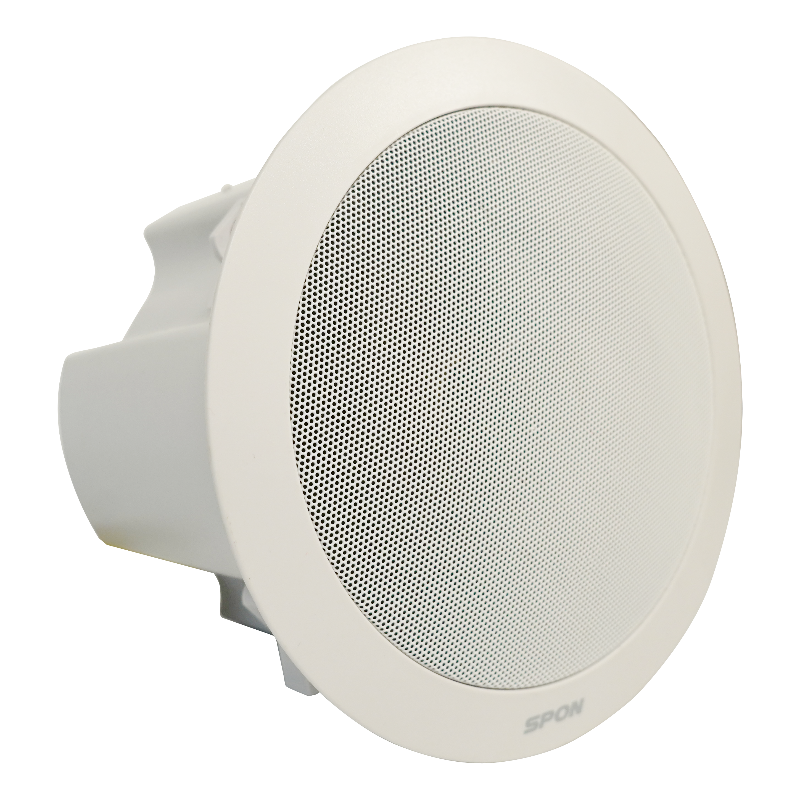

XC-9610 IP PoE Ceilling Speaker
Ideal for voice announcements, background music and emergency notification alerting in office building, hospital hall, restaurant, hotel corridor and other indoor public areas.
Features:
● Easy configuration via user-friendly web interface.
● All-in-one speaker with built-in network audio decoder, class-D digital amplifier and DSP (digital signal processor), ensuring crystal clear voice intelligibility all the time.
● Built-in loop detector for remotely monitoring the speaker’s working condition.
● Integrating the unique feature of “dynamic volume control”, the speaker’s output volume can be automatically adjusted according to the monitored ambient noise level.
● Specific ringtone files can be stored in the FTP server of the speaker and can be played automatically on the loudspeaker as soon as the relay input is triggered, making emergency notification alerting simpler.
● Support PoE (Power over Ethernet).
● Fully compliant 3rd party SIP endpoint, compatible with most mainstream on-premise and cloud/hosted VoIP telephone systems.
● Work with VoIP telephone system for live voice announcements.
● Work with SPON® XC-9000 audio management software for powerful features such as live and scheduled voice announcements, real-time and timed background music, emergency notification alerting, zone paging, etc.
|
Power Supply:
|
DC 24V/1A or PoE (IEEE802.3af)
|
|
|
|
|||
|
Power Consumption:
|
≤25W
|
|
|
|
|||
|
Rated Power Output:
|
20W (at DC 24V/1A powered)
15W (at PoE powered) |
|
|
|
|||
|
Network Protocol:
|
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
|
|
|
|
|||
|
Audio Codec:
|
MP3/PCM/ADPCM/G711.a/G711.u/G729
|
|
|
|
|||
|
Maximum SPL:
|
97dB±3dB
|
|
|
|
|||
|
S/N (Signal-to-Noise) Ratio
|
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ，60Hz～18KHz
|
|
|
|
|||
|
Frequency Response:
|
100Hz-18kHz
|
|
|
|
|||
|
Interface:
|
1×RJ45 Ethernet Port, 1×Power Input
|
|
|
|
|||
|
IP Rating:
|
IP65
|
|
|
|
|||
|
Dimensions:
|
Φ213×165mm
|
|
|
|
|||
|
Weight:
|
1.4kg
|
|
|
|
|||
|
Standard Accessories:
|
1×2-Pin Terminal Block Connector, 1×Installation Manual
|
|
|
|
|||
|
Optional Accessories:
|
DC 24V/1A Power Adapter (US/EU/UK/AU)
|
|
|
|
|||
