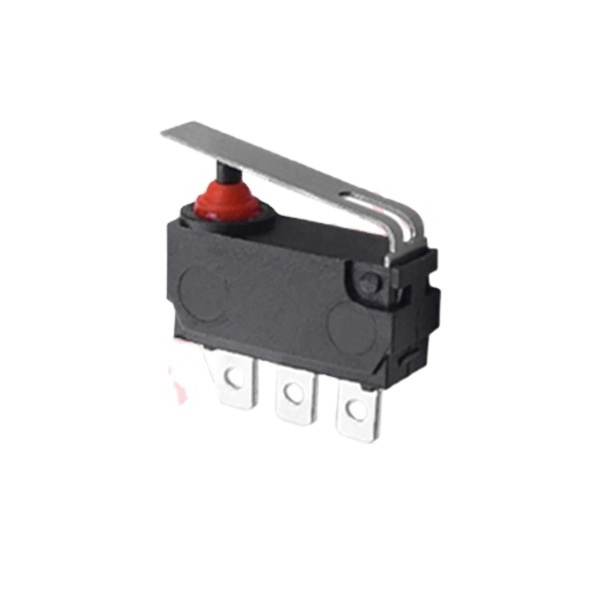

Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unionwell
-
Model Number:
-
G303
-
Electrical Life:
-
Min.100,000cycles
-
Mechanical Life:
-
Min.500,000cycles
-
Function:
-
SPDT (or SPST-NO, NC for option)
-
Lever Type:
-
Straight lever
-
Operating Force:
-
130gf max w/ lever
-
Application:
-
Automation Control
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
3A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unionwell
-
Model Number:
-
G303
-
Electrical Life:
-
Min.100,000cycles
-
Mechanical Life:
-
Min.500,000cycles
-
Function:
-
SPDT (or SPST-NO, NC for option)
-
Lever Type:
-
Straight lever
-
Operating Force:
-
130gf max w/ lever
-
Application:
-
Automation Control
Features
*Design for water and dust tight
*Small compact size
*Global safety approvals
*Long life and high reliability
*Variety of levers
Parameters
|
Rating |
0.1A,125/250VAC;3A/12VDC;0.1A/48VDC |
|
|
Operating Frequency |
Electrical |
0.1A-120cycle s/min ; 3A-10~30cycle s/min |
|
Mechanical |
120cycle s/min |
|
|
Contact Resistance(Initiative) |
100mΩMax |
|
|
Insulation Resistance |
at500VDC,100 m Ω Min |
|
|
Dielectric Strength |
AC 500 V 50-60Hz 1min |
|
|
Vibration Durability |
10~55Hz |
|
|
Storage Temperature
|
-40°C~+85°C |
|
|
Storage Humidity |
85%RH Max |
|
|
Service Life |
Electrical |
Min. 100,000cycles |
|
Mechanical |
Min.500,000cycles |
|
