Quick Details
-
Rated Voltage:
-
66KV
-
Tensile Strength:
-
6-8KN
-
Usage:
-
Electrice Power
-
material:
-
silicon rubber
-
color:
-
gray
-
rod material:
-
fiber glass
-
standard:
-
IEC61109
-
packing:
-
carton
-
OEM production:
-
accept
-
Port:
-
Ningbo, Shanghai
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YIKA
-
Model Number:
-
FZSW-66/6
-
Rated Voltage:
-
66KV
-
Tensile Strength:
-
6-8KN
-
Usage:
-
Electrice Power
-
material:
-
silicon rubber
-
color:
-
gray
-
rod material:
-
fiber glass
-
standard:
-
IEC61109
-
packing:
-
carton
-
OEM production:
-
accept
-
Port:
-
Ningbo, Shanghai

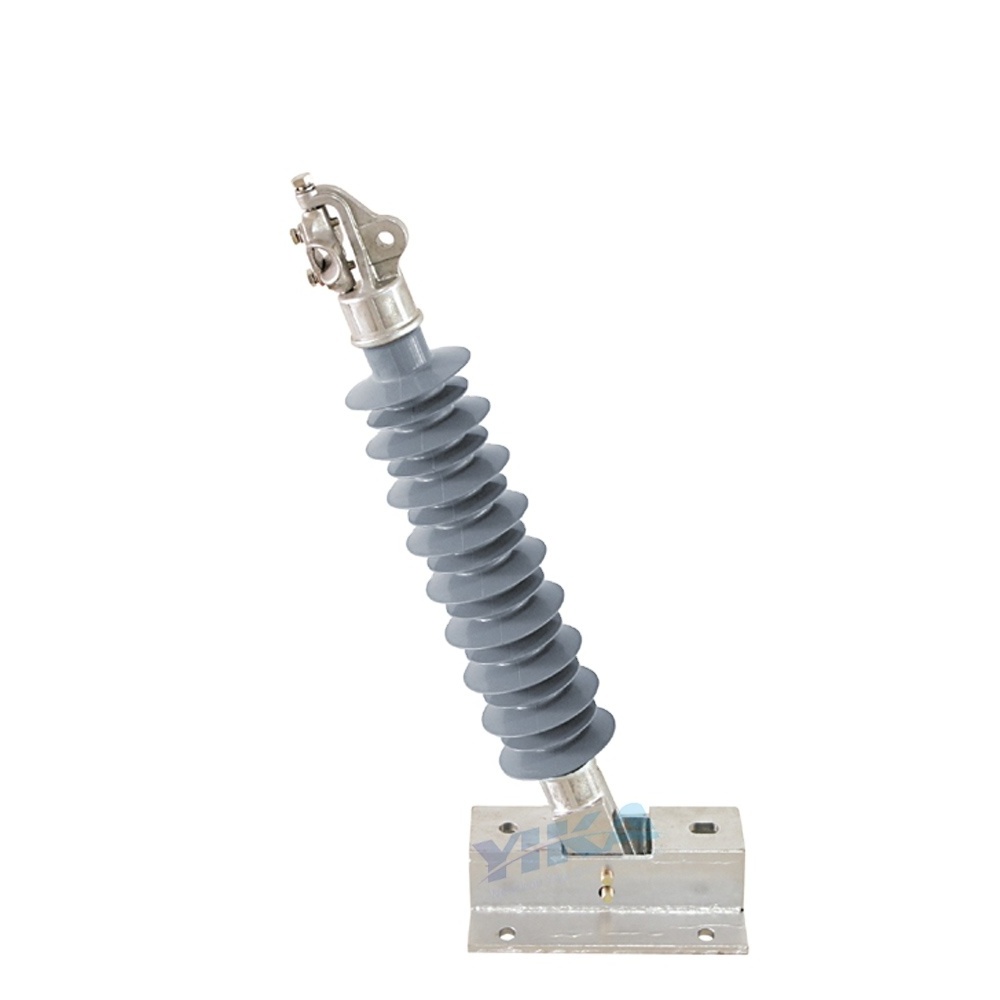

High Voltage Electrical 69KV Composite Line Post Insulators 66KV Pin Silicon Rubber Polymeric Post Insulator
The Composite Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.
The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem – interface electric spark puncture, which would affect the reliability of composite insulator.
Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level, and have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.
This product is reliable structure, can’t damage the core rod, and take full advantage of the mechanical strength.
The dimension can be customized as per client's requirement.
| Technical Specifications: | |||||||
| Model |
Rated
(KV) |
Rated
mechanical load(KN) |
Structure
(mm) |
Min. Arc
(mm) |
Min. Creepage
(mm) |
Lightning impulse
withstand voltage(KV) |
1 min P.F. withstand
(KV) |
| FZSW-66/6 | 66 | 6 | 770 | 650 | 1930 | 325 | 140 |
| FZSW-66/8 | 66 | 8 | 760 | 630 | 1940 | 325 | 140 |
