Quick Details
-
Model Number:
-
JERI
-
Brand Name:
-
JERI
-
Product name:
-
rubber disc check valve
-
Standard or Nonstandard:
-
Standard
-
Body material:
-
Ductile Iron
-
Size:
-
DN50mm-DN400mm
-
Pressure:
-
PN10, PN16
-
Ambient temperature:
-
<80℃
-
Media::
-
water
-
Connection method:
-
flange
-
Flange standards:
-
GOST,ANSI, GB,DIN,JIS
-
Type:
-
Metal Check Valves
Quick Details
-
Port Size:
-
DN50mm-DN400mm
-
Warranty:
-
1 year
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
JERI
-
Brand Name:
-
JERI
-
Product name:
-
rubber disc check valve
-
Standard or Nonstandard:
-
Standard
-
Body material:
-
Ductile Iron
-
Size:
-
DN50mm-DN400mm
-
Pressure:
-
PN10, PN16
-
Ambient temperature:
-
<80℃
-
Media::
-
water
-
Connection method:
-
flange
-
Flange standards:
-
GOST,ANSI, GB,DIN,JIS
-
Type:
-
Metal Check Valves

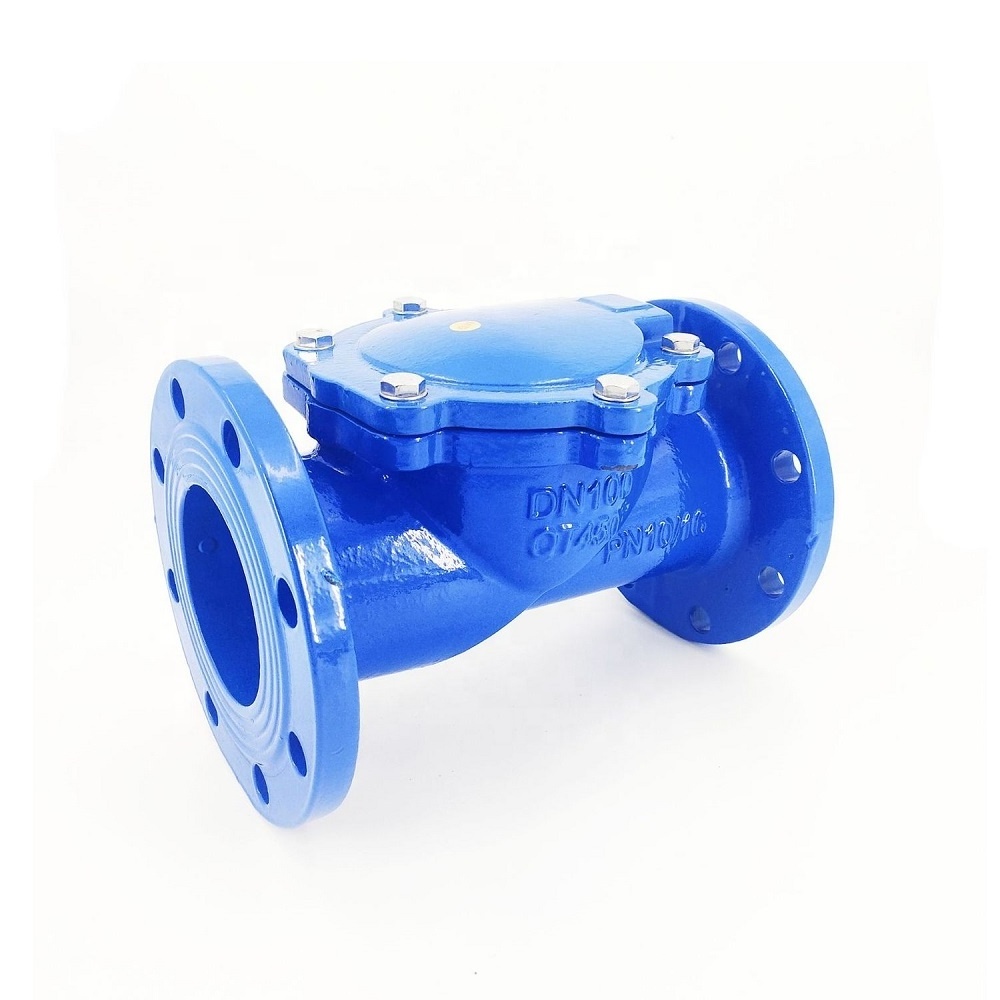

rubber disc check valve
Product lntroduction：
The seal ring of rubber disc check valve is designed as lean to shorten the closing time and reduce the pressure caused by water hammer. Valve disc is made of acrylonitrile-butadiene rubber and steel plate by pressing under high temperature. The advantages of check valve include wash-out resistance, reliable seal, simple structure and convenient utilization.
Rubber disc check valve, consisting of body, bonnet,disc and spring, is mainly used at the exit of pipe in petroleum, chemical engineering and other industries.
Material：Ductile Iron
Disc：Steel + Rubber
Reinforcement Fabric：Nylon
Connection Form：Flange
Structure：Swing
Function：Sfcv Rubber Lobe
Size Range : DN40-400MM
Ratings : PN10, PN16
Applicable Temperature(℃) :<80
Applicable Medium :water
quality control
Strictly control each process and conduct 100% testing before leaving the factory
