Quick Details
-
Brand Name:
-
S4A
-
Model Number:
-
S601EM-W rfid metal door access control system
-
Type:
-
EM 125KHZ CARD + PIN CODE
-
S601EM-W:
-
rfid metal door access control system
-
Waterproof:
-
conforms to IP68(S601-W)
-
users:
-
2000
-
Access ways:
-
cards, code, card+code.
-
Card type:
-
125KHZ EM card
-
Unit Weight:
-
500g
-
Shipping Weight:
-
650g
-
Read Range:
-
3~8cm
-
size:
-
118*56*20mm
-
cards:
-
2000
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Customized support:
-
Customized logo
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
S4A
-
Model Number:
-
S601EM-W rfid metal door access control system
-
Type:
-
EM 125KHZ CARD + PIN CODE
-
S601EM-W:
-
rfid metal door access control system
-
Waterproof:
-
conforms to IP68(S601-W)
-
users:
-
2000
-
Access ways:
-
cards, code, card+code.
-
Card type:
-
125KHZ EM card
-
Unit Weight:
-
500g
-
Shipping Weight:
-
650g
-
Read Range:
-
3~8cm
-
size:
-
118*56*20mm
-
cards:
-
2000
water proof rfid metal door access control system wiegand26 rfid card reader access control keypad

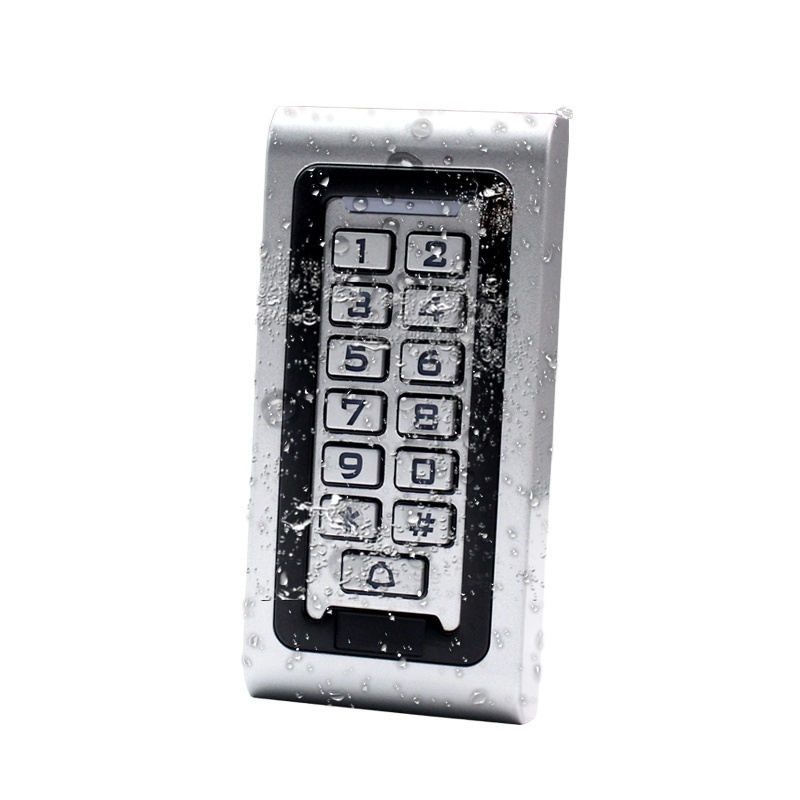

S601EM-W : Waterproof metal button EM 125khz
The product is a Contactless inductive card Metal Password Access Controller,According to the model, respectively support EM cards(MF optional), It is one of the most advanced stands alone access controller.
It uses a unique metal exterior design, Dexterity keyboard panel operation, Built-in high-grade microprocessors, Strong anti-interference ability, Safety, and reliability are extremely high, can provide powerful security for 2,000 users.
It has strong functions, such as low power consumption, Luminous keyboard, independent passwords, Wiegand output, the output short circuit protection, door magnetic alarm, prevent demolition alarm, exit button, the doorbell interface, level of security Settings, etc. widely used in home, office, residential area, and other public places.
Perfect design, with backlight and fashion silver finish.
Waterproof design for outdoor use.
A strong standalone function device can be used as a WG26 reader alone.
Capacity: 2000 user's cards, 2000 codes.
Access ways: cards, code, card+code.
Low power: static current less than 30mA
Support the only keypad.
Users can reset private passwords.
Search fast less than 0.1S.
Wiegand output W26 for card and w4 for codes.
Use the keypad to delete lost cards for safety.
Short-circuit protect: when relay or alarm output short circuit, it will shut up output in 100μS.
|
Specification |
|
|
Card type |
EM 125khz (MF 13.56MHZ optional) |
|
Waterproof degree |
Non-Waterproof(S601) / IP68(S601-W) |
|
User capacity |
2000 card user card, 2000 user password |
|
Environment Humidity |
10%~90% |
|
Lock output |
≤3A |
|
Working voltage |
DC12V±10% |
|
Static electricity |
≤30mA |
|
Alarm output |
≤20A |
|
Output short circuit protection time |
≤100μS |
|
Card read distance |
5~8cm |
|
Ambient temperature |
-45℃~60℃ |
|
Door Opening Time |
0~99s(Adjustable) |
|
Dimension |
120*56*18mm |
|
